Export DataBar, ColorScale and IconSet Conditional Formatting while Excel to HTML Conversion with JavaScript via C++

Export DataBar, ColorScale and IconSet Conditional Formatting while Excel to HTML Conversion

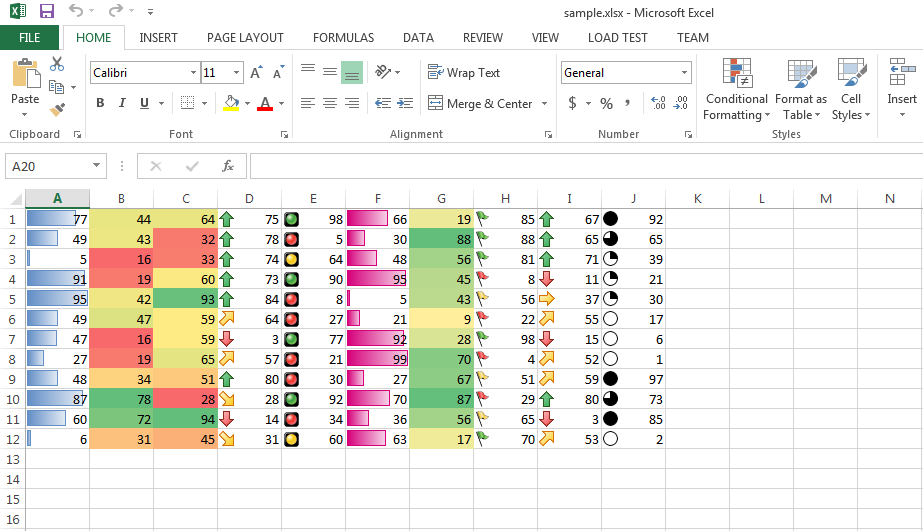

The following screenshot shows the sample excel file with DataBar, ColorScale and IconSet Conditional Formatting. You can download the sample excel file from the given link.

todo:image_alt_text

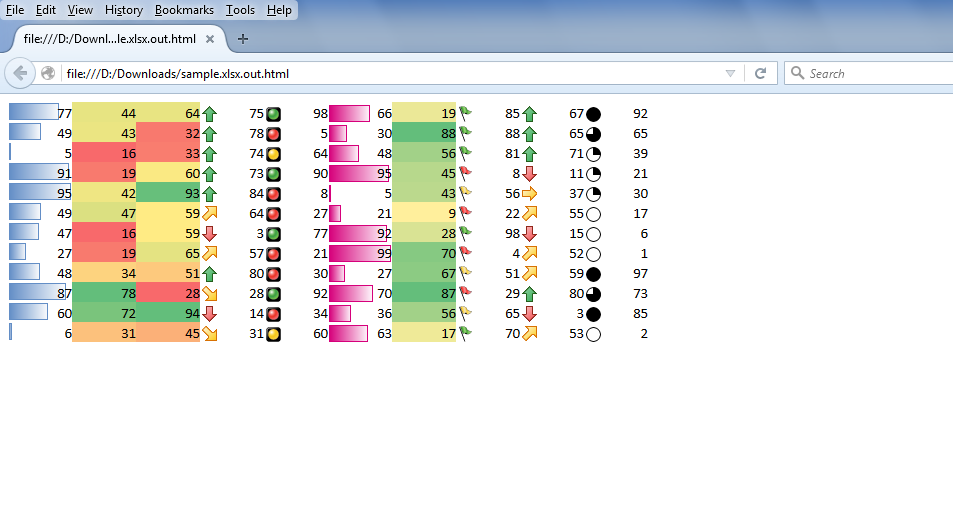

The following screenshot shows the Aspose.Cells output HTML file showing DataBar, ColorScale and IconSet Conditional Formatting. As you can see, it looks exactly like sample excel file.

todo:image_alt_text

Sample Code

The following sample code converts the sample excel file into HTML which is just a normal Excel to HTML conversion.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Converting Excel to HTML Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Load your sample excel file in a workbook object
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Save it in HTML format
            const outputData = workbook.save(SaveFormat.Html);

            const blob = new Blob([outputData], { type: 'text/html' });
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'ConvertingToHTMLFiles_out.html';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download HTML File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Conversion completed successfully! Click the download link to get the HTML file.</p>';
        });
    </script>
</html>
