Filtering the kind of data while loading the workbook from template file with JavaScript via C++

Contents
[ ]

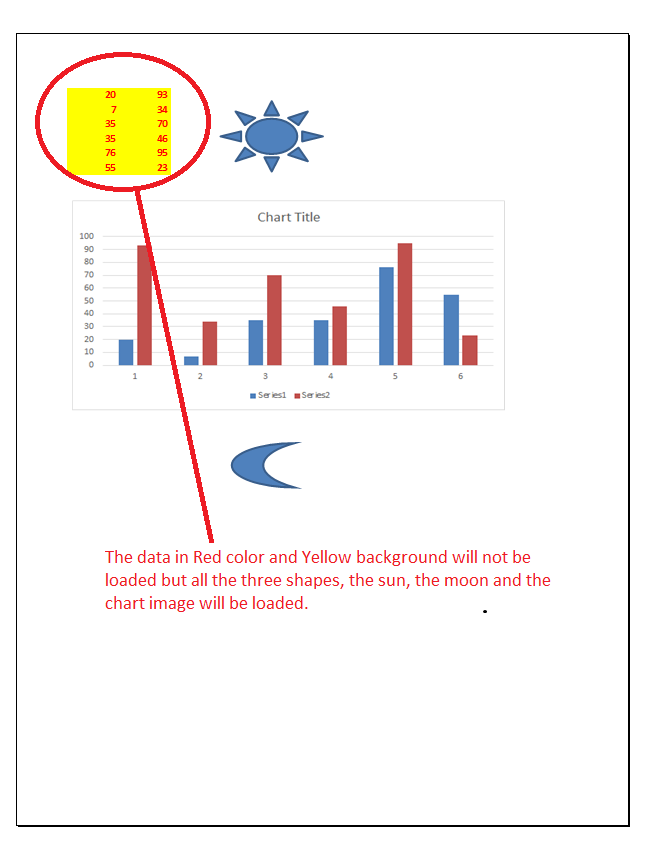

The following sample code loads only shape objects while loading the workbook from the template file which you can download from the given link. The following screenshot shows the template file contents and also explains that the data in Red color and Yellow background will not be loaded because LoadOptions.loadFilter property has been set to Shape

todo:image_alt_text

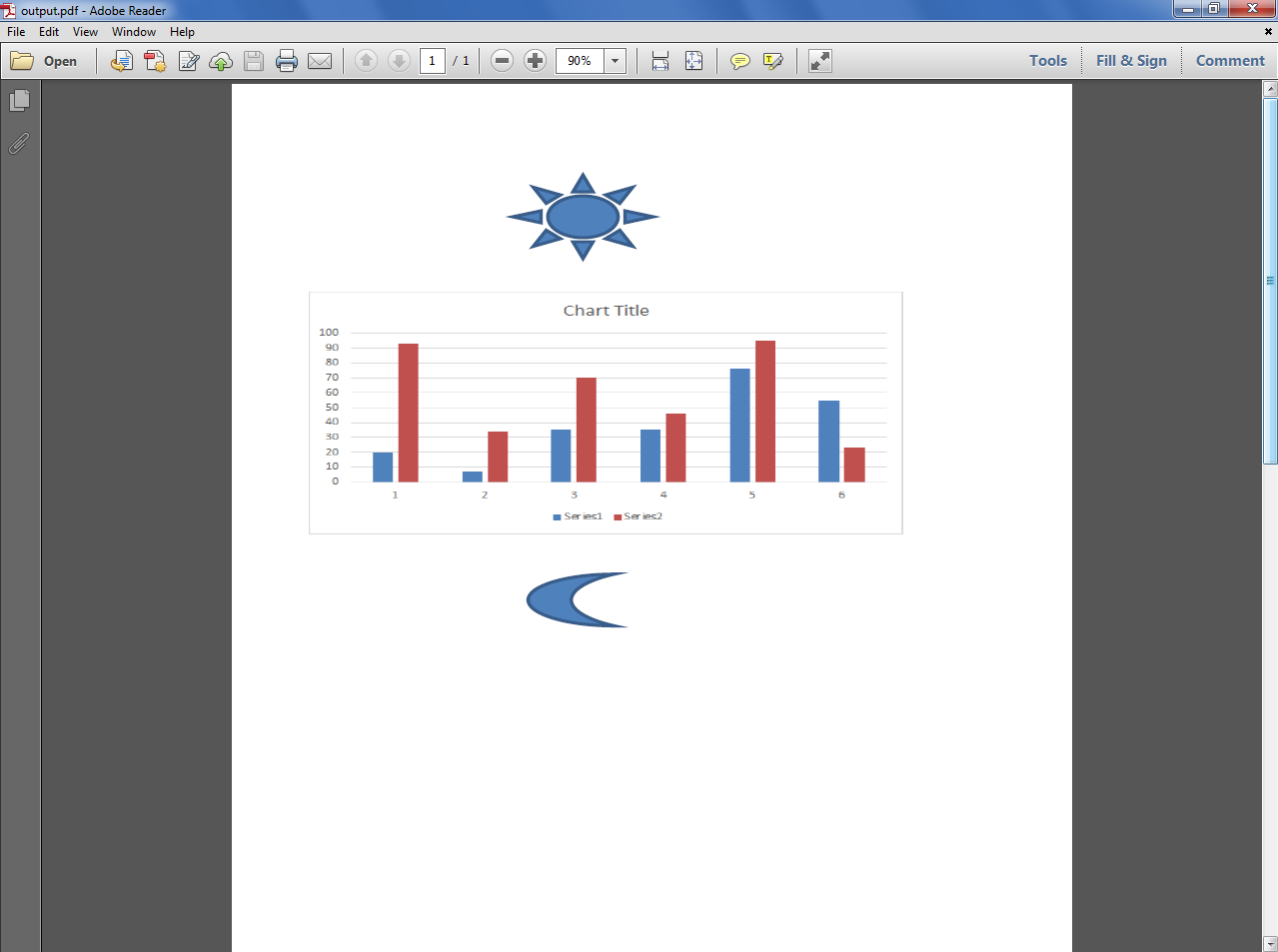

The following screenshot shows the output PDF which you can download from the given link. Here you can see, the data in Red color and Yellow background is not present but all shapes are there.

todo:image_alt_text

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Aspose.Cells Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, LoadOptions, LoadFormat, LoadFilter, LoadDataFilterOptions, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Set the load options, we only want to load shapes and do not want to load data
            const loadOptions = new LoadOptions(LoadFormat.Xlsx);
            loadOptions.loadFilter = new LoadFilter(LoadDataFilterOptions.All & ~LoadDataFilterOptions.Chart);

            // Create workbook object from uploaded excel file using load options
            const workbook = new Workbook(new Uint8Array(arrayBuffer), loadOptions);

            // Save the output in pdf format
            const outputData = workbook.save(SaveFormat.Pdf);
            const blob = new Blob([outputData], { type: 'application/pdf' });
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'sampleFilterChars_out.pdf';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Result PDF';

            document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the PDF file.</p>';
        });
    </script>
</html>
