Formatting Slicer with JavaScript via C++

Possible Usage Scenarios

You can format the slicer in Microsoft Excel by setting its number of columns or by setting its style etc. Aspose.Cells for JavaScript via C++ also allows you to do this using the Slicer.numberOfColumns and Slicer.styleType properties.

Formatting Slicer

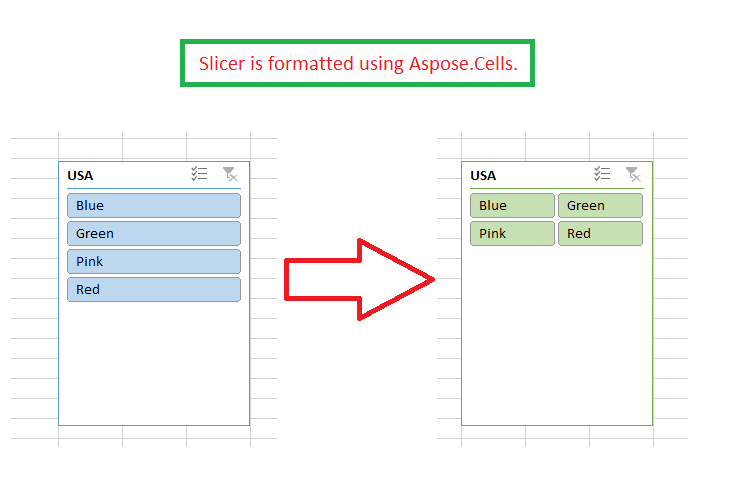

Please see the following code, it loads the sample Excel file that contains a slicer. It accesses the slicer and sets its number of columns and style type and saves it as output Excel file. The screenshot shows how the slicer looks after the execution of the sample code.

todo:image_alt_text

Sample Code

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Slicer Formatting Example</title>
    </head>
    <body>
        <h1>Slicer Formatting Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiate Workbook from uploaded file
            const wb = new Workbook(new Uint8Array(arrayBuffer));

            // Access first worksheet
            const ws = wb.worksheets.get(0);

            // Access the first slicer inside the slicer collection
            const slicer = ws.slicers.get(0);

            // Set the number of columns of the slicer
            slicer.numberOfColumns = 2;

            // Set the type of slicer style
            slicer.styleType = AsposeCells.SlicerStyleType.SlicerStyleLight6;

            // Save the workbook in output XLSX format
            const outputData = wb.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'outputFormattingSlicer.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Slicer formatting updated successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>
