Get or Set the Class Identifier of the Embedded OLE Object with JavaScript via C++

Possible Usage Scenarios

Aspose.Cells provides the OleObject.classIdentifier property which you can use to get or set the class identifier of an embedded OLE object. OLE object class identifiers are actually GUIDs i.e., Globally Unique Identifiers. GUID is always 16 bytes long; therefore, class identifiers are also 16 bytes long. They are often found inside the Windows Registry and provide information to the host application about how to open embedded OLE objects containing various embedded resources inside the client application.

Get or Set the Class Identifier of the Embedded OLE Object

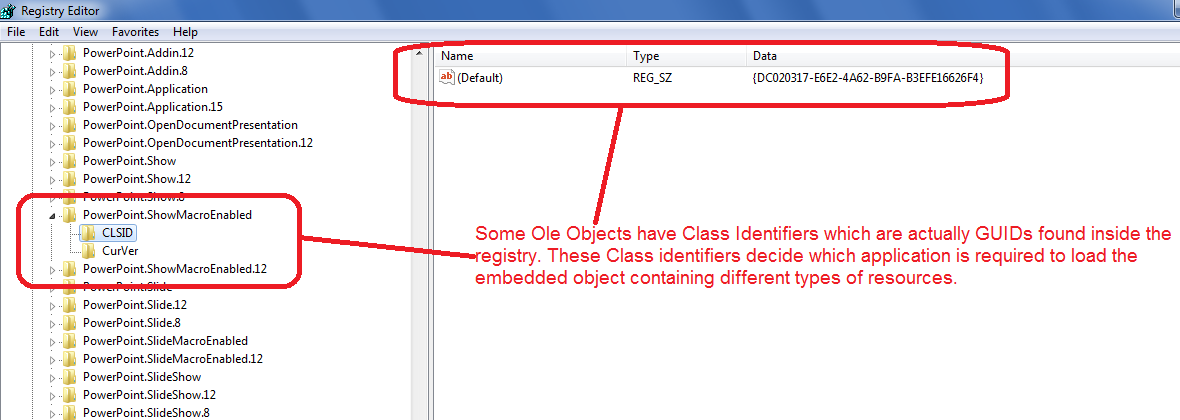

The following screenshot shows the OLE object class identifier i.e., GUID which has been read from the sample Excel file containing the embedded PowerPoint OLE object.

todo:image_alt_text

Sample Code

Please see the following sample code executed with sample Excel file and its console output which prints the class identifier of the OLE object i.e., GUID. The printed GUID is exactly the same as shown inside the screenshot.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Extract OLE Object Class Identifier (GUID)</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            const resultDiv = document.getElementById('result');

            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object from the uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Access its first worksheet
            const worksheet = workbook.worksheets.get(0);

            // Access first ole object inside the worksheet
            const oleObject = worksheet.oleObjects.get(0);

            // Convert 16-bytes array into GUID
            const bytes = new Uint8Array(oleObject.classIdentifier);
            const guid = bytes.reduce((acc, byte) => acc + String.fromCharCode(byte), '');

            // Print the GUID
            console.log(guid.toUpperCase());
            resultDiv.innerHTML = `<p style="color: green;">GUID: ${guid.toUpperCase()}</p>`;
        });
    </script>
</html>

Console Output

This is the console output of the above sample code when executed with the sample Excel file.


 DC020317-E6E2-4A62-B9FA-B3EFE16626F4
