Get the Cell object by DisplayName of PivotField of PivotTable

Aspose.Cells for JavaScript via C++ provides PivotTable.cellByDisplayName(string) method which you can use to access the cell object by display name of pivot field. This method is useful when you want to highlight or format your pivot field header. This article explains how to retrieve the cell object by the display name of data field and then apply formatting to it.

How to Get the Cell object by DisplayName of PivotField of PivotTable

The following code accesses the first pivot table of the worksheet and then get cell by display name of second data field of the pivot table. It then changes the fill color and font color of the cell to light blue and black respectively. Below screenshots show how the pivot table looks before and after the execution of the code.

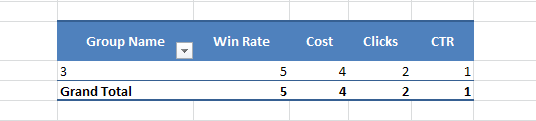

Pivot Table - Before

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Aspose.Cells Pivot Table Cell Styling Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const resultDiv = document.getElementById('result');
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object from the uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Access first worksheet
            const worksheet = workbook.worksheets.get(0);

            // Access first pivot table inside the worksheet
            const pivotTable = worksheet.pivotTables.get(0);

            // Access cell by display name of 2nd data field of the pivot table
            const dataFieldDisplayName = pivotTable.dataFields.get(1).displayName;
            const cell = pivotTable.cellByDisplayName(dataFieldDisplayName);

            // Access cell style and set its fill color and font color
            const style = cell.style;
            style.foregroundColor = AsposeCells.Color.LightBlue;
            style.font.color = AsposeCells.Color.Black;

            // Set the style of the cell
            pivotTable.format(cell.row, cell.column, style);

            // Saving the modified Excel file
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output_out.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            resultDiv.innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>

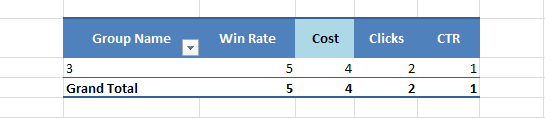

Pivot Table - After
