Grouping and Ungrouping Rows and Columns with JavaScript via C++

Introduction

In a Microsoft Excel file, you can create an outline for the data to let you show and hide levels of detail with a single mouse click.

Click the Outline Symbols, 1,2,3, + and - to quickly display only the rows or columns that provide summaries or headings for sections in a worksheet, or you can use the symbols to see details under an individual summary or heading as shown below in the figure:

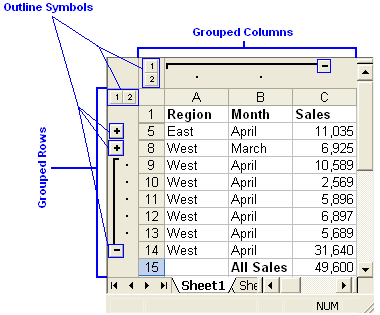

Grouping Rows and Columns.
todo:image_alt_text

Group Management of Rows and Columns

Aspose.Cells provides a class, Workbook that represents a Microsoft Excel file. The Workbook class contains a WorksheetCollection that allows access to each worksheet in the Excel file. A worksheet is represented by the Worksheet class. The Worksheet class provides a Cells collection that represents all cells in the worksheet.

The Cells collection provides several methods to manage rows or columns in a worksheet, few of these are discussed below in more detail.

Grouping Rows and Columns

It is possible to group rows or columns by calling the groupRows(number, number, boolean) and groupColumns(number, number) methods of the Cells collection. Both methods take the following parameters:

  • First row/column index, the first row or column in the group.
  • Last row/column index, the last row or column in the group.
  • Is hidden, a Boolean parameter that specifies whether to hide rows/columns after grouping or not.
<!DOCTYPE html>
<html>
    <head>
        <title>Group Rows and Columns Example</title>
    </head>
    <body>
        <h1>Group Rows and Columns Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();
            const workbook = new Workbook(new Uint8Array(arrayBuffer));
            const worksheet = workbook.worksheets.get(0);

            worksheet.cells.groupRows(0, 5, true);
            worksheet.cells.groupColumns(0, 2, true);

            const outputData = workbook.save(SaveFormat.Excel97To2003);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output.xls';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Rows and columns grouped successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>

Group Settings

Microsoft Excel allows you to configure group settings for displaying:

  • Summary rows below detail.
  • Summary columns to the right of detail.

Developers can configure these group settings using the outline property of the Worksheet class.

Summary Rows to Below of Detail

It is possible to control whether summary rows are displayed below detail by setting the Outline class' summaryRowBelow property to true or false.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
        <meta charset="utf-8" />
    </head>
    <body>
        <h1>Aspose.Cells Example - Group Rows/Columns and Set Outline</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            const resultDiv = document.getElementById('result');

            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object from the uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Accessing the first worksheet in the Excel file
            const worksheet = workbook.worksheets.get(0);

            // Grouping first six rows and first three columns
            worksheet.cells.groupRows(0, 5, true);
            worksheet.cells.groupColumns(0, 2, true);

            // Setting SummaryRowBelow property to false
            worksheet.outline.summaryRowBelow = false;

            // Saving the modified Excel file (Excel97To2003 -> .xls)
            const outputData = workbook.save(SaveFormat.Excel97To2003);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output.xls';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            resultDiv.innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>

Summary Columns to Right of Detail

Developers can also control displaying summary columns to the right of detail by setting the summaryColumnRight property of Outline class to true or false.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Group Rows and Columns Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object from uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Accessing the first worksheet in the Excel file
            const worksheet = workbook.worksheets.get(0);

            // Grouping first six rows and first three columns
            worksheet.cells.groupRows(0, 5, true);
            worksheet.cells.groupColumns(0, 2, true);

            // Set summary column to right
            worksheet.outline.summaryColumnRight = true;

            // Saving the modified Excel file (Excel 97-2003 format)
            const outputData = workbook.save(SaveFormat.Excel97To2003);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output.xls';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>

Ungrouping Rows and Columns

To ungroup any grouped rows or columns, call the Cells collection’s ungroupRows(number, number, boolean) and ungroupColumns(number, number) methods. Both methods take two parameters:

  • First row or column index, the first row/column to be ungrouped.
  • Last row or column index, the last row/column to be ungrouped.

ungroupRows(number, number, boolean) has an overload that takes a Boolean third parameter. Setting it to true removes all grouped information. Otherwise, only the outer group information is removed.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Ungroup Rows and Columns Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object with file content
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Accessing the first worksheet in the Excel file
            const worksheet = workbook.worksheets.get(0);

            // Ungrouping first six rows (from 0 to 5)
            worksheet.cells.ungroupRows(0, 5);

            // Ungrouping first three columns (from 0 to 2)
            worksheet.cells.ungroupColumns(0, 2);

            // Saving the modified Excel file
            const outputData = workbook.save(SaveFormat.Excel97To2003);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output.xls';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>
