Handle Automatic Units of Chart Axis like Microsoft Excel with JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios
Early versions of Aspose.Cells for JavaScript via C++ were not able to handle automatic units of the chart axis properly when the chart is rendered to image or PDF. Now, Aspose.Cells for JavaScript via C++ supports the handling of automatic units of the chart axis. There is no code change. Just convert your chart into an image or PDF and it will render the chart axis just like Microsoft Excel renders it.
Handle Automatic Units of Chart Axis like Microsoft Excel

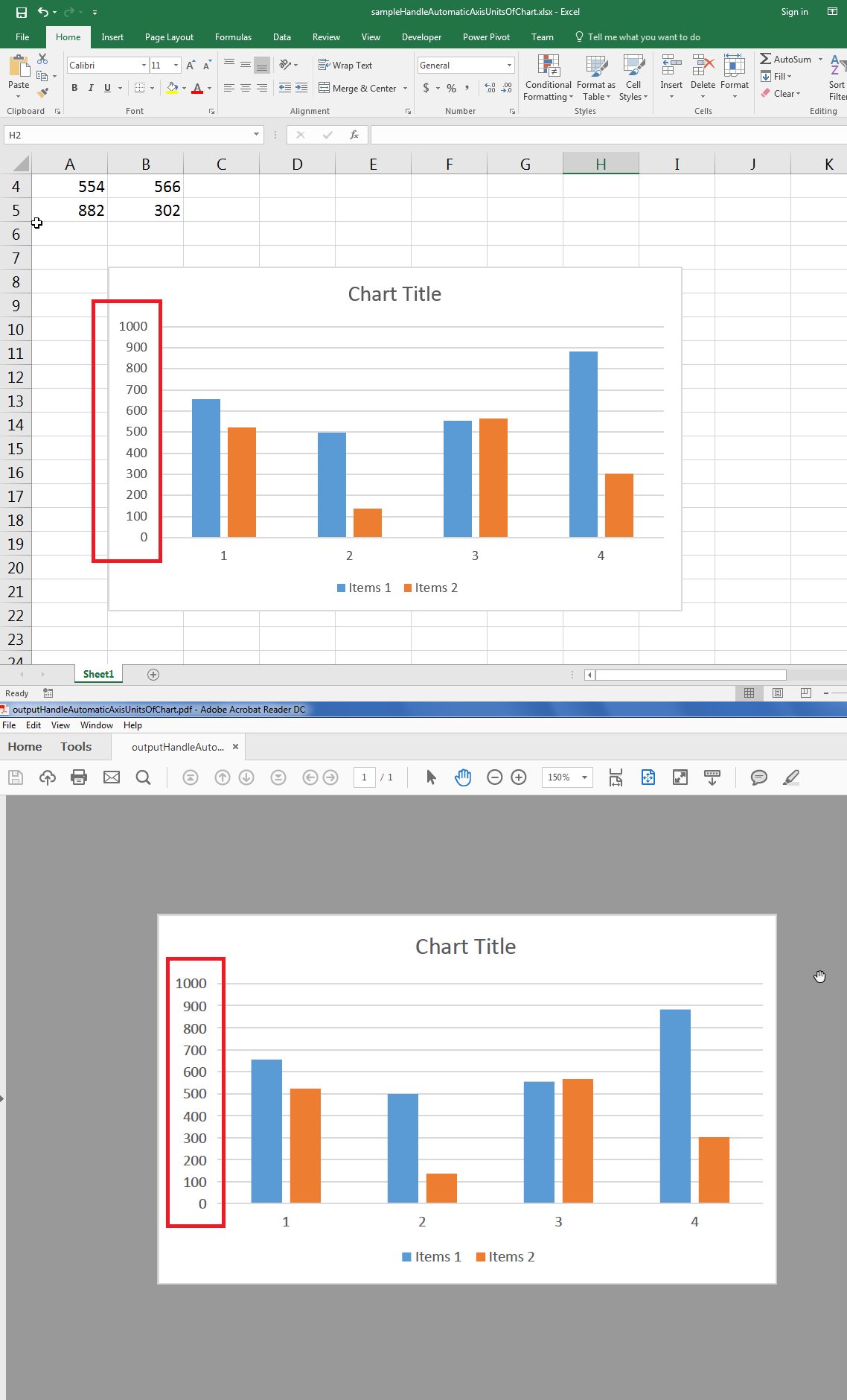

The following sample code loads the sample Excel file and generates the output PDF chart. The screenshot shows the automatic units of the chart axis in red rectangles and also compares the sample Excel file chart with the output PDF chart. Both are exactly similar.
Sample Code
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Handle Automatic Units Of Chart Axis Like Microsoft Excel</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
const readyPromise = AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
await readyPromise;
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object using the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet
const worksheet = workbook.worksheets.get(0);
// Access first chart
const chart = worksheet.charts.get(0);
// Render chart to pdf
const outputData = await chart.toPdf();
// Create download link for the generated PDF
const blob = new Blob([outputData], { type: 'application/pdf' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputHandleAutomaticUnitsOfChartAxisLikeMicrosoftExcel.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
document.getElementById('result').innerHTML = '<p style="color: green;">Chart rendered to PDF successfully! Click the download link to get the PDF file.</p>';
});
</script>
</html>
