How to Print Excel as Fitted Pages Wide and Tall with JavaScript via C++
Contents
[
Hide
]
Introduction
The FitToPagesWide and FitToPagesTall settings are used in spreadsheet applications (like Microsoft Excel) to control how a spreadsheet is scaled when printing. These settings help ensure that your printed output fits within a specified number of pages, both horizontally and vertically. Here’s a breakdown of each setting:
- FitToPagesWide: This setting specifies the number of pages wide that the printed output should fit into. For example, setting FitToPagesWide to 1 means the content will be scaled to fit within a single page width, no matter how wide the spreadsheet is.
- FitToPagesTall: This setting specifies the number of pages tall that the printed output should fit into. For example, setting FitToPagesTall to 1 means the content will be scaled to fit within a single page height, regardless of the number of rows.
Why Use FitToPagesWide and FitToPagesTall
Here are some reasons to set FitToPagesWide and FitToPagesTall:
- Control Over Printed Layout: By specifying the number of pages wide and tall, you can ensure that your printed document is easy to read and well-organized, without any columns or rows being split awkwardly across pages.
- Consistency: If you’re printing multiple sheets or reports, using these settings helps maintain a consistent format, making it easier to compare and analyze printed documents.
- Professional Presentation: Properly scaling and fitting content to a specified number of pages can result in a more professional and polished presentation of your data.
How to Print File as Fitted Pages Wide and Tall in Excel

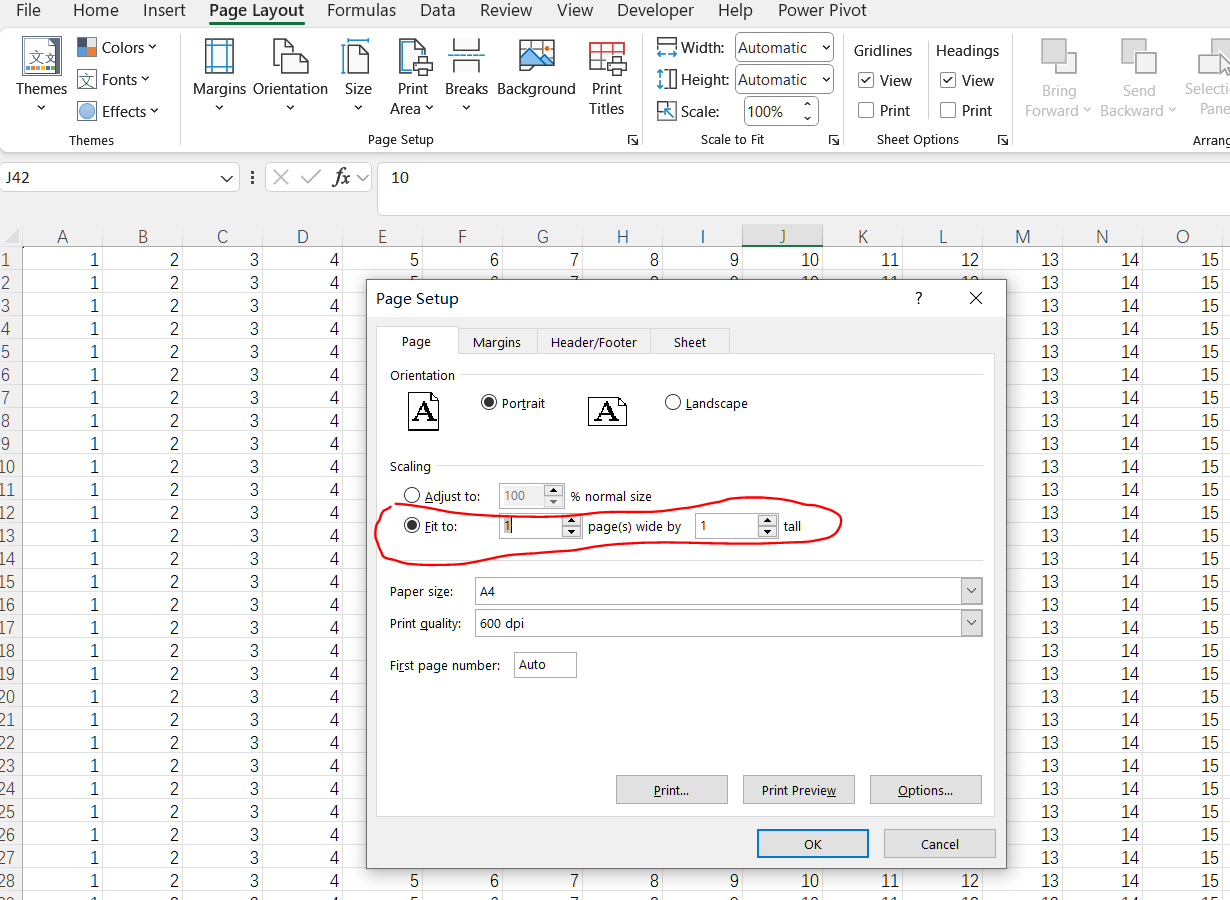

To set the FitToPagesWide and FitToPagesTall settings in Microsoft Excel, follow these steps:
-
Open your Excel workbook and go to the sheet you want to print.
-
Go to the Page Layout tab on the Ribbon.
-
In the Page Setup group, click the small arrow in the bottom-right corner to open the Page Setup dialog box.
-
In the Page Setup dialog box, go to the Page tab.
-
Under Scaling, select the option “Fit to” and then specify the number of pages wide and tall you want: Enter the number of pages wide you want in the first box (Fit to x pages wide). Enter the number of pages tall you want in the second box (Fit to y pages tall).
-
Click OK to apply the settings.
How to Print Excel as Fitted Pages Wide and Tall Using Aspose.Cells for JavaScript via C++
To set FitToPagesWide and FitToPagesTall in a specified worksheet: First, load the sample file, and then you need to modify the PageSetup.fitToPagesTall and PageSetup.fitToPagesWide properties of the PageSetup object for the desired worksheet. Here is an example in JavaScript:
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Set Worksheet Fit To Pages and Save as PDF</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Accessing the first worksheet in the Excel file
const worksheet = workbook.worksheets.get(0);
// Setting the number of pages to which the length of the worksheet will be spanned
worksheet.pageSetup.fitToPagesTall = 1;
// Setting the number of pages to which the width of the worksheet will be spanned
worksheet.pageSetup.fitToPagesWide = 1;
// Saving the workbook as PDF
const outputData = workbook.save(SaveFormat.Pdf);
const blob = new Blob([outputData], { type: 'application/pdf' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'out_net.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the PDF file.</p>';
});
</script>
</html>

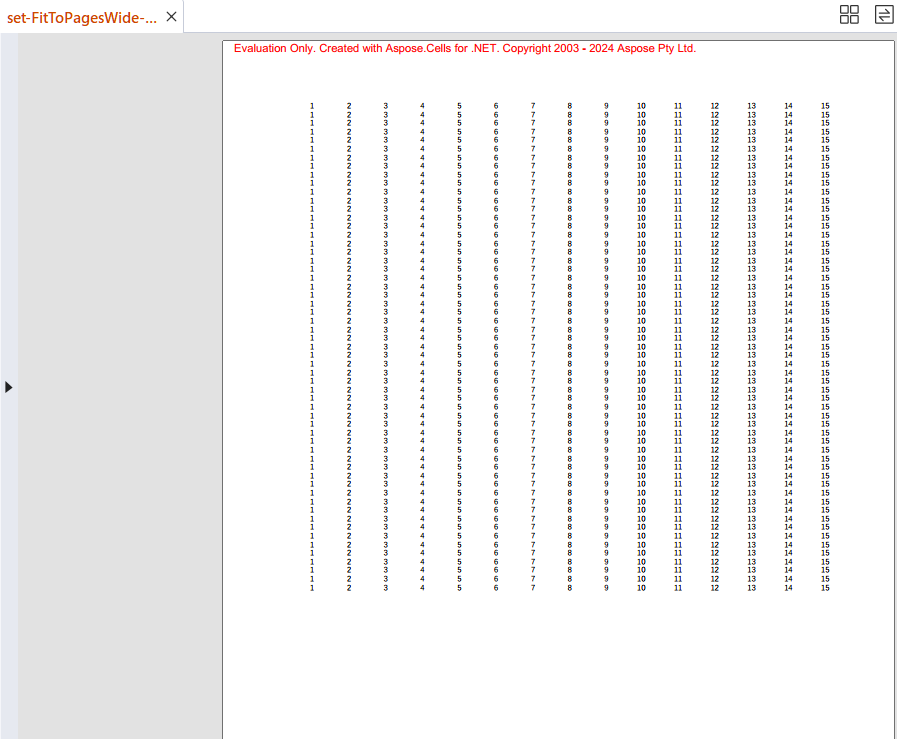

The output result:
How to Print Worksheet as One Page Using Aspose.Cells for JavaScript via C++
To print Worksheet as one page: First, load the sample file, and then you need to set the PdfSaveOptions.onePagePerSheet property of the PdfSaveOptions object. Here is an example in JavaScript:
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>One Page Per Sheet to PDF Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, PdfSaveOptions, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Loads the workbook which contains hidden external links
const workbook = new Workbook(new Uint8Array(arrayBuffer));
const options = new PdfSaveOptions();
options.onePagePerSheet = true;
// Save the workbook to PDF format and provide download link
const outputData = workbook.save(SaveFormat.Pdf, options);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'OnePagePerSheet.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
document.getElementById('result').innerHTML = '<p style="color: green;">PDF created successfully! Click the download link to get the file.</p>';
});
</script>
</html>

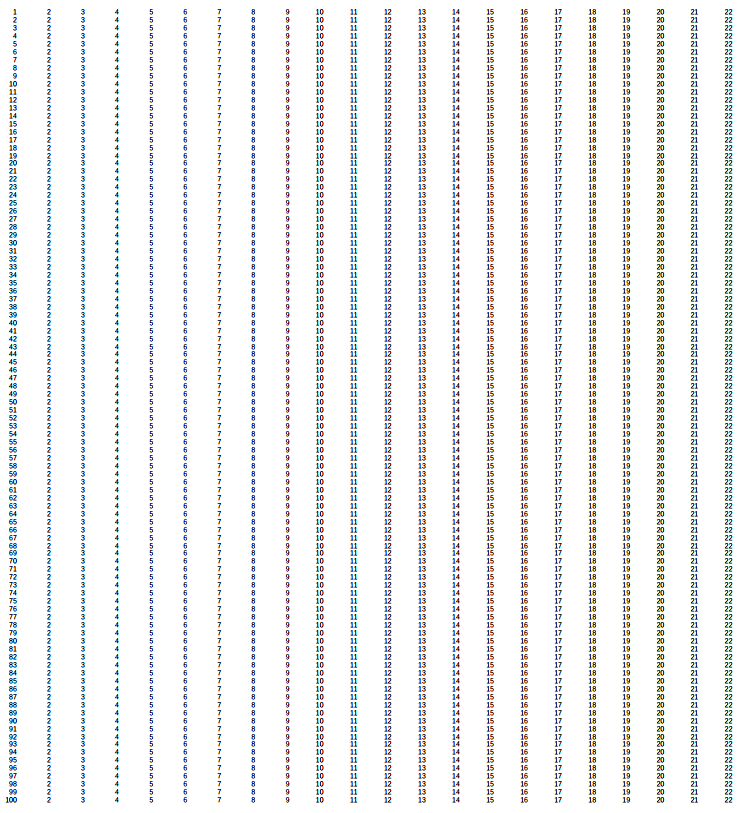

The output result:
How to Print All Columns of Worksheet in One Page Using Aspose.Cells for JavaScript via C++
To print all columns of Worksheet in one page: First, load the sample file, and then you need to set the PdfSaveOptions.allColumnsInOnePagePerSheet property of the PdfSaveOptions object. Here is an example in JavaScript:
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>All Columns In One Page Per Sheet Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate Workbook from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Create PdfSaveOptions and set allColumnsInOnePagePerSheet property
const options = new AsposeCells.PdfSaveOptions();
options.allColumnsInOnePagePerSheet = true;
// Save the workbook to PDF format with the options
const outputData = workbook.save(SaveFormat.Pdf, options);
const blob = new Blob([outputData], { type: 'application/pdf' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'AllColumnsInOnePagePerSheet.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
resultDiv.innerHTML = '<p style="color: green;">PDF generated successfully! Click the download link to get the file.</p>';
});
</script>
</html>

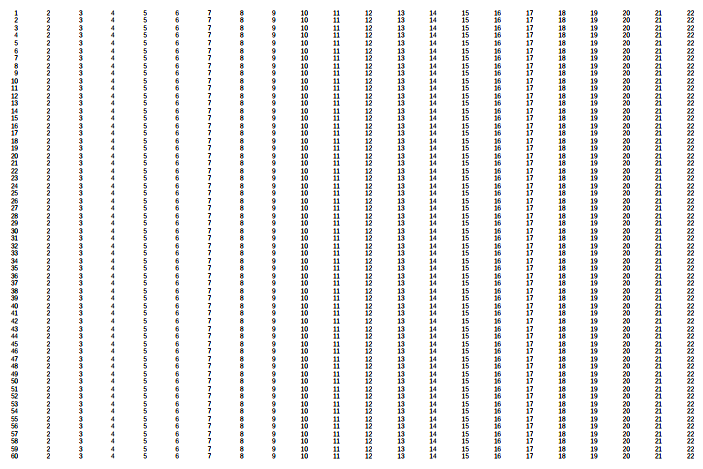

The output result:
