Implement Custom Paper Size of Worksheet for Rendering with JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios
There is no direct option available to create custom paper sizes in MS Excel, however, you can set a custom paper size of your desired worksheets when rendering an Excel file to PDF format. This document explains how to set a custom paper size of a worksheet using Aspose.Cells APIs.
Implement Custom Paper Size of Worksheet for Rendering
Aspose.Cells allows you to implement your desired paper size of the worksheet. You may use the PageSetup.customPaperSize(number, number) method of the PageSetup class to specify a custom page size. The following sample code illustrates how to specify a custom paper size for the first worksheet in the workbook. Please also see the output PDF generated with the following code for reference.

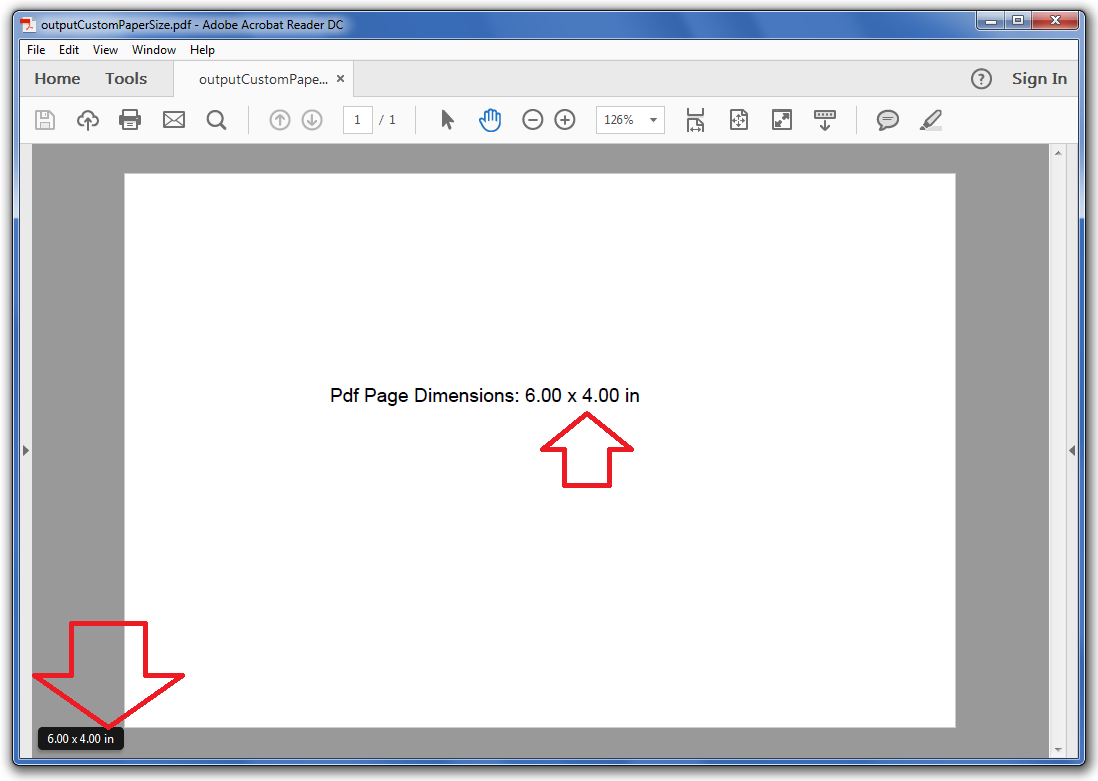

Screenshot
Sample Code
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Custom PDF Paper Size Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
// If no file provided, create a new workbook as in the original JavaScript example
const wb = new Workbook();
// Access first worksheet
const ws = wb.worksheets.get(0);
// Set custom paper size in unit of inches
ws.pageSetup.customPaperSize(6, 4);
// Access cell B4
const b4 = ws.cells.get("B4");
// Add the message in cell B4
b4.value = "Pdf Page Dimensions: 6.00 x 4.00 in";
// Save the workbook in pdf format
const outputData = wb.save(SaveFormat.Pdf);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputCustomPaperSize.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
document.getElementById('result').innerHTML = '<p style="color: green;">PDF created successfully! Click the download link to get the file.</p>';
return;
}
// If a file is provided, open it and apply the same operations
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate workbook from uploaded file
const wb = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet
const ws = wb.worksheets.get(0);
// Set custom paper size in unit of inches
ws.pageSetup.customPaperSize(6, 4);
// Access cell B4
const b4 = ws.cells.get("B4");
// Add the message in cell B4
b4.value = "Pdf Page Dimensions: 6.00 x 4.00 in";
// Save the workbook in pdf format
const outputData = wb.save(SaveFormat.Pdf);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputCustomPaperSize.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
document.getElementById('result').innerHTML = '<p style="color: green;">PDF created successfully! Click the download link to get the file.</p>';
});
</script>
</html>
