Insert Background Image to Excel with JavaScript via C++
Contents
[
Hide
]
You can make a worksheet more appealing by adding a picture as a worksheet background. This feature can be quite effective if you have a special corporate graphic that adds a hint of the background without obscuring the data on the sheet. You can set background picture for a sheet using Aspose.Cells API.
Setting Sheet Background in Microsoft Excel
To set a sheet’s background image in Microsoft Excel (for example, Microsoft Excel 2019):
-
From the Page Layout menu, find the Page Setup option, and then click the Background option.
-
Select a picture to set the sheet’s background picture.

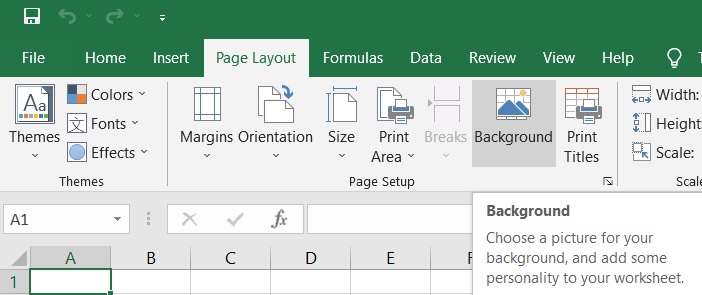

Setting a sheet background
Setting Sheet Background with Aspose.Cells for JavaScript via C++
The code below sets a background image using an image from a stream.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example - Set Worksheet Background Image</title>
</head>
<body>
<h1>Set Worksheet Background Image Example</h1>
<p>
Select a background image to apply to a new workbook's first worksheet,
then click "Apply Background & Save" to generate XLSX and HTML files.
</p>
<input type="file" id="bgInput" accept="image/*" />
<button id="runExample">Apply Background & Save</button>
<a id="downloadXlsx" style="display: none; margin-left: 10px;"></a>
<a id="downloadHtml" style="display: none; margin-left: 10px;"></a>
<div id="result" style="margin-top: 1em;"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const bgInput = document.getElementById('bgInput');
const resultDiv = document.getElementById('result');
if (!bgInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select a background image file.</p>';
return;
}
const bgFile = bgInput.files[0];
const arrayBuffer = await bgFile.arrayBuffer();
const imgBytes = new Uint8Array(arrayBuffer);
// Create a new Workbook.
const workbook = new Workbook();
// Get the first worksheet.
const sheet = workbook.worksheets.get(0);
// Set the background image for the worksheet.
sheet.backgroundImage = imgBytes;
// Save the Excel file (XLSX)
const xlsxData = workbook.save(SaveFormat.Xlsx);
const blobXlsx = new Blob([xlsxData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
const downloadXlsx = document.getElementById('downloadXlsx');
downloadXlsx.href = URL.createObjectURL(blobXlsx);
downloadXlsx.download = 'outputBackImageSheet.xlsx';
downloadXlsx.style.display = 'inline';
downloadXlsx.textContent = 'Download Excel File';
// Save the HTML file
const htmlData = workbook.save(SaveFormat.Html);
const blobHtml = new Blob([htmlData], { type: 'text/html' });
const downloadHtml = document.getElementById('downloadHtml');
downloadHtml.href = URL.createObjectURL(blobHtml);
downloadHtml.download = 'outputBackImageSheet.html';
downloadHtml.style.display = 'inline';
downloadHtml.textContent = 'Download HTML File';
resultDiv.innerHTML = '<p style="color: green;">Background image applied. Download links are ready.</p>';
});
</script>
</html>
