Read and Write External Connection of XLS and XLSB files with JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios
Aspose.Cells already supports reading and writing external connections of XLSX files but now, it also supports this feature for XLSB and XLS files. However, the code is the same for all types of formats.
Read and Write External Connection of XLS/XLSB file

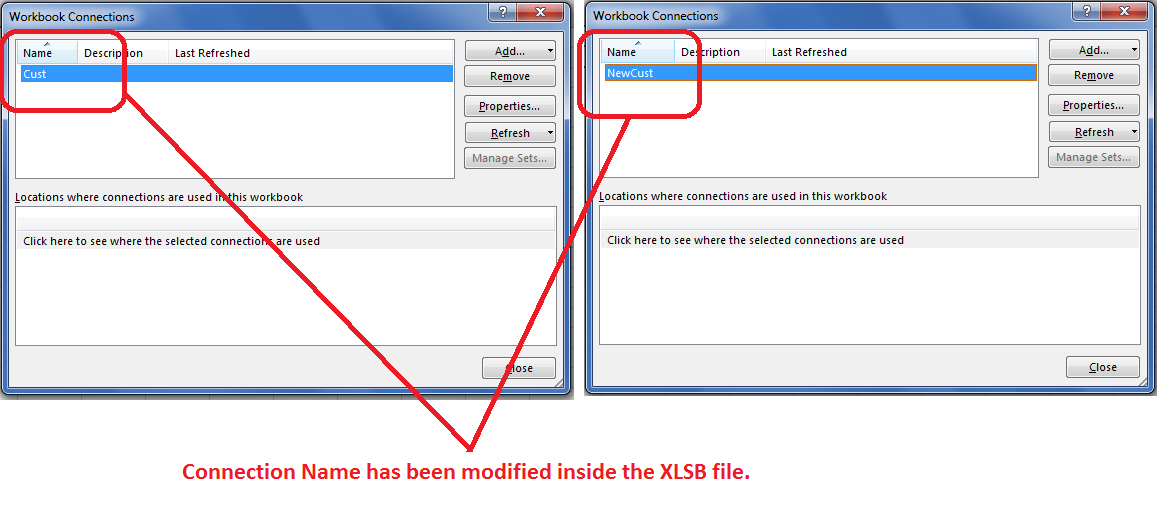

The following sample code loads the sample XLSB file (XLS can also be loaded) and reads its first external connection which is actually a Microsoft Access DB Connection. It then modifies the DBConnection.name property and saves it as output XLS/XLSB file. The screenshot shows the effect of code on sample XLSB file and output XLSB file after its execution. Please also see the console output of the sample code given below for a reference.
Sample Code
The following code shall work for both XLSB and XLS files by loading and saving files with the appropriate extension.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Read and Modify External DB Connection (XLSB)</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.xlsb,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file (.xlsb).</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Load the source Excel Xlsb file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Read the first external connection which is actually a DB-Connection
const dbCon = workbook.dataConnections.get(0);
// Print the Name, Command and Connection Info of the DB-Connection
const outputLines = [];
outputLines.push("Connection Name: " + dbCon.name);
outputLines.push("Command: " + dbCon.command);
outputLines.push("Connection Info: " + dbCon.connectionString);
// Modify the Connection Name
dbCon.name = "NewCust";
// Save the Excel Xlsb file
const outputData = workbook.save(SaveFormat.Xlsb);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputExternalConnection_XLSB.xlsb';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<pre style="color: green;">' + outputLines.join('\n') + '\n\nModified connection name to: NewCust</pre>';
});
</script>
</html>
Console Output
Connection Name: Cust
Command: Customer
Connection Info: Provider=Microsoft.ACE.OLEDB.12.0;Password="";User ID=Admin;Data Source=C:\TempSha\Cust.accdb;Mode=Share Deny Write;Extended Properties="";Jet OLEDB:System database="";Jet OLEDB:Registry Path="";Jet OLEDB:Database Password="";Jet OLEDB:Engine Type=6;Jet OLEDB:Database Locking Mode=0;Jet OLEDB:Global Partial Bulk Ops=2;Jet OLEDB:Global Bulk Transactions=1;Jet OLEDB:New Database Password="";Jet OLEDB:Create System Database=False;Jet OLEDB:Encrypt Database=False;Jet OLEDB:Don't Copy Locale on Compact=False;Jet OLEDB:Compact Without Replica Repair=False;Jet OLEDB:SFP=False;Jet OLEDB:Support Complex Data=False;Jet OLEDB:Bypass UserInfo Validation=False;Jet OLEDB:Limited DB Caching=False;Jet OLEDB:Bypass ChoiceField Validation=False
