Render Gradient Fill for the WordArt while Converting Spreadsheets to HTML with JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios

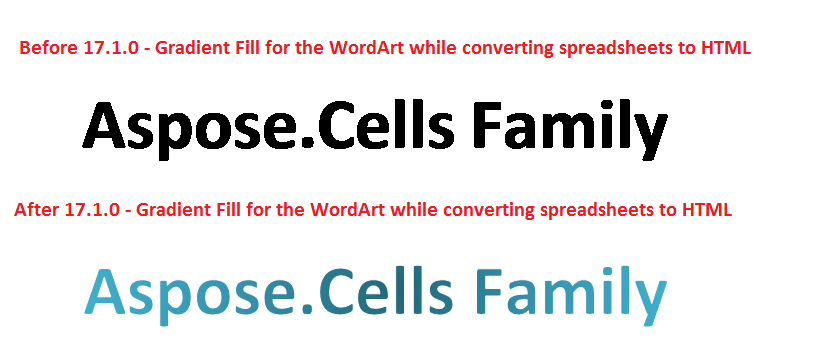

Before Aspose.Cells 17.1, Aspose.Cells did not render gradient fill of the WordArt when the Excel file was converted to HTML format. Since the release of Aspose.Cells 17.1, WordArt gradient fill is supported. The following screenshot compares the effect on the gradient fill by converting the Excel file using Aspose.Cells 17.1 and the older version.
Render Gradient Fill for the WordArt while converting spreadsheets to HTML
The following sample code converts the source excel file into output HTML format. The source excel file contains a WordArt object with gradient fill as shown in the above screenshot.
Sample Code
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example - Source Gradient Fill</title>
</head>
<body>
<h1>Source Gradient Fill to HTML Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Convert to HTML</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file (.xls, .xlsx, .csv).</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object by opening the uploaded Excel file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Save workbook to HTML format
const outputData = workbook.save(SaveFormat.Html);
const blob = new Blob([outputData], { type: 'text/html' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'out_sourceGradientFill.html';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Converted HTML File';
resultDiv.innerHTML = '<p style="color: green;">Conversion completed successfully! Click the download link to get the HTML file.</p>';
});
</script>
</html>
