Render Solid Gridlines while converting Excel to PDF with JavaScript via C++

Contents
[ ]

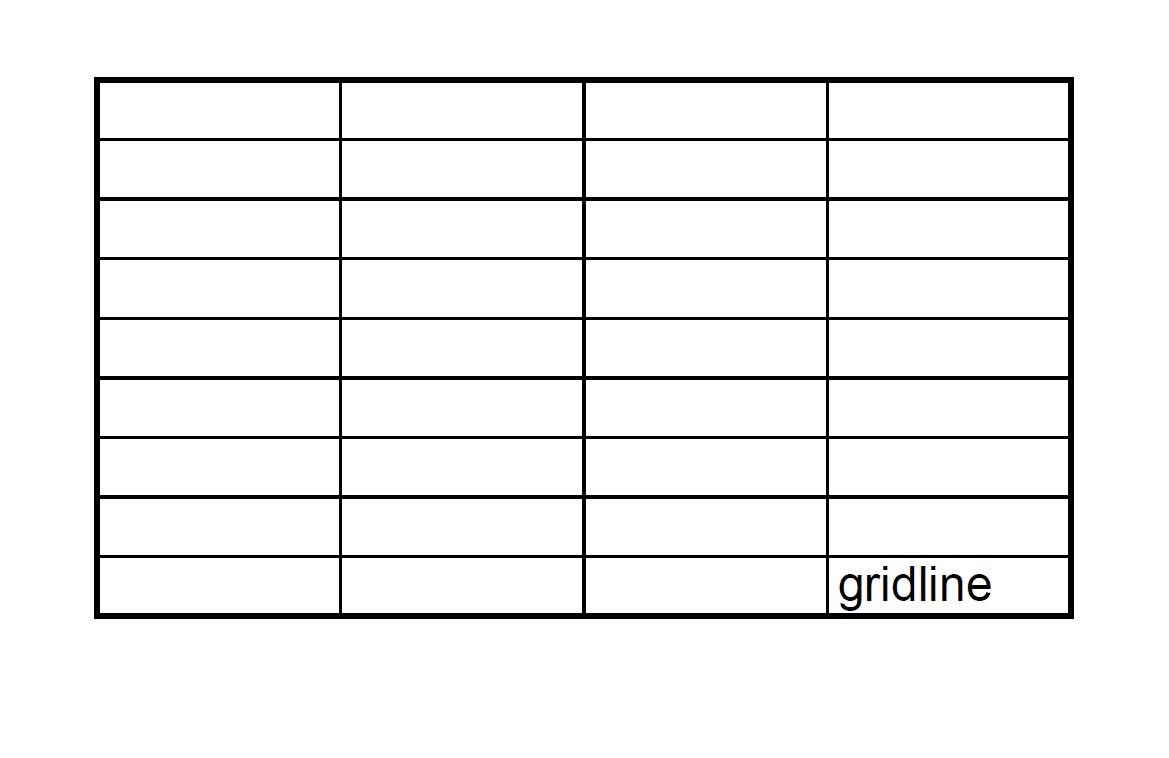

For compatibility with older versions, Aspose.Cells renders gridlines as dotted lines by default while converting Excel to PDF. However, modern versions of Excel render gridlines as solid lines.

With option PdfSaveOptions.gridlineTypes, Aspose.Cells for JavaScript via C++ can also render gridlines as solid lines.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Aspose.Cells Example - Generate PDF with Gridlines</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, PdfSaveOptions, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Loads the workbook which contains hidden external links (as in original JavaScript example)
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Create an empty Workbook
            const wb = new Workbook();

            // Prepare data
            const worksheet = wb.worksheets.get(0);
            const cell = worksheet.cells.get("D9");
            cell.value = "gridline";

            // Enable printing of gridlines
            worksheet.pageSetup.printGridlines = true;

            // Set to render gridlines as solid lines
            const pdfSaveOptions = new PdfSaveOptions();
            pdfSaveOptions.gridlineType = AsposeCells.GridlineType.Hair;

            // Save the PDF file with PdfSaveOptions
            const outputData = wb.save(SaveFormat.Pdf, pdfSaveOptions);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'test_Cs.pdf';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download PDF File';

            document.getElementById('result').innerHTML = '<p style="color: green;">PDF generated successfully! Click the download link to get the file.</p>';
        });
    </script>
</html>
