Render Unicode Supplementary characters in output PDF by Aspose.Cells for JavaScript via C++
Contents
[
Hide
]
Normal Unicode characters are 2-bytes long while Unicode Supplementary characters are 4-bytes long. Aspose.Cells now supports rendering of these 4-bytes Unicode characters.
In the Unicode Character Standard, Supplementary Characters are the characters assigned code points from U+10000 to U+10FFFF. In other words, these are the Unicode characters greater than U+FFFF.
- In UTF-8 these characters are each 4 bytes long.
- In UTF-16 these characters require 2 surrogates (16-bit units).
Render Unicode Supplementary characters in output PDF by Aspose.Cells for JavaScript via C++

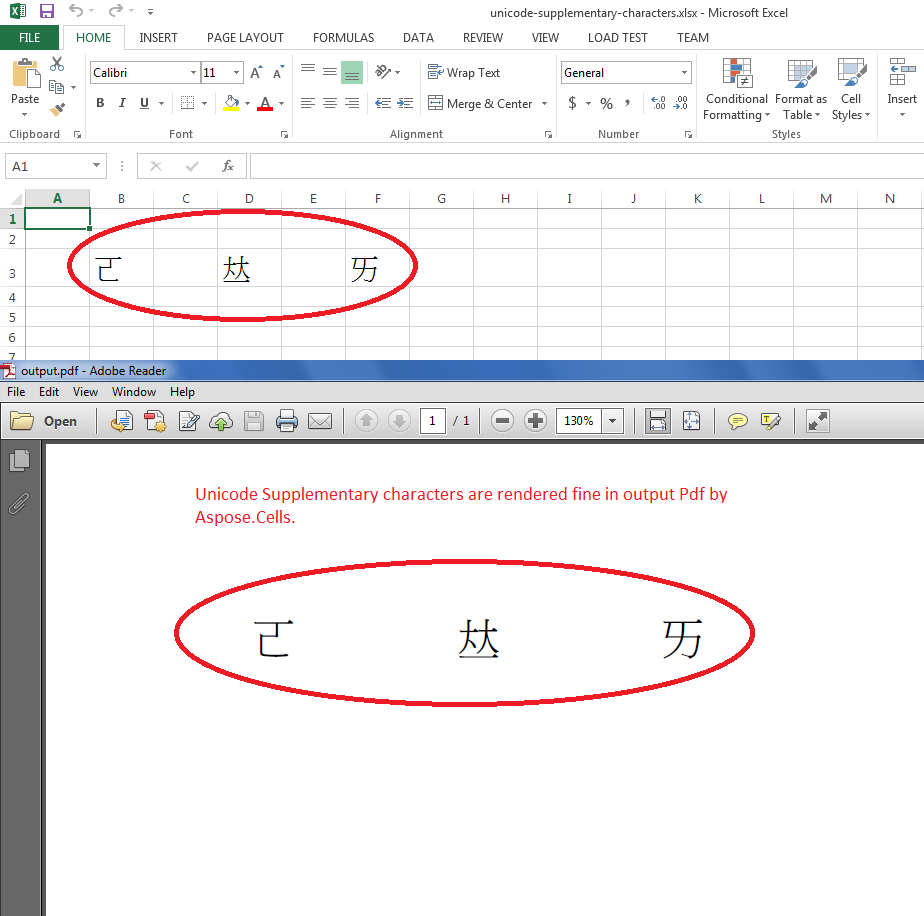

The following screenshot shows how Aspose.Cells rendered the source excel file into the output PDF. As you can see all three Unicode Supplementary characters have been rendered exactly the same as done by Microsoft Excel.
Sample Code
You can use this sample code to convert source excel file into output PDF.
<!DOCTYPE html>
<html>
<head>
<title>Render Unicode Supplementary Characters to PDF</title>
</head>
<body>
<h1>Render Unicode Supplementary Characters to PDF</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Save the workbook as PDF
const outputData = workbook.save(SaveFormat.Pdf);
const blob = new Blob([outputData], { type: 'application/pdf' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'RenderUnicodeInOutput_out.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
document.getElementById('result').innerHTML = '<p style="color: green;">PDF generated successfully! Click the download link to get the PDF file.</p>';
});
</script>
</html>
