Rendering Slicer with JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios
Aspose.Cells for JavaScript via C++ supports the rendering of slicer shapes. If you convert your worksheet into an image or save your workbook to PDF or HTML formats, you will see that slicers are rendered properly.
Rendering Slicer

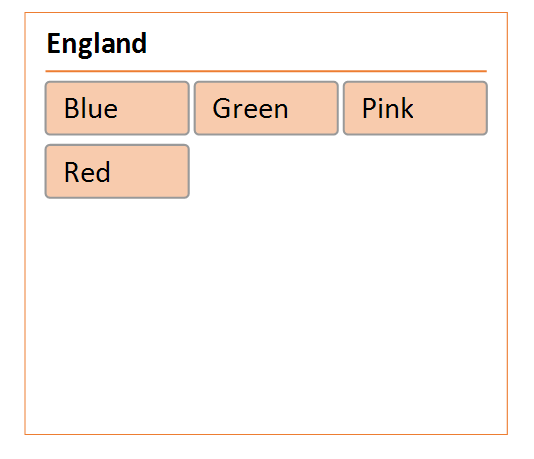

The following sample code loads the sample Excel file that contains an existing slicer. It converts the worksheet into an image by setting the print area that covers only the slicer. The resulting image is the output image that shows the rendered slicer. As you can see, the slicer has been rendered properly and looks the same as in the sample Excel file.
Sample Code
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example - Render Slicer to Image</title>
</head>
<body>
<h1>Render Slicer to Image</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, ImageOrPrintOptions, ImageType, SheetRender, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from uploaded file
const wb = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet.
const ws = wb.worksheets.get(0);
// Set the print area because we want to render slicer only.
ws.pageSetup.printArea = "B15:E25";
// Specify image or print options, set one page per sheet and only area to true.
const imgOpts = new ImageOrPrintOptions();
imgOpts.horizontalResolution = 200;
imgOpts.verticalResolution = 200;
imgOpts.imageType = ImageType.Png;
imgOpts.onePagePerSheet = true;
imgOpts.onlyArea = true;
// Create sheet render object and render worksheet to image.
const sr = new SheetRender(ws, imgOpts);
// Render to image (first page/index 0) and prepare download link
const imageData = sr.toImage(0);
const blob = new Blob([imageData], { type: 'image/png' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputRenderingSlicer.png';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Rendered Image';
document.getElementById('result').innerHTML = '<p style="color: green;">Rendering completed successfully! Click the download link to get the image.</p>';
});
</script>
</html>
