Send Shape Front or Back inside the Worksheet with JavaScript via C++

Possible Usage Scenarios

When there are multiple shapes present in the same location, their visibility is determined by their z-order positions. Aspose.Cells provides Shape.toFrontOrBack() method, which changes the z-order position of the shape. To send a shape to the back, you will use a negative number like -1, -2, -3, etc., and to bring a shape to the front, you will use a positive number like 1, 2, 3, etc.

Send Shape Front or Back inside the Worksheet

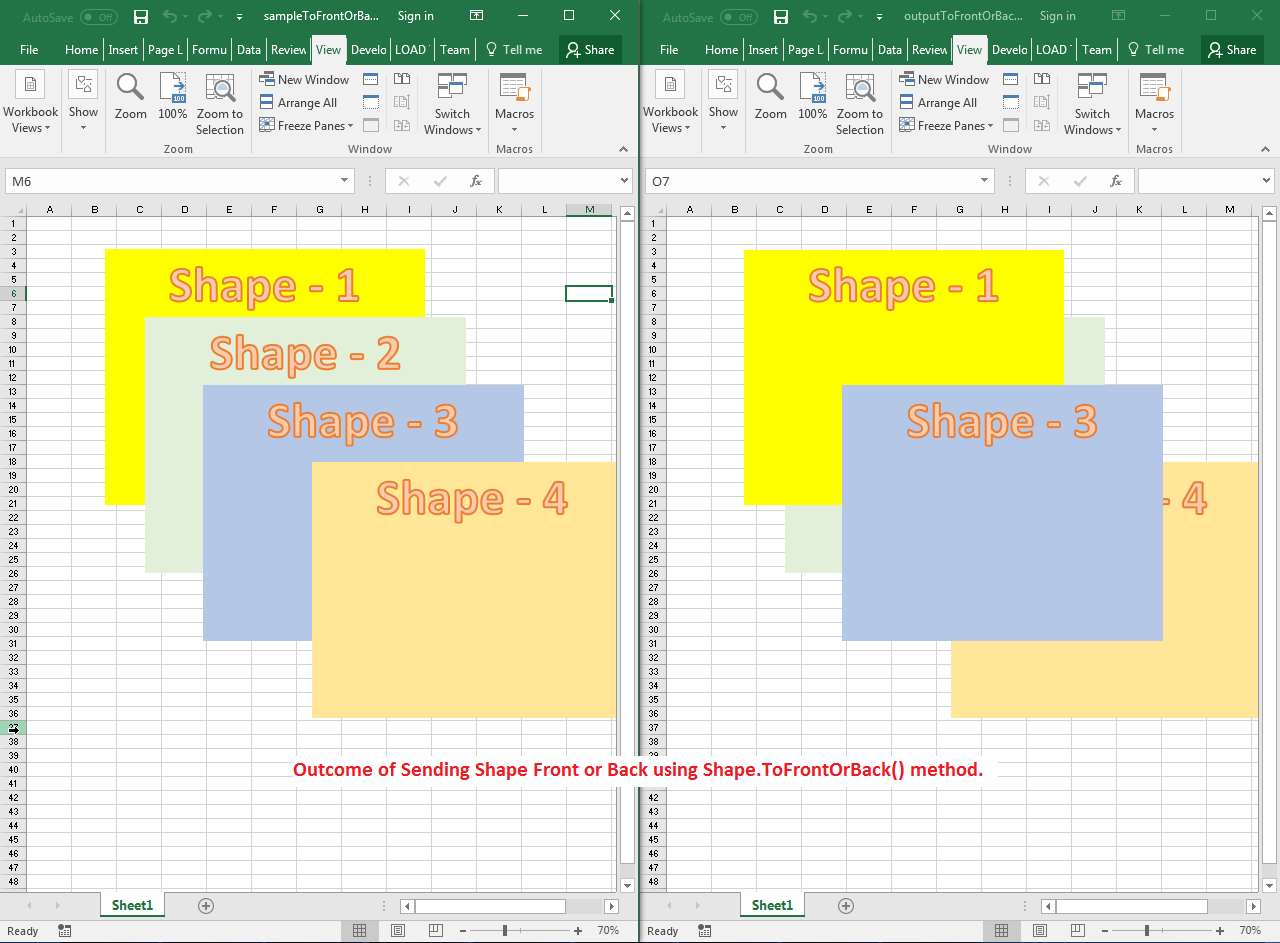

The following sample code explains the usage of Shape.toFrontOrBack() method. Please see the sample Excel file used inside the code and the output Excel file generated by it. The screenshot shows the effect of the code on the sample Excel file upon execution.

todo:image_alt_text

Sample Code

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example - Send Shapes Front or Back</title>
    </head>
    <body>
        <h1>Send Shapes to Front or Back Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            const resultDiv = document.getElementById('result');
            const downloadLink = document.getElementById('downloadLink');

            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object from the uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Accessing the first worksheet in the Excel file
            const worksheet = workbook.worksheets.get(0);

            // Access first and fourth shapes
            const shape1 = worksheet.shapes.get(0);
            const shape4 = worksheet.shapes.get(3);

            // Print the Z-Order position of shape1
            resultDiv.innerHTML = `<p>Z-Order Shape 1: ${shape1.zOrderPosition}</p>`;

            // Send this shape to front
            shape1.toFrontOrBack(2);

            // Print the Z-Order position of shape4
            resultDiv.innerHTML += `<p>Z-Order Shape 4: ${shape4.zOrderPosition}</p>`;

            // Send this shape to back
            shape4.toFrontOrBack(-2);

            // Saving the modified Excel file and preparing download link
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'outputToFrontOrBack.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            resultDiv.innerHTML += '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>
