Set Margins of Comment or Shape inside the Worksheet with JavaScript via C++
Possible Usage Scenarios
Aspose.Cells allows you to set the margins of any shape or comment using the Shape.textBody.textAlignment property. This property returns the object of Aspose.Cells.Drawing.Texts.ShapeTextAlignment class which has different properties e.g. ShapeTextAlignment.topMarginPt, ShapeTextAlignment.leftMarginPt, ShapeTextAlignment.bottomMarginPt, ShapeTextAlignment.rightMarginPt, etc. that can be used to set the top, left, bottom and right margins.
Set Margins of Comment or Shape inside the Worksheet

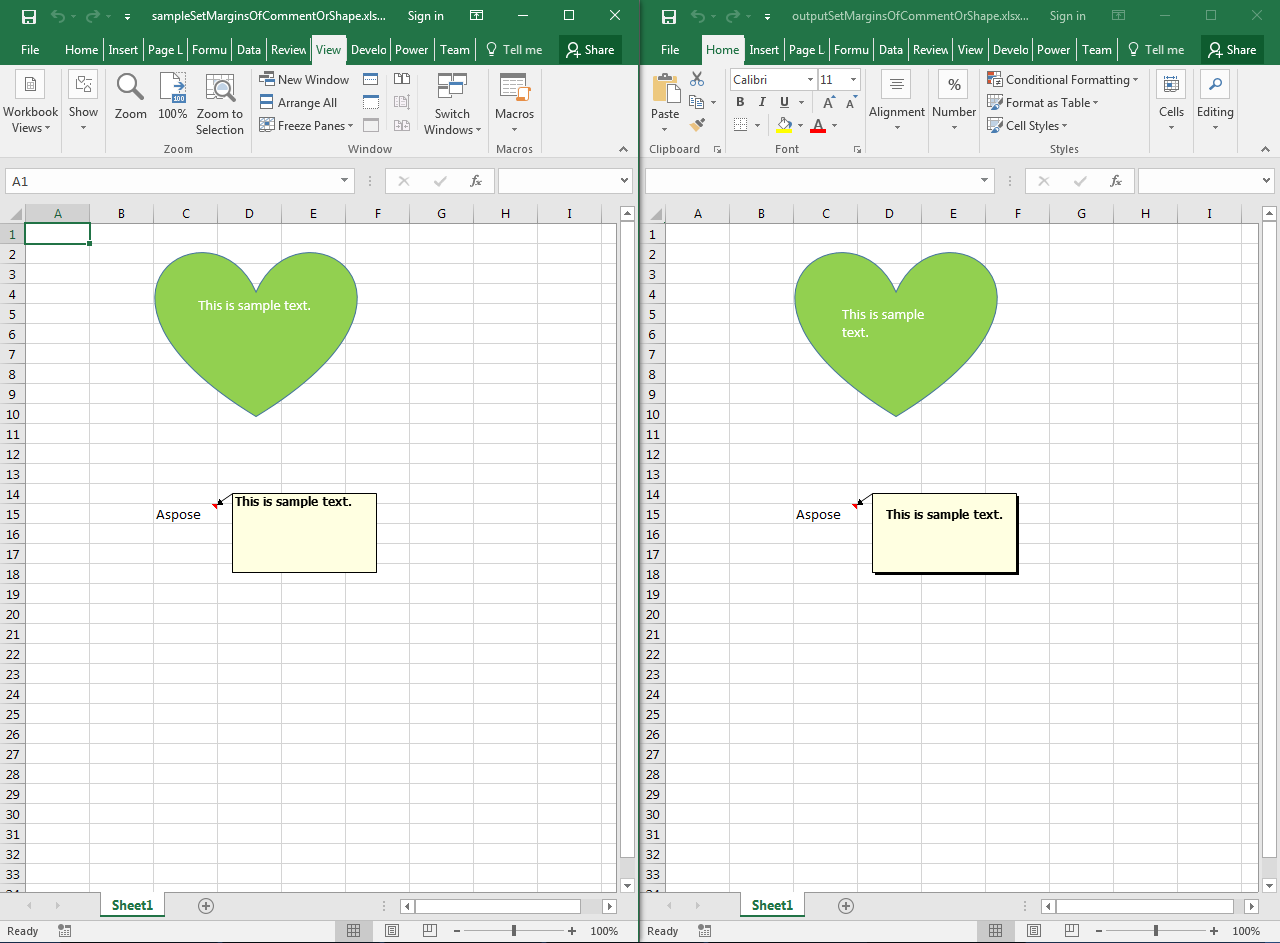

Please see the following sample code. It loads the sample Excel file that contains two shapes. The code accesses the shapes one by one and sets their top, left, bottom and right margins. Please see the output Excel file generated by the code and screenshot showing the effect of the code on the output Excel file.
Sample Code
<!DOCTYPE html>
<html>
<head>
<title>Set Margins of Comment or Shape Example</title>
</head>
<body>
<h1>Set Margins of Comment or Shape Inside The Worksheet</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet
const ws = workbook.worksheets.get(0);
const shapes = ws.shapes;
for (let i = 0; i < shapes.count; i++) {
const sh = shapes.get(i);
// Access the text alignment
const txtAlign = sh.textBody.textAlignment;
// Set auto margin false
txtAlign.isAutoMargin = false;
// Set the top, left, bottom and right margins
txtAlign.topMarginPt = 10;
txtAlign.leftMarginPt = 10;
txtAlign.bottomMarginPt = 10;
txtAlign.rightMarginPt = 10;
}
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputSetMarginsOfCommentOrShapeInsideTheWorksheet.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Margins updated successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
