Set the Shape Type of Data Labels of Chart with JavaScript via C++

Possible Usage Scenarios

You can change the shape type of data labels of the chart using the DataLabels.shapeType property. It takes the value of DataLabelShapeType enumeration and changes the shape type of data labels accordingly. Some of its values are

 DataLabelShapeType.BentLineCallout
DataLabelShapeType.DownArrowCallout
DataLabelShapeType.Ellipse
DataLabelShapeType.LineCallout
DataLabelShapeType.Rect
etc.

Set the Shape Type of Data Labels of Chart

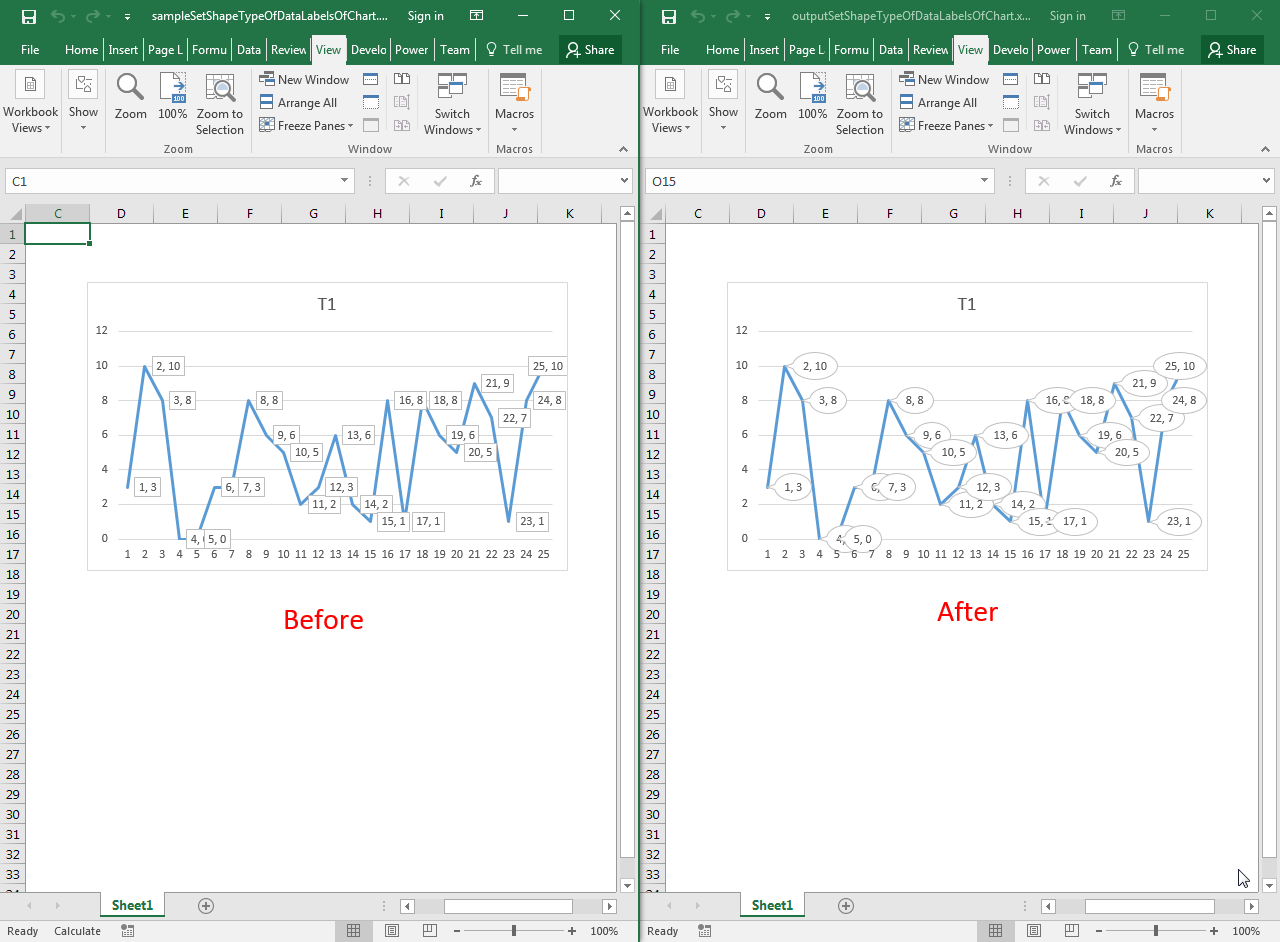

The following sample code changes the shape type of data labels of the chart to DataLabelShapeType.WedgeEllipseCallout. Please see the sample Excel file used in this code and the output Excel file generated by it. The screenshot shows the effect of the code on the sample Excel file.

todo:image_alt_text

Sample Code

<!DOCTYPE html>
<html>
    <head>
        <title>Set Shape Type of Data Labels of Chart Example</title>
    </head>
    <body>
        <h1>Set Shape Type of Data Labels of Chart Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            const resultDiv = document.getElementById('result');
            const downloadLink = document.getElementById('downloadLink');

            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object from the uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Accessing the first worksheet in the Excel file
            const worksheet = workbook.worksheets.get(0);

            // Accessing the first chart
            const chart = worksheet.charts.get(0);

            // Accessing the first series
            const series = chart.nSeries.get(0);

            // Set the shape type of data labels i.e. Speech Bubble Oval
            series.dataLabels.shapeType = AsposeCells.DataLabelShapeType.WedgeEllipseCallout;

            // Saving the modified Excel file
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'outputSetShapeTypeOfDataLabelsOfChart.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Excel File';

            resultDiv.innerHTML = '<p style="color: green;">Shape type set successfully! Click the download link to get the modified file.</p>';
        });
    </script>
</html>
