Setting ScaleCrop and LinksUpToDate properties of Built-In Document Properties with JavaScript via C++
Possible Usage Scenarios
BuiltInDocumentPropertyCollection.scaleCrop and BuiltInDocumentPropertyCollection.linksUpToDate are two extended built-in document properties defined inside the OpenXml format. The purpose of these properties are following.
1) ScaleCrop
This element indicates the display mode of the document thumbnail. Set this element to TRUE to enable scaling of the document thumbnail to the display. Set this element to FALSE to enable cropping of the document thumbnail to show only sections that fit the display.
The possible values for this element are defined by the W3C XML Schema boolean datatype.
2) LinksUpToDate
This element indicates whether hyperlinks in a document are up-to-date. Set this element to TRUE to indicate that hyperlinks are updated. Set this element to FALSE to indicate that hyperlinks are outdated.
The possible values for this element are defined by the W3C XML Schema boolean datatype.

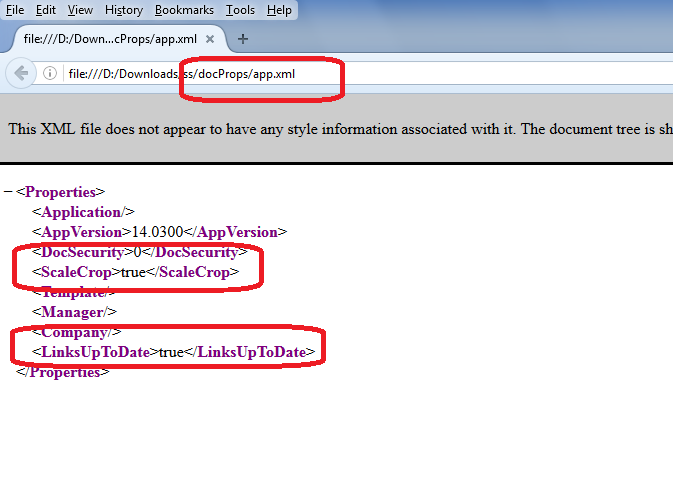

Screenshot showing these properties inside the app.xml file
Setting ScaleCrop and LinksUpToDate properties of Built-In Document Properties
The following sample code sets the BuiltInDocumentPropertyCollection.scaleCrop and BuiltInDocumentPropertyCollection.linksUpToDate extended built-in document properties of the workbook. Please check the output excel file generated with this code, change its extension to .zip and extract its contents and view the app.xml as shown in the screenshot above.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Example - Set BuiltIn Document Properties</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
// Create or load workbook
let workbook;
if (fileInput.files.length) {
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
workbook = new Workbook(new Uint8Array(arrayBuffer));
} else {
workbook = new Workbook();
}
// Accessing BuiltIn Document Properties and setting properties
const builtInDocumentProperties = workbook.builtInDocumentProperties;
// Setting ScaleCrop and LinksUpToDate BuiltIn Document Properties.
builtInDocumentProperties.scaleCrop = true;
builtInDocumentProperties.linksUpToDate = true;
// Saving the Excel file.
const outputData = workbook.save(SaveFormat.Auto);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xls';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
