Tile Picture as a Texture inside the Shape with JavaScript via C++
Contents
[
Hide
]
Possible Usage Scenarios
When the picture is small and does not cover the entire surface of the shape without losing its quality, then you have the option to tile it. Tiling fills the shape surface with a small image by repeating them as if they are tiles.
Tile Picture as a Texture inside the Shape
You can fill the shape surface with some image and tile it using the Shape.isTiling() property and setting it true. Please see the following sample code, its sample Excel file as well as the screenshot for a reference.

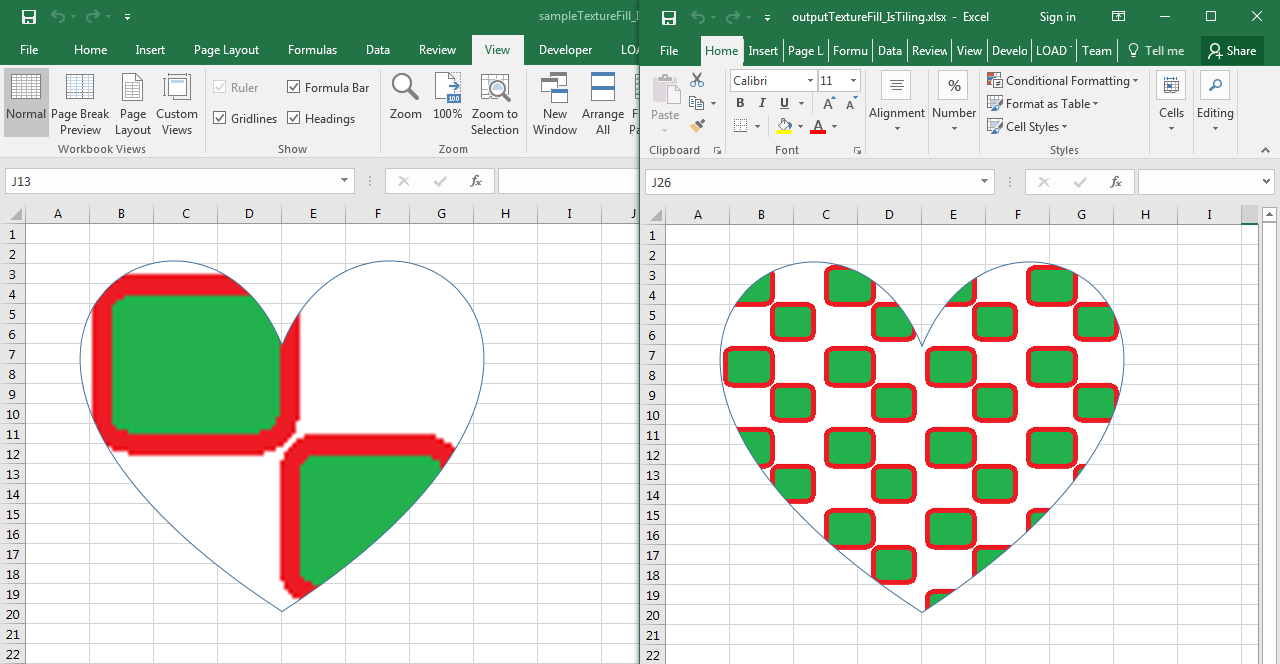

Screenshot
Sample Code
<!DOCTYPE html>
<html>
<head>
<title>Texture Fill IsTiling Example</title>
</head>
<body>
<h1>Texture Fill IsTiling Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Accessing the first worksheet in the Excel file
const worksheet = workbook.worksheets.get(0);
// Accessing the first shape inside the worksheet
const shape = worksheet.shapes.get(0);
// Tile Picture as a Texture inside the Shape
shape.fill.textureFill.isTiling = true;
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputTextureFill_IsTiling.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Texture fill set to tiling. Click the download link to get the modified file.</p>';
});
</script>
</html>
