Use Custom XML Parts in Aspose.Cells with JavaScript via C++

Using Custom XML Parts in Aspose.Cells

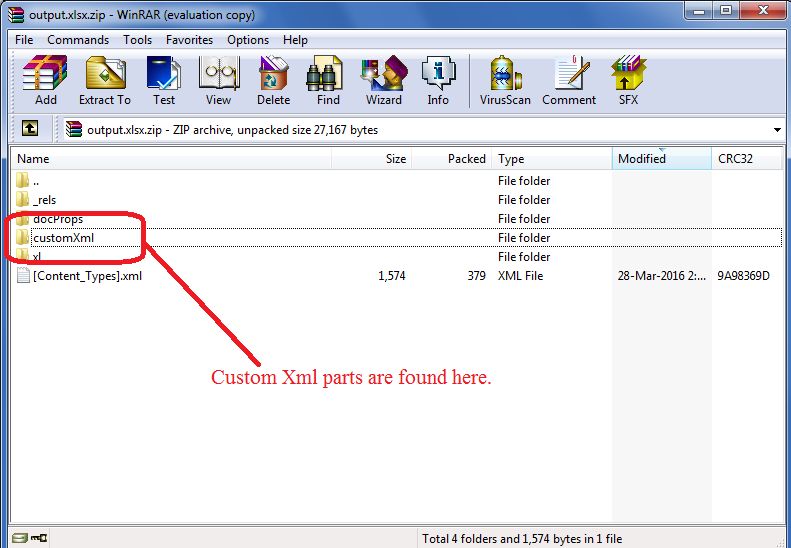

Custom XML Parts are the XML data that is stored by different applications like SharePoint etc. inside the Excel file. This data is consumed by different applications that need it. Microsoft Excel does not make use of this data so there is no GUI to add it. You can view this data by changing the extension of .xlsx into .zip and then by opening it using WinZip. You can also open the ZIP file using any third-party Windows zip utility such as WinRAR or WinZip etc. The data is present inside the customXml folder.

You can add custom XML parts using Aspose.Cells for JavaScript via C++ through the ContentTypePropertyCollection method.

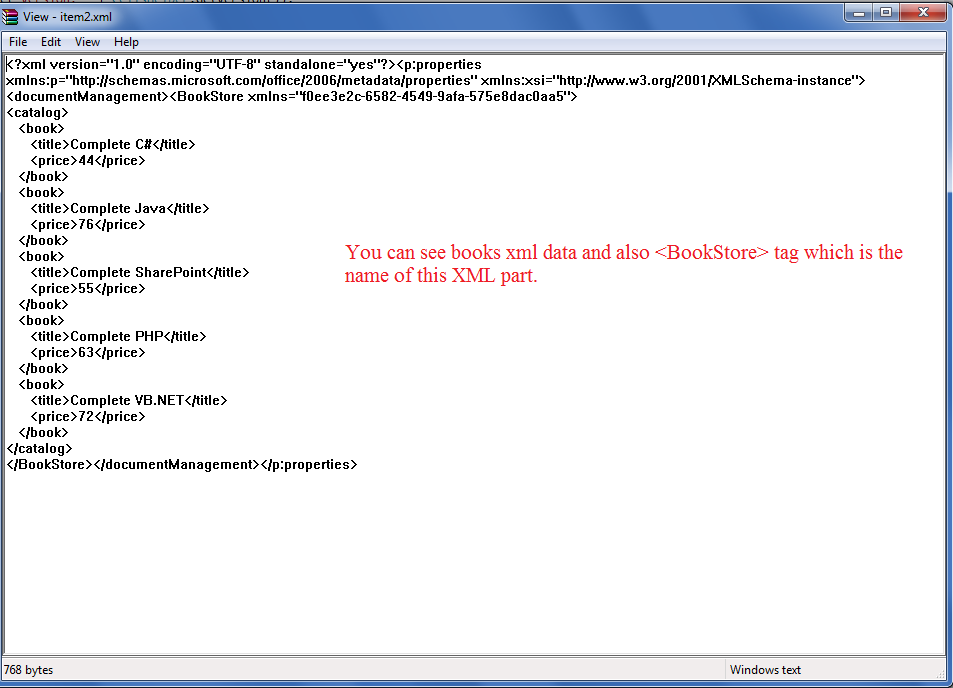

The following sample code makes use of ContentTypePropertyCollection method and adds the Book Catalog XML and its name is BookStore. The following image shows the result of this code. As you can see, Book Catalog XML is added inside the BookStore node which is the name of this property.

todo:image_alt_text

todo:image_alt_text

JavaScript code to use custom XML parts

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Add Custom XML to Workbook Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        const booksXML = `<catalog>
<book>
<title>Complete C#</title>
<price>44</price>
</book>
<book>
<title>Complete Java</title>
<price>76</price>
</book>
<book>
<title>Complete SharePoint</title>
<price>55</price>
</book>
<book>
<title>Complete PHP</title>
<price>63</price>
</book>
<book>
<title>Complete VB.NET</title>
<price>72</price>
</book>
</catalog>`;

        document.getElementById('runExample').addEventListener('click', async () => {
            // Create an instance of Workbook class
            const workbook = new Workbook();

            // Add Custom XML Part to ContentTypePropertyCollection
            workbook.contentTypeProperties.add("BookStore", booksXML);

            // Save the resultant spreadsheet
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Excel File';

            document.getElementById('result').innerHTML = '<p style="color: green;">Custom XML added and file prepared. Click the download link to get the file.</p>';
        });
    </script>
</html>
