Using ChartGlobalizationSettings Class to Set Different Language for Chart Component with JavaScript via C++

Possible Usage Scenarios

Aspose.Cells APIs have exposed the ChartGlobalizationSettings class in order to deal with the scenarios where the user wishes to set chart component to different languages and custom labels for Subtotals in a spreadsheet.

Introduction to ChartGlobalizationSettings Class

The ChartGlobalizationSettings class currently offers the following 8 methods which can be overridden in a custom class to translate such as AxisTitle name, AxisUnit name, ChartTitle name, and so on to different languages.

  1. ChartGlobalizationSettings.axisTitleName: Gets the name of Title for Axis.
  2. ChartGlobalizationSettings.axisUnitName(DisplayUnitType): Gets the Name of Axis Unit.
  3. ChartGlobalizationSettings.chartTitleName: Gets the name of Chart Title.
  4. ChartGlobalizationSettings.legendDecreaseName: Gets the name of Decrease for Legend.
  5. ChartGlobalizationSettings.legendIncreaseName: Gets the name of Increase for Legend.
  6. ChartGlobalizationSettings.legendTotalName: Gets the name of Total for Legend.
  7. ChartGlobalizationSettings.otherName: Gets the name of “Other” labels for Chart.
  8. ChartGlobalizationSettings.seriesName: Gets the name of Series in the Chart.

Custom language translation

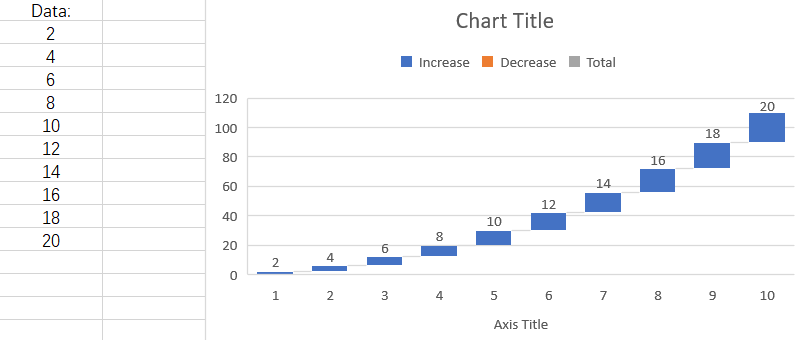

Here, we will create a waterfall chart based on the following data. The names of chart components will be displayed in English in the chart. We will use a Turkish language example to show how to display the Chart Title, Legend Increase/Decrease names, Total name, and Axis Title in Turkish.

todo:image_alt_text

Sample Code

The following sample code loads the sample Excel file.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Chart Globalization Settings Example</title>
    </head>
    <body>
        <h1>Chart Globalization Settings Example (Turkey)</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        // Define TurkeyChartGlobalizationSettings by converting getXxx methods to properties
        class TurkeyChartGlobalizationSettings extends AsposeCells.ChartGlobalizationSettings {
            constructor() {
                super();
                this.chartTitleName = "Grafik Başlığı"; // Chart Title
                this.legendIncreaseName = "Artış"; // Increase
                this.legendDecreaseName = "Düşüş"; // Decrease
                this.legendTotalName = "Toplam"; // Total
                this.axisTitleName = "Eksen Başlığı"; // Axis Title
            }
        }

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            const resultDiv = document.getElementById('result');
            resultDiv.innerHTML = '';

            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            // No try-catch: let errors propagate
            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiate Workbook from uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Set custom chartGlobalizationSettings (Turkey)
            workbook.settings.globalizationSettings.chartSettings = new TurkeyChartGlobalizationSettings();

            // Access the first worksheet and its charts
            const worksheet = workbook.worksheets.get(0);
            const chartCollection = worksheet.charts;
            const chart = chartCollection.get(0);

            // Calculate the chart
            chart.calculate();

            // Get the chart title text
            const title = chart.title;
            const titleText = title ? title.text : "(No Title)";

            // Prepare output messages
            const messages = [];
            messages.push('<p style="color: green;">Operation completed successfully!</p>');
            messages.push(`<p>Workbook chart title: ${titleText}</p>`);

            // Get legend labels and output them
            const legendEntriesLabels = chart.legend.legendLabels;
            if (legendEntriesLabels && legendEntriesLabels.forEach) {
                const legendItems = [];
                legendEntriesLabels.forEach(label => {
                    legendItems.push(`<li>${label}</li>`);
                });
                if (legendItems.length) {
                    messages.push('<p>Workbook chart legend:</p>');
                    messages.push(`<ul>${legendItems.join('')}</ul>`);
                } else {
                    messages.push('<p>(No legend labels found)</p>');
                }
            } else {
                messages.push('<p>(No legend or legend labels available)</p>');
            }

            // Save modified workbook to allow download (optional)
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Modified Excel File';

            resultDiv.innerHTML = messages.join('');
        });
    </script>
</html>

Output generated by the sample code

This is the console output of the above sample code.



Workbook chart title: Grafik Başlığı

Workbook chart legend: Artış

Workbook chart legend: Düşüş

Workbook chart legend: Toplam

Workbook category axis title: Eksen Başlığı
