Primary and Second Axis

Possible Usage Scenarios

When the numbers in a chart vary widely from data series to data series, or when you have mixed types of data (price and volume), plot one or more data series on a secondary vertical (value) axis. The scale of the secondary vertical axis shows the values for the associated data series. A secondary axis works well in a chart that shows a combination of column and line charts.

Handle Primary and Second Axis like Microsoft Excel

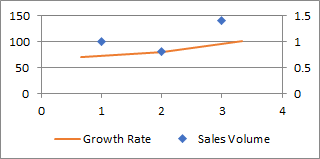

Please see the following sample code that create a new Excel file and put values of the chart in the first worksheet. Then we add a chart and show the second-axis.

Sample Code

from aspose.cells import Workbook
from aspose.cells.charts import ChartType, LegendPositionType
from aspose.cells.drawing import FillType

#  Create an instance of Workbook
workbook = Workbook()
#  Access the first worksheet.
worksheet = workbook.worksheets[0]
#  Put the sample values used in a chart
worksheet.cells.get("A1").put_value("Region")
worksheet.cells.get("A2").put_value("Peking")
worksheet.cells.get("A3").put_value("New York")
worksheet.cells.get("A4").put_value("Paris")
worksheet.cells.get("B1").put_value("Sales Volume")
worksheet.cells.get("C1").put_value("Growth Rate")
worksheet.cells.get("B2").put_value(100)
worksheet.cells.get("B3").put_value(80)
worksheet.cells.get("B4").put_value(140)
worksheet.cells.get("C2").put_value(0.7)
worksheet.cells.get("C3").put_value(0.8)
worksheet.cells.get("C4").put_value(1.0)
#  Create a Scatter chart
pieIdx = worksheet.charts.add(ChartType.SCATTER, 6, 6, 15, 11)
#  Retrieve the Chart object
chart = worksheet.charts[pieIdx]
#  Add Series
chart.n_series.add("B2:C4", True)
#  Set the category data
chart.n_series.category_data = "=Sheet1!$A$2:$A$4"
#  Set the Second-Axis
chart.n_series[1].plot_on_second_axis = True
#  Show the Second-Axis
chart.second_value_axis.is_visible = True
#  Set the second series ChartType to line
chart.n_series[1].type = ChartType.LINE
#  Set the series name
chart.n_series[0].name = "Sales Volume"
chart.n_series[1].name = "Growth Rate"
#  Set the Legend at the bottom of the chart area
chart.legend.position = LegendPositionType.BOTTOM
#  Fill the PlotArea area with nothing
chart.plot_area.area.fill_format.fill_type = FillType.NONE
#  Save the file
workbook.save("PrimaryandSecondaryAxis.xlsx")
