Создать график акций High Low Close (HLC) с помощью Node.js через C++
Возможные сценарии использования

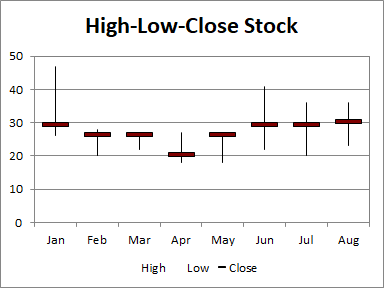

График акций High-Low-Close (HLC) использует четыре столбца данных. Первый столбец — категория, обычно дата, но можно использовать и имена акций. Далее идут три столбца для высоких, низких и закрывающих цен. Диапазон цен для каждой категории обозначается вертикальной линией от низкого до высокого, а цена закрытия отображается с помощью метки, простирающейся вправо от этой линии.
Улучшения видимости на графике
Иногда, чтобы сделать график более интуитивно понятным, мы можем изменить внешний вид маркера (закрытия) или отображать его на вторичной оси.
Образец кода

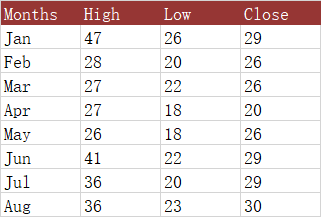

Нижеприведенный образец кода загружает образец файла Excel и генерирует файл Excel вывода.
const path = require("path");
const AsposeCells = require("aspose.cells.node");
// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "High-Low-Close.xlsx");
// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:D9", true);
// Set category data
chart.getNSeries().setCategoryData("A2:A9");
// Set the marker with the built-in data
chart.getNSeries().get(2).getMarker().setMarkerStyle(AsposeCells.ChartMarkerType.Dash);
chart.getNSeries().get(2).getMarker().setMarkerSize(20);
chart.getNSeries().get(2).getMarker().getArea().setFormatting(AsposeCells.FormattingType.Custom);
chart.getNSeries().get(2).getMarker().getArea().setForegroundColor(AsposeCells.Color.Maroon);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
