Filtrera objekt vid laddning av arbetsbok eller kalkylblad med JavaScript via C++

Möjliga användningsscenario

Använd gärna LoadOptions.loadFilter egenskapen när du filtrerar data från arbetsboken. Men om du vill filtrera data från enskilda kalkylblad måste du överskrida metoden LoadFilter.startSheet(Worksheet). Vänligen specificera ett lämpligt värde från LoadDataFilterOptions enum när du skapar eller arbetar med LoadFilter.

Enumener LoadDataFilterOptions har följande möjliga värden.

Alla
Bokinställningar
CellTom
CellBool
CellData
CellFel
CellNumeriskt
CellSträng
CellVärde
Chart
VillkorligFormatering
DataValidering
DefinieradeNamn
Dokumentegenskaper
Formel
Hyperlänkar
SammanslagnaOmråde
PivotTabell
Inställningar
Form
ArkData
Arkinställningar
Struktur
Stil
Tabell
VBA
XmlKarta

Filtrera objekt när du laddar arbetsbok

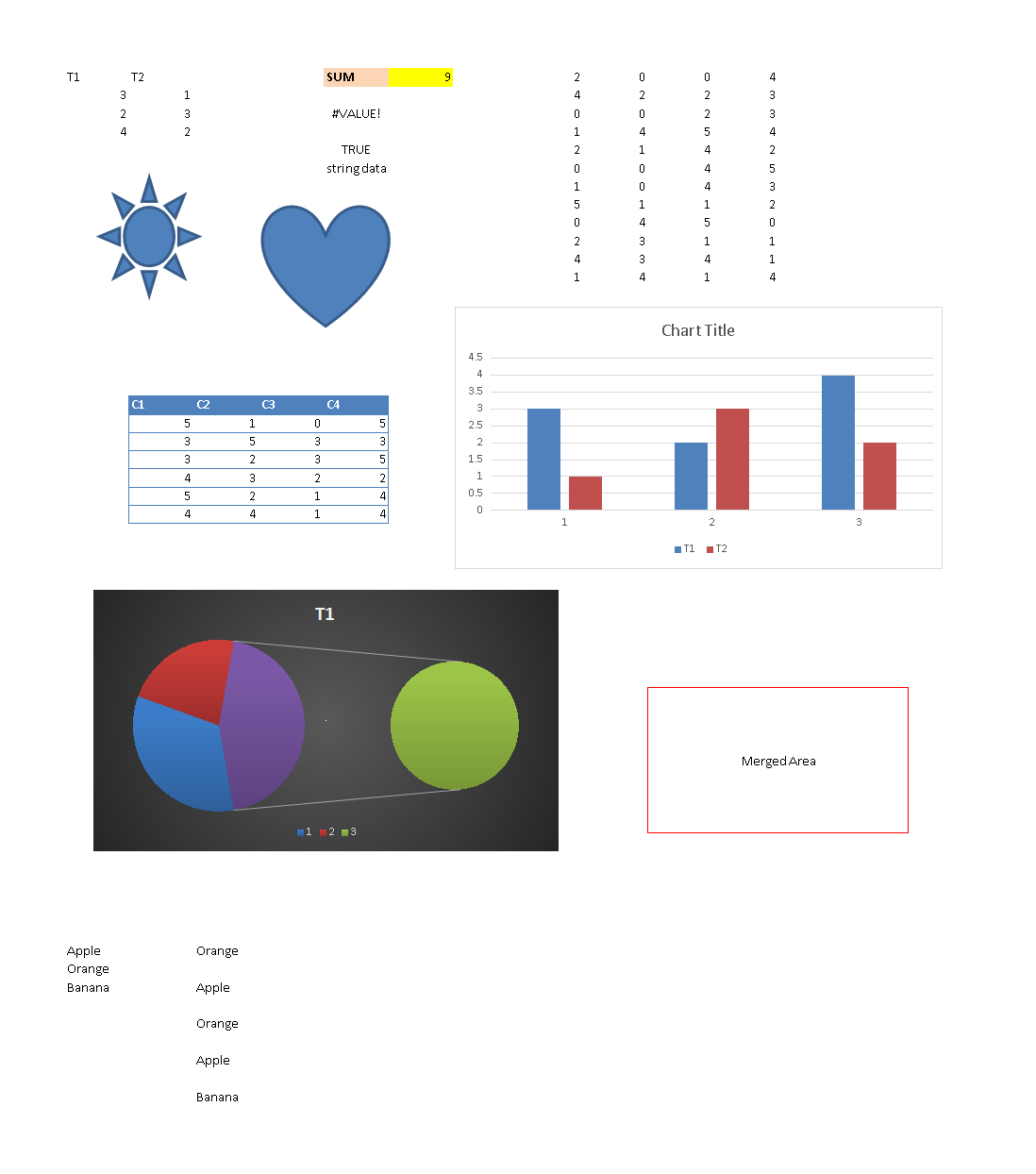

Följande exempelkod illustrerar hur du filtrerar diagram från arbetsboken. Kontrollera den exempel-Excel-filen som används i denna kod och den utdata PDF som genererats av den. Som du kan se i utdata PDF:en har alla diagram filtrerats bort från arbetsboken.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Filter Charts and Save to PDF Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, LoadOptions, LoadFilter, LoadDataFilterOptions, PdfSaveOptions } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            const resultDiv = document.getElementById('result');
            const downloadLink = document.getElementById('downloadLink');

            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Create load options and filter out charts
            const lOptions = new LoadOptions();
            lOptions.loadFilter = new LoadFilter(LoadDataFilterOptions.All & ~LoadDataFilterOptions.Chart);

            // Load the workbook with the above filter
            const workbook = new Workbook(new Uint8Array(arrayBuffer), lOptions);

            // Create PDF save options and set one page per sheet
            const pOptions = new PdfSaveOptions();
            pOptions.onePagePerSheet = true;

            // Save the workbook in PDF format
            const outputData = workbook.save(SaveFormat.Pdf, pOptions);
            const blob = new Blob([outputData], { type: 'application/pdf' });

            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'sampleFilterCharts.pdf';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download PDF File';

            resultDiv.innerHTML = '<p style="color: green;">Workbook saved to PDF (charts filtered out). Click the download link to get the PDF.</p>';
        });
    </script>
</html>

Filtrera objekt när du laddar kalkylblad

Följande exempelkod laddar den ursprungliga excel-filen och filtrerar följande data från dess kalkylblad med en anpassad filter.

Det filtrerar diagram från kalkylbladet som heter NoCharts.
Det filtrerar former från kalkylbladet som heter NoShapes.
Det filtrerar villkorlig formatering från kalkylbladet som heter NoConditionalFormatting.

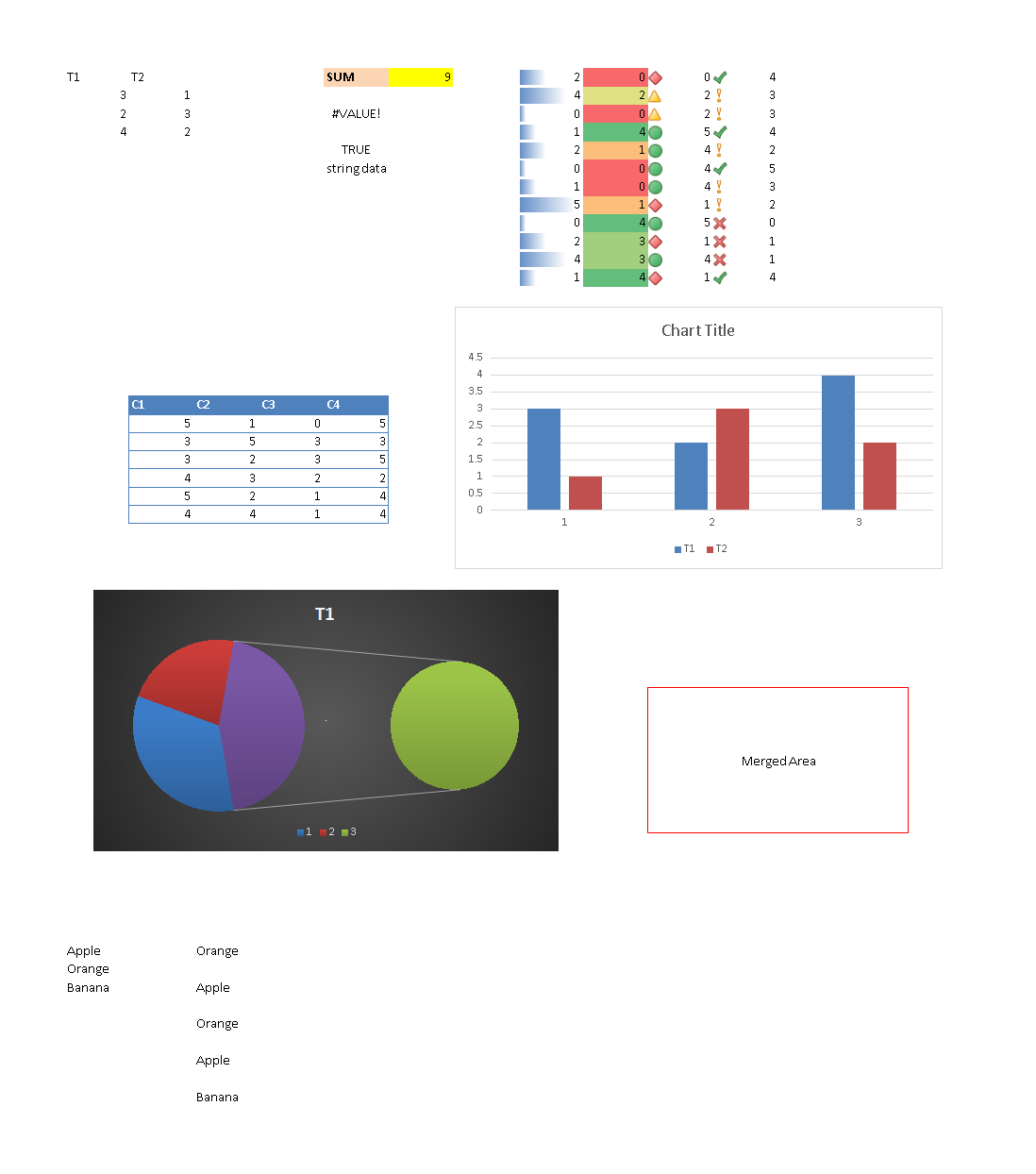

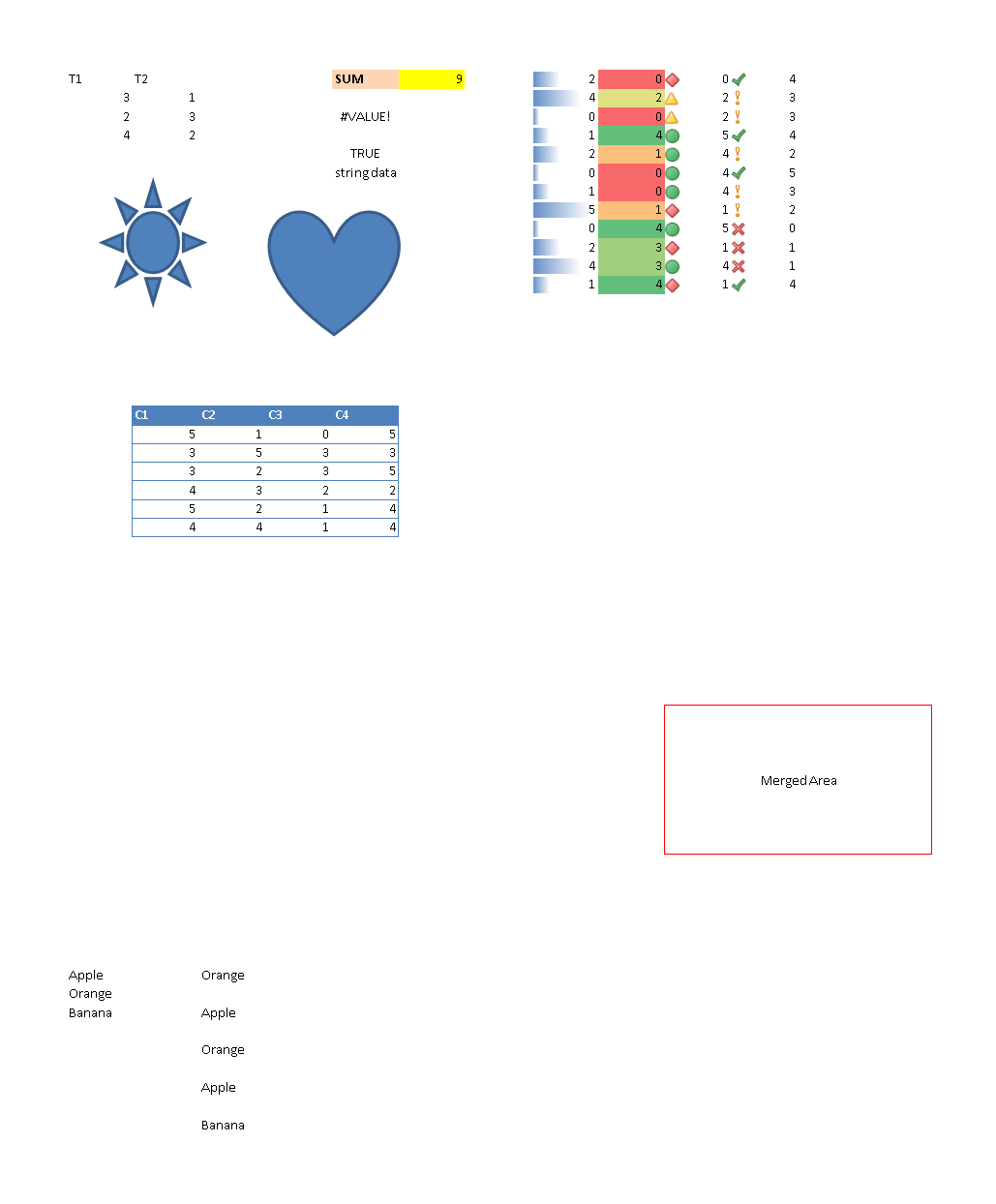

När den laddar ursprungliga excel-filen med en anpassad filter tar den bilderna av alla kalkylblad en efter en. Här är utdata bilderna för din referens. Som du kan se har den första bilden inga diagram, den andra bilden har inga former och den tredje bilden har ingen villkorlig formatering.

<!DOCTYPE html>
<html>
    <head>
        <title>Custom Load Filter Example</title>
    </head>
    <body>
        <h1>Custom Load Filter Example</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        // Converted CustomLoadFilter class
        class CustomLoadFilter extends AsposeCells.LoadFilter {
            startSheet(sheet) {
                if (sheet.name === "NoCharts") {
                    // Load everything and filter charts
                    this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.Chart;
                }

                if (sheet.name === "NoShapes") {
                    // Load everything and filter shapes
                    this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.Drawing;
                }

                if (sheet.name === "NoConditionalFormatting") {
                    // Load everything and filter conditional formatting
                    this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.ConditionalFormatting;
                }
            }
        }

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Instantiating a Workbook object using the uploaded file
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Instantiate and (optionally) attach the custom load filter
            const customFilter = new CustomLoadFilter();
            // If the environment supports assigning a load filter to workbook, set it as a property
            workbook.loadFilter = customFilter;

            // Inform user that the filter class was created and assigned
            document.getElementById('result').innerHTML = '<p style="color: green;">CustomLoadFilter created and assigned to workbook. You can download the (possibly unchanged) workbook below.</p>';

            // Save the workbook back to a downloadable file
            const outputData = workbook.save(SaveFormat.Xlsx);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'output.xlsx';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download Excel File';
        });
    </script>
</html>

Så här använder du klassen CustomLoadFilter enligt kalkylbladsnamn.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
        <meta charset="utf-8" />
        <style>
            body { font-family: Arial, sans-serif; margin: 20px; }
            #downloadList a { display: block; margin: 6px 0; }
            #result p { margin: 8px 0; }
        </style>
    </head>
    <body>
        <h1>Render Worksheets to PNG with Custom Load Filter</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
        <button id="runExample">Run Example</button>
        <div id="result"></div>
        <div id="downloadList"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, LoadOptions, ImageOrPrintOptions, SheetRender, ImageType } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        // Define CustomLoadFilter class (placeholder - adapt as needed)
        // The original JavaScript code referenced a CustomLoadFilter implementation.
        // This minimal implementation can be replaced with actual filtering logic.
        class CustomLoadFilter {
            constructor() {
            }
            // If the AsposeCells runtime expects specific methods on the filter,
            // implement them here. This is a generic placeholder.
        }

        document.getElementById('runExample').addEventListener('click', async () => {
            const resultDiv = document.getElementById('result');
            const downloadList = document.getElementById('downloadList');
            downloadList.innerHTML = '';
            resultDiv.innerHTML = '';

            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Prepare load options and assign custom load filter
            const loadOpts = new LoadOptions();
            loadOpts.loadFilter = new CustomLoadFilter();

            // Instantiate workbook from uploaded file with load options
            const workbook = new Workbook(new Uint8Array(arrayBuffer), loadOpts);

            // Iterate through worksheets and render each to PNG
            const sheetCount = workbook.worksheets.count;
            for (let i = 0; i < sheetCount; i++) {
                const worksheet = workbook.worksheets.get(i);

                // Create image options
                const imageOpts = new ImageOrPrintOptions();
                imageOpts.onePagePerSheet = true;
                imageOpts.imageType = ImageType.Png;

                // Render worksheet to image bytes
                const render = new SheetRender(worksheet, imageOpts);
                const imgBytes = render.toImage(0);

                // Create blob and download link for each rendered image
                const blob = new Blob([imgBytes], { type: 'image/png' });
                const url = URL.createObjectURL(blob);
                const link = document.createElement('a');
                const sheetNameSafe = worksheet.name ? worksheet.name.replace(/[\/\\:?*"<>|]/g, '_') : `sheet${i+1}`;
                link.href = url;
                link.download = `outputCustomFilteringPerWorksheet_${sheetNameSafe}.png`;
                link.textContent = `Download ${link.download}`;
                downloadList.appendChild(link);
            }

            resultDiv.innerHTML = `<p style="color: green;">Rendered ${sheetCount} worksheet(s). Download links are available below.</p>`;
        });
    </script>
</html>
