Dela skärm i Excel arbetsblad med JavaScript via C++
Contents
[
Hide
]
Introduktion
I denna artikel kommer vi att lära oss hur man visar vissa rader och/eller kolumner i separata paneler genom att dela arket i två eller fyra delar. När man arbetar med stora datamängder behöver vi se några delar av samma ark samtidigt för att jämföra olika underuppsättningar av data. Funktionerna för att dela skärmen kan möta dina behov.
Hur man delar skärmen i Excel
För att dela upp ett arbetsblad i två eller fyra delar, gör följande:
- Välj rad/kolumn/cell innan vilken du vill placera uppdelningen.

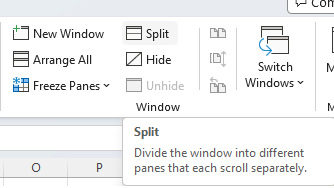

- På fliken Visa, i gruppen Fönster, klicka på knappen Dela.
Dela arbetsblad vertikalt på kolumner
För att separera två områden av kalkylarket vertikalt, välj kolumnen till höger om den kolumn där du vill att uppdelningen ska visas och klicka på Split-knappen i Excel.
Det är enkelt att dela arbetsblad vertikalt på kolumner programatiskt med Aspose.Cells for JavaScript via C++, vi behöver bara välja en cell i översta raden som aktiv cell och sedan dela med Worksheet.split()-metoden.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Set Active Cell and Split Worksheet Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;
const readyPromise = AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
await readyPromise;
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate a new Workbook from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet
const sheet = workbook.worksheets.get(0);
// Sets C1 cell in the top row as the active cell.
sheet.activeCell = "C1";
// Split worksheet vertically on columns
sheet.split();
// Save the modified workbook and prepare download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Worksheet updated successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
Dela arbetsblad horisontellt på rader
För att separera ditt Excel-fönster horisontellt, välj raden under den rad där du vill att uppdelningen ska ske i Excel.
Det är enkelt att dela arbetsblad horisontellt på rader programatiskt med Aspose.Cells for JavaScript via C++, vi behöver bara välja en cell i den vänstra kolumnen som aktiv cell och sedan dela med Worksheet.split()-metoden.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Worksheet, Cell, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Accessing the first worksheet in the Excel file
const sheet = workbook.worksheets.get(0);
// Sets A6 cell in the left column as the active cell.
sheet.activeCell = "A6";
// Split worksheet horizontally on rows
sheet.split();
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'dest.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
Dela arbetsblad i fyra delar
För att visa fyra olika sektioner av samma arbetsblad samtidigt, dela upp skärmen både vertikalt och horisontellt i Excel.
Det är enkelt att dela arbetsblad vertikalt på kolumner programatiskt med Aspose.Cells for JavaScript via C++, vi behöver bara välja en cell som inte är i översta raden och kolumnen som aktiv cell och sedan dela med Worksheet.split()-metoden.
<!DOCTYPE html>
<html>
<head>
<title>Set Active Cell and Split Worksheet Example</title>
</head>
<body>
<h1>Set Active Cell and Split Worksheet Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate a new Workbook from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet
const sheet = workbook.worksheets.get(0);
// Sets E6 cell as the active cell.
sheet.activeCell = "E6";
// Split worksheet into four parts
sheet.split();
// Save the modified workbook and provide a download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Worksheet updated successfully. Click the download link to get the modified file.</p>';
});
</script>
</html>
Hur man tar bort uppdelning
För att ta bort arbetsbladets uppdelning, klicka bara på Split-knappen igen.
Aspose.Cells for JavaScript via C++ tillhandahåller en Worksheet.removeSplit()-metod för att ta bort delingsinställningen.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Split Worksheet Example</title>
</head>
<body>
<h1>Split Worksheet Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate a new Workbook from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
const sheet = workbook.worksheets.get(0);
// Remove split and then split worksheet into four parts
sheet.removeSplit();
sheet.split();
// Save the modified workbook and provide download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Worksheet split operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
