Skapa High Low Close(HLC) aktiediagram med Node.js via C++
Möjliga användningsscenario
High-Low-Close (HLC) aktiediagram använder fyra kolumner av data. Den första kolumnen är en kategori, oftast ett datum men aktie namn kan också användas. Nästa tre kolumner är för höga, låga och stängningspriser. Prisintervallet för varje kategori indikeras av en vertikal linje från lågt till högt, och stängningspriset visas med ett tickmärke som sträcker sig till höger om denna linje.
Synlighetsförbättringar i diagrammet
Ibland, för att göra diagrammet mer intuitivt, kan vi ändra utseendet på markören (stäng) eller få den att visas på den sekundära axeln.
Exempelkod

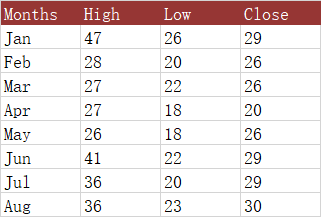

Följande exempelkod laddar exempel Excel-filen och genererar utdatamappar Excel-filen.
const path = require("path");
const AsposeCells = require("aspose.cells.node");
// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "High-Low-Close.xlsx");
// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:D9", true);
// Set category data
chart.getNSeries().setCategoryData("A2:A9");
// Set the marker with the built-in data
chart.getNSeries().get(2).getMarker().setMarkerStyle(AsposeCells.ChartMarkerType.Dash);
chart.getNSeries().get(2).getMarker().setMarkerSize(20);
chart.getNSeries().get(2).getMarker().getArea().setFormatting(AsposeCells.FormattingType.Custom);
chart.getNSeries().get(2).getMarker().getArea().setForegroundColor(AsposeCells.Color.Maroon);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
