JavaScript ile Çizgili Pasta Grafik Oluşturma C++ ile
Contents
[
Hide
]
Bu makale, C++ API kullanarak sıfırdan lider çizgili pasta grafiği oluşturma sürecini anlatır. Excel’de, ‘Lider çizgilerini göster’ seçeneği varsayılan olarak açıktır, bu yüzden Excel’de pasta grafiği oluşturduğunuzda lider çizgileri gösterilir. Ancak, Aspose.Cells API’leri ile benzer bir grafik oluştururken, Series.hasLeaderLines özelliğini açıkça ayarlamanız gerekir.
İpucu çizgileri ile birlikte pasta grafik oluşturmada Aspose.Cells for JavaScript’in C++ API kullanımı göstermek için öncelikle yeni bir Workbook oluşturacağız ve seri veri kaynağı olarak hizmet edecek bazı verileri gireceğiz. Veriler yerleştirildikten sonra, koleksiyona ChartType.Pie tipinde bir Chart ekleyeceğiz ve istenen grafik görünümünü elde etmek için farklı yönlerini ayarlayacağız.
<!DOCTYPE html>
<html>
<head>
<title>Create Pie Chart Example</title>
</head>
<body>
<h1>Create Pie Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, ChartType, LabelPositionType, DataLabelsSeparatorType } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet
const worksheet = workbook.worksheets.get(0);
// Add two columns of data
worksheet.cells.get("A1").putValue("Retail");
worksheet.cells.get("A2").putValue("Services");
worksheet.cells.get("A3").putValue("Info & Communication");
worksheet.cells.get("A4").putValue("Transport Equip");
worksheet.cells.get("A5").putValue("Construction");
worksheet.cells.get("A6").putValue("Other Products");
worksheet.cells.get("A7").putValue("Wholesale");
worksheet.cells.get("A8").putValue("Land Transport");
worksheet.cells.get("A9").putValue("Air Transport");
worksheet.cells.get("A10").putValue("Electric Appliances");
worksheet.cells.get("A11").putValue("Securities");
worksheet.cells.get("A12").putValue("Textiles & Apparel");
worksheet.cells.get("A13").putValue("Machinery");
worksheet.cells.get("A14").putValue("Metal Products");
worksheet.cells.get("A15").putValue("Cash");
worksheet.cells.get("A16").putValue("Banks");
worksheet.cells.get("B1").putValue(10.4);
worksheet.cells.get("B2").putValue(5.2);
worksheet.cells.get("B3").putValue(6.4);
worksheet.cells.get("B4").putValue(10.4);
worksheet.cells.get("B5").putValue(7.9);
worksheet.cells.get("B6").putValue(4.1);
worksheet.cells.get("B7").putValue(3.5);
worksheet.cells.get("B8").putValue(5.7);
worksheet.cells.get("B9").putValue(3);
worksheet.cells.get("B10").putValue(14.7);
worksheet.cells.get("B11").putValue(3.6);
worksheet.cells.get("B12").putValue(2.8);
worksheet.cells.get("B13").putValue(7.8);
worksheet.cells.get("B14").putValue(2.4);
worksheet.cells.get("B15").putValue(1.8);
worksheet.cells.get("B16").putValue(10.1);
// Create a pie chart and add it to the collection of charts
const id = worksheet.charts.add(ChartType.Pie, 3, 3, 23, 13);
// Access newly created Chart instance
const chart = worksheet.charts.get(id);
// Set series data range
chart.nSeries.add("B1:B16", true);
// Set category data range
chart.nSeries.categoryData = "A1:A16";
// Turn off legend
chart.showLegend = false;
// Access data labels
const dataLabels = chart.nSeries.get(0).dataLabels;
// Turn on category names
dataLabels.showCategoryName = true;
// Turn on percentage format
dataLabels.showPercentage = true;
// Set position
dataLabels.position = LabelPositionType.OutsideEnd;
// Set separator
dataLabels.separatorType = DataLabelsSeparatorType.Comma;
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
resultDiv.innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>

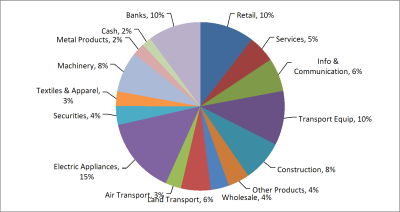

Şimdiye kadar bir pasta grafiği oluşturduk ve farklı yönlerini ayarladık. Şimdi grafiğin lider çizgilerini açmaya hazırlanıyoruz. Lütfen unutmayın, lider çizgileri göstermek için veri etiketlerini biraz hareket ettirmemiz gerekiyor.
Aşağıdaki kod parçası lider çizgileri açar, grafiği yeniler ve ardından veri etiketlerinin konumlarını uygun şekilde hareket ettirir.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Pie Chart Example</title>
</head>
<body>
<h1>Aspose.Cells Pie Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, ChartType, LabelPositionType, DataLabelsSeparatorType } = AsposeCells;
const initPromise = AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
await initPromise;
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object by opening the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet
const worksheet = workbook.worksheets.get(0);
const cells = worksheet.cells;
// Add two columns of data
cells.get("A1").value = "Retail";
cells.get("A2").value = "Services";
cells.get("A3").value = "Info & Communication";
cells.get("A4").value = "Transport Equip";
cells.get("A5").value = "Construction";
cells.get("A6").value = "Other Products";
cells.get("A7").value = "Wholesale";
cells.get("A8").value = "Land Transport";
cells.get("A9").value = "Air Transport";
cells.get("A10").value = "Electric Appliances";
cells.get("A11").value = "Securities";
cells.get("A12").value = "Textiles & Apparel";
cells.get("A13").value = "Machinery";
cells.get("A14").value = "Metal Products";
cells.get("A15").value = "Cash";
cells.get("A16").value = "Banks";
cells.get("B1").value = 10.4;
cells.get("B2").value = 5.2;
cells.get("B3").value = 6.4;
cells.get("B4").value = 10.4;
cells.get("B5").value = 7.9;
cells.get("B6").value = 4.1;
cells.get("B7").value = 3.5;
cells.get("B8").value = 5.7;
cells.get("B9").value = 3;
cells.get("B10").value = 14.7;
cells.get("B11").value = 3.6;
cells.get("B12").value = 2.8;
cells.get("B13").value = 7.8;
cells.get("B14").value = 2.4;
cells.get("B15").value = 1.8;
cells.get("B16").value = 10.1;
// Create a pie chart and add it to the collection of charts
const id = worksheet.charts.add(ChartType.Pie, 3, 3, 23, 13);
// Access newly created Chart instance
const chart = worksheet.charts.get(id);
// Set series data range
chart.nSeries.add("B1:B16", true);
// Set category data range
chart.nSeries.categoryData = "A1:A16";
// Turn off legend
chart.showLegend = false;
// Access data labels
const dataLabels = chart.nSeries.get(0).dataLabels;
// Turn on category names
dataLabels.showCategoryName = true;
// Turn on percentage format
dataLabels.showPercentage = true;
// Set position
dataLabels.position = LabelPositionType.OutsideEnd;
// Set separator
dataLabels.separatorType = DataLabelsSeparatorType.Comma;
// Turn on leader lines
chart.nSeries.get(0).hasLeaderLines = true;
// Calculate chart
chart.calculate();
// You need to move DataLabels a little leftward or rightward depending on their position to show leader lines
const DELTA = 100;
const series0 = chart.nSeries.get(0);
for (let i = 0; i < series0.points.count; i++) {
const pt = series0.points.get(i);
let X = pt.dataLabels.x;
// If it is greater than 2000, then move the X position a little right otherwise move the X position a little left
if (X > 2000)
pt.dataLabels.x = X + DELTA;
else
pt.dataLabels.x = X - DELTA;
}
// Save the modified Excel file and provide download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
Son olarak, aşağıdaki kod çizgiyi görüntü formatında ve çalışma kitabını XLSX formatında kaydeder.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Create Pie Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none; margin-right: 10px;">Download Excel File</a>
<a id="downloadImageLink" style="display: none;">Download Chart Image</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
resultDiv.innerHTML = '';
// If a file is provided, load it. Otherwise create a new workbook in XLSX format.
let workbook;
if (fileInput.files && fileInput.files.length > 0) {
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
workbook = new Workbook(new Uint8Array(arrayBuffer));
} else {
workbook = new Workbook(AsposeCells.FileFormatType.Xlsx);
}
// Access the first worksheet
const worksheet = workbook.worksheets.get(0);
// Add two columns of data
worksheet.cells.get("A1").putValue("Retail");
worksheet.cells.get("A2").putValue("Services");
worksheet.cells.get("A3").putValue("Info & Communication");
worksheet.cells.get("A4").putValue("Transport Equip");
worksheet.cells.get("A5").putValue("Construction");
worksheet.cells.get("A6").putValue("Other Products");
worksheet.cells.get("A7").putValue("Wholesale");
worksheet.cells.get("A8").putValue("Land Transport");
worksheet.cells.get("A9").putValue("Air Transport");
worksheet.cells.get("A10").putValue("Electric Appliances");
worksheet.cells.get("A11").putValue("Securities");
worksheet.cells.get("A12").putValue("Textiles & Apparel");
worksheet.cells.get("A13").putValue("Machinery");
worksheet.cells.get("A14").putValue("Metal Products");
worksheet.cells.get("A15").putValue("Cash");
worksheet.cells.get("A16").putValue("Banks");
worksheet.cells.get("B1").putValue(10.4);
worksheet.cells.get("B2").putValue(5.2);
worksheet.cells.get("B3").putValue(6.4);
worksheet.cells.get("B4").putValue(10.4);
worksheet.cells.get("B5").putValue(7.9);
worksheet.cells.get("B6").putValue(4.1);
worksheet.cells.get("B7").putValue(3.5);
worksheet.cells.get("B8").putValue(5.7);
worksheet.cells.get("B9").putValue(3);
worksheet.cells.get("B10").putValue(14.7);
worksheet.cells.get("B11").putValue(3.6);
worksheet.cells.get("B12").putValue(2.8);
worksheet.cells.get("B13").putValue(7.8);
worksheet.cells.get("B14").putValue(2.4);
worksheet.cells.get("B15").putValue(1.8);
worksheet.cells.get("B16").putValue(10.1);
// Create a pie chart and add it to the collection of charts
const id = worksheet.charts.add(AsposeCells.ChartType.Pie, 3, 3, 23, 13);
// Access newly created Chart instance
const chart = worksheet.charts.get(id);
// Set series data range
chart.nSeries.add("B1:B16", true);
// Set category data range
chart.nSeries.categoryData = "A1:A16";
// Turn off legend
chart.showLegend = false;
// Access data labels
const dataLabels = chart.nSeries.get(0).dataLabels;
// Turn on category names
dataLabels.showCategoryName = true;
// Turn on percentage format
dataLabels.showPercentage = true;
// Set position
dataLabels.position = AsposeCells.LabelPositionType.OutsideEnd;
// Set separator
dataLabels.separatorType = AsposeCells.DataLabelsSeparatorType.Comma;
// In order to save the chart image, create an instance of ImageOrPrintOptions
const anOption = new AsposeCells.ImageOrPrintOptions();
// Set image format
anOption.imageType = AsposeCells.ImageType.Png;
// Set resolution
anOption.horizontalResolution = 200;
anOption.verticalResolution = 200;
// Render chart to image (returns image byte array in browser)
const imageData = chart.toImage(anOption);
const imageBlob = new Blob([imageData], { type: 'image/png' });
const downloadImageLink = document.getElementById('downloadImageLink');
downloadImageLink.href = URL.createObjectURL(imageBlob);
downloadImageLink.download = 'output_out.png';
downloadImageLink.style.display = 'inline-block';
downloadImageLink.textContent = 'Download Chart Image';
// Save the workbook to see chart inside the Excel
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output_out.xlsx';
downloadLink.style.display = 'inline-block';
downloadLink.textContent = 'Download Excel File';
resultDiv.innerHTML = '<p style="color: green;">Chart created and files are ready. Click the download links to get the results.</p>';
});
</script>
</html>
| Sonuçta Oluşan Pasta Grafiği |
|---|
 |
Gelişmiş Konular
- Pasta Grafiğinde Özel Dilim veya Sektör Renkleri
- Bir Pasta-grafik veya Çubuk-grafikte Veri Noktalarının İkinci Pasta’nın veya Pasta’nın Çubuğu’nun Üzerinde Olup Olmadığını Bulma
