Node.js kullanarak Açık Yüksek Düşük Kapanış (OHLC) Stok Grafik oluşturma
Olası Kullanım Senaryoları

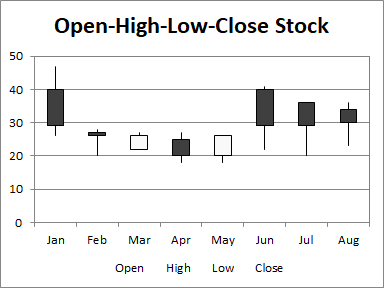

Açık-Yüksek-Düşük-Kapalı (OHLC) grafiği beş veri sütununu kullanır: kategori, açılış, yüksek, düşük ve kapanış sırasıyla. Her kategori için fiyat aralığı yine dikey bir çizgi ile gösterilirken, açılış ve kapanış arasındaki aralık daha geniş bir kayan çubukla gösterilir; eğer fiyat kategoride artarsa (kapanış, açılıştan yüksekse), çubuk bir renkle doldurulur, fiyat azalırsa başka bir renkle doldurulur. Bu tür bir grafik sıklıkla mum grafik olarak adlandırılır.
Grafikte görünürlük iyileştirmeleri

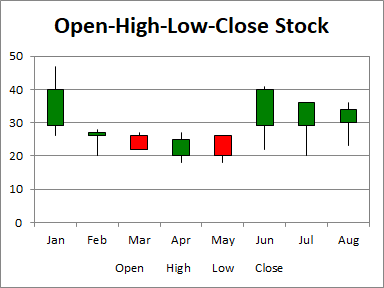

Fiyatların artış ve azalışını göstermek için sıkça renkler kullanırız, siyah-beyaz yerine. Aşağıdaki ilk mum çubuğu setinde kırmızı artışları, yeşil azalışları gösterir.
Örnek Kod
Aşağıdaki örnek kod, örnek Excel dosyasını yükler ve çıktı Excel dosyasını oluşturur.
const AsposeCells = require("aspose.cells.node");
const path = require("path");
// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "Open-High-Low-Close.xlsx");
// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockOpenHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Open-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:E9", true);
// Set category data
chart.getNSeries().getCategoryData("A2:A9");
// Set the DownBars and UpBars with different color
chart.getNSeries().get(0).getDownBars().getArea().setForegroundColor(AsposeCells.Color.Green);
chart.getNSeries().get(0).getUpBars().getArea().setForegroundColor(AsposeCells.Color.Red);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
