Node.js ve C++ kullanarak Hacim Açık Yüksek Düşük Kapanış (VOHLC) Hisse Senedi Grafiği Oluşturma

Olası Kullanım Senaryoları

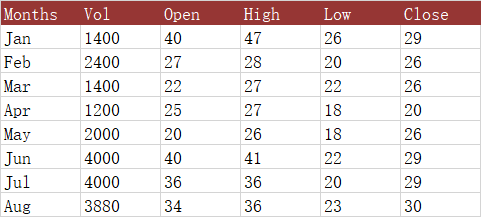

Dördüncü hisse senedi grafiğimiz Hacim Açık Yüksek Düşük Kapanış grafiği. Yine, verilerin doğru sırada olması gerektiğini tekrar etmek önemlidir. Verilerinizi yeniden düzenlemeniz gerekiyorsa, grafiği kurmadan önce yapmalısınız. Bu grafik, ilk (kategori) sütunundan hemen sonra bir hacim sütunu içerir ve grafikler bu hacmi gösteren bir ana eksende, fiyatlar ise ikincil eksende yer alır.

todo:image_alt_text

Hacim-Açılış-Yüksek-Düşük-Kapanış (VAYDK) hisse senedi grafiği

todo:image_alt_text

Örnek Kod

Aşağıdaki örnek kod, örnek Excel dosyasını yükler ve çıktı Excel dosyasını oluşturur.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "Volume-Open-High-Low-Close.xlsx");

// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockVolumeOpenHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Volume-Open-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:F9", true);
// Set category data
chart.getNSeries().setCategoryData("A2:A9");
// Set Color for the first series (Volume) data
chart.getNSeries().get(0).getArea().setForegroundColor(new AsposeCells.Color(79, 129, 189));
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
