Node.js ile C++ üzerinden TreeMap grafiği nasıl oluşturulur

Olası Kullanım Senaryoları

Ağaç haritası grafiği verilerinizin hiyerarşik bir görünümünü sağlar ve hangi ürünlerin bir mağazanın en çok satanları olduğunu görmek gibi desenleri kolayca belirlemenize olanak tanır. Ağaç dalları dikdörtgenlerle temsil edilir ve her alt dal daha küçük bir dikdörtgen olarak gösterilir. Ağaç haritası grafikleri kategorileri renk ve yakınlıkla gösterir ve diğer grafik türleri ile zor olacak birçok veriyi kolayca gösterebilir.

todo:image_alt_text

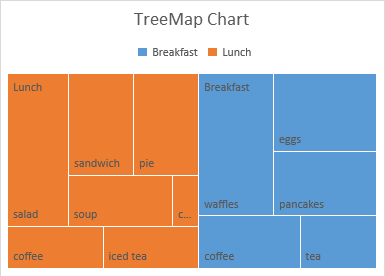

Ağaç Haritası Grafiği

Aşağıdaki kodu çalıştırdıktan sonra, aşağıdaki gibi Ağaç Haritası grafiğini göreceksiniz.

todo:image_alt_text

Örnek Kod

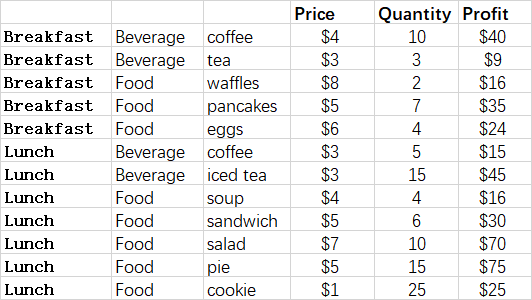

Aşağıdaki örnek kod örnek Excel dosyasını yükler ve çıktı Excel dosyasını oluşturur.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "treemap.xlsx");
// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet
const worksheet = workbook.getWorksheets().get(0);
// Add a Treemap chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.Treemap, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("TreeMap Chart");
// Add series data range(D2:D13,actually)
chart.getNSeries().add("D2:F13", true);
// Set category data(A2:A13 is incorrect )
chart.getNSeries().setCategoryData("A2:C13");
// Show the DataLabels with category names
chart.getNSeries().get(0).getDataLabels().setShowCategoryName(true);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
