Node.js ile C++ kullanarak Excel dosyalarına Resimler ve Şekiller Ekleme

Excel’deki şekiller esasen aşağıdaki türlere ayrılır:

  • Resimler
  • OleObjects
  • Çizgiler
  • Dikdörtgenler
  • Temel Şekiller
  • Blok Okları
  • Denklem Şekilleri
  • Akış Şemaları
  • Yıldızlar ve Pankartlar
  • Çağrılar

Bu kılavuz belgesi, her türden bir veya iki şekli örnek olarak seçecek. Bu örnekler aracılığıyla, Aspose.Cells kullanarak belirli şekli çalışma sayfasına nasıl ekleyeceğinizi öğreneceksiniz.

Node.js kullanarak Excel çalışma sayfasına Resim Ekleme

Bir elektron mikroskobuna resim eklemek çok kolaydır. Sadece birkaç satır kod gerektirir:
Sadece PictureCollection.add(number, number, number, number, Uint8Array) metodunu çağırın ve Pictures koleksiyonunu kullanarak (bunun içinde Worksheet nesnesi). PictureCollection.add(number, number, number, number, Uint8Array) metodu aşağıdaki parametreleri alır:

  • Sol üst satır dizini, sol üst sütunun dizini.
  • Sol üst sütun dizini, sol üst sütunun dizini.
  • Resim dosya adı, yol bilgisi ile birlikte resim dosyasının adı.
const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");

// Instantiating a Workbook object
const workbook = new AsposeCells.Workbook();

// Adding a new worksheet to the Workbook object
const sheetIndex = workbook.getWorksheets().add();

// Obtaining the reference of the newly added worksheet by passing its sheet index
const worksheet = workbook.getWorksheets().get(sheetIndex);

// Adding a picture at the location of a cell whose row and column indices
// Are 5 in the worksheet. It is "F6" cell
worksheet.getPictures().add(5, 5, path.join(dataDir, "logo.jpg"));

// Saving the Excel file
workbook.save(path.join(dataDir, "output.xls"));

Node.js kullanarak Excel Çalışma Sayfasına OLE Nesnesi Ekleme

Aspose.Cells, çalışma sayfalarında OLE nesneleri ekleme, çıkarma ve düzenleme desteği sağlar. Bu nedenle, Aspose.Cells, koleksiyon listesine yeni bir OLE Nesnesi ekmek için kullanılan OleObjectCollection sınıfına sahiptir. Diğer bir sınıf olan OleObject, bir OLE Nesnesini temsil eder. Bazı önemli üyeleri şunlardır:

  • OleObject.getImageData() özelliği, bayt dizisi biçiminde olan resim (simge) verisini belirtir. Bu görüntü, çalışma sayfasında OLE Nesnesini göstermek için gösterilecektir.
  • OleObject.getObjectData() özelliği, nesne verisini bayt dizisi biçiminde belirtir. Bu veriyi çift tıklayarak ilgili programda gösterilir.

Aşağıdaki örnek, çalışsayan elemanları çalışsayan eleman(lar)ı çalışsayan eleman yapıştırma.

const path = require("path");
const fs = require("fs");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");

// Instantiate a new Workbook.
const workbook = new AsposeCells.Workbook();

// Get the first worksheet.
const sheet = workbook.getWorksheets().get(0);

// Define a string variable to store the image path.
const imageUrl = path.join(dataDir, "logo.jpg");

// Get the picture into the streams.
const imageData = fs.readFileSync(imageUrl);

// Get an excel file path in a variable.
const excelFilePath = path.join(dataDir, "book1.xls");

// Get the file into the streams.
const objectData = fs.readFileSync(excelFilePath);

// Add an Ole object into the worksheet with the image
// Shown in MS Excel.
sheet.getOleObjects().add(14, 3, 200, 220, imageData);

// Set embedded ole object data.
sheet.getOleObjects().get(0).setObjectData(objectData);

// Save the excel file
workbook.save(path.join(dataDir, "output.out.xls"));

Node.js kullanarak Excel Çalışma Sayfasına Çizgi Ekleme

Çizgi şekli, çizgiler kategorisine aittir.

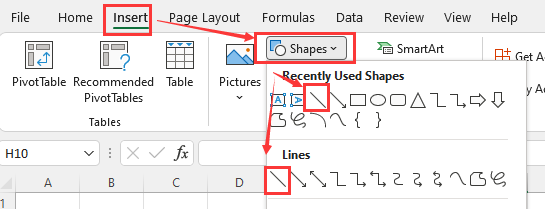

Microsoft Excel’de (örneğin 2007):

  • Satırı eklemek istediğiniz hücreyi seçin
  • Insert menüsünü tıklayın ve Şekiller’e tıklayın.
  • Daha sonra, ‘Son Kullanılan Şekiller’ veya ‘Çizgiler’ arasından çizgiyi seçin

Aspose.Cells Kullanarak

Çalışma sayfasına bir satır eklemek için aşağıdaki yöntemi kullanabilirsiniz.

Aşağıdaki örnek, bir çalışma sayfasına nasıl çizgi ekleyeceğinizi gösterir.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Create workbook from sample file
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the line to the worksheet
sheet.getShapes().addLine(2, 0, 2, 0, 100, 300); // method 1
// sheet.getShapes().addAutoShape(AutoShapeType.Line, 2, 0, 2, 0, 100, 300); // method 2
// sheet.getShapes().addShape(MsoDrawingType.Line, 2, 0, 2, 0, 100, 300); // method 3

// Save. You can check your line in this way.
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

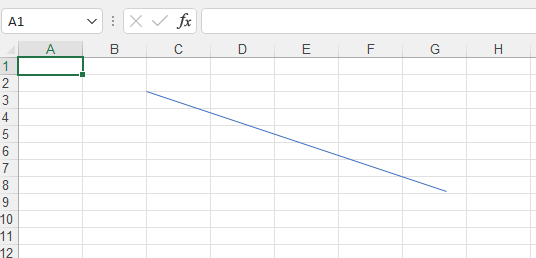

Yukarıdaki kodu çalıştırın, aşağıdaki sonuçları elde edersiniz:

Node.js kullanarak Excel Çalışma Sayfasına Çizgi okuğu Ekleme

Çizgi okuğu şekli, Çizgiler kategorisine aittir. Bu, çizginin özel bir durumudur.

Microsoft Excel’de (örneğin 2007):

  • Ok satırını eklemek istediğiniz hücreyi seçin
  • Insert menüsünü tıklayın ve Şekiller’e tıklayın.
  • Daha sonra, ‘Son Kullanılan Şekiller’ veya ‘Çizgiler’ arasından çizgi okuğu seçin

Aspose.Cells Kullanarak

Çalışma sayfasına bir ok satırı eklemek için aşağıdaki yöntemi kullanabilirsiniz.

Aşağıdaki örnek, bir çalışma sayfasına nasıl çizgi okuğu ekleyeceğinizi gösterir.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the line arrow to the worksheet
let s = sheet.getShapes().addLine(2, 0, 2, 0, 100, 300); // method 1
// let s = sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.Line, 2, 0, 2, 0, 100, 300); // method 2
// let s = sheet.getShapes().addShape(AsposeCells.MsoDrawingType.Line, 2, 0, 2, 0, 100, 300); // method 3

// add a arrow at the line begin
s.getLine().setBeginArrowheadStyle(AsposeCells.MsoArrowheadStyle.Arrow); // arrow type
s.getLine().setBeginArrowheadWidth(AsposeCells.MsoArrowheadWidth.Wide); // arrow width
s.getLine().setBeginArrowheadLength(AsposeCells.MsoArrowheadLength.Short); // arrow length

// add a arrow at the line end
s.getLine().setEndArrowheadStyle(AsposeCells.MsoArrowheadStyle.ArrowOpen); // arrow type
s.getLine().setEndArrowheadWidth(AsposeCells.MsoArrowheadWidth.Narrow); // arrow width
s.getLine().setEndArrowheadLength(AsposeCells.MsoArrowheadLength.Long); // arrow length

// Save. You can check your arrow in this way.
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

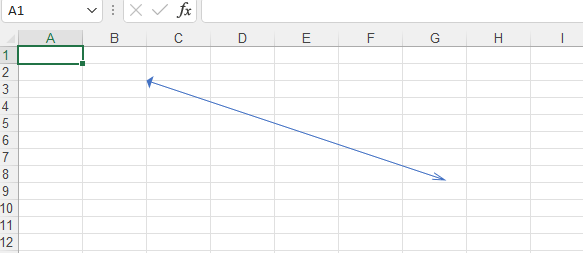

Yukarıdaki kodu çalıştırın, aşağıdaki sonuçları elde edersiniz:

Node.js kullanarak Excel Çalışma Sayfasına Dikdörtgen Ekleme

Dikdörtgen şekli, Dikdörtgenler kategorisine aittir.

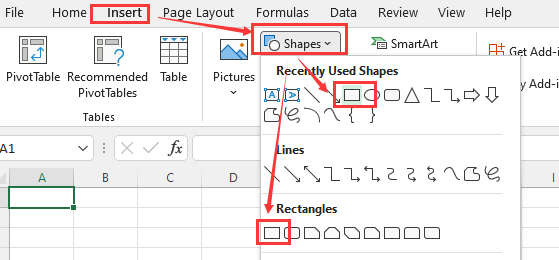

Microsoft Excel’de (örneğin 2007):

  • Dikdörtgeni eklemek istediğiniz hücreyi seçin
  • Insert menüsünü tıklayın ve Şekiller’e tıklayın.
  • Daha sonra, ‘Son Kullanılan Şekiller’ veya ‘Dikdörtgenler’ arasından dikdörtgeni seçin

Aspose.Cells Kullanarak

Çalışma sayfasına bir dikdörtgen eklemek için aşağıdaki yöntemi kullanabilirsiniz.

Aşağıdaki örnek, bir çalışma sayfasına nasıl dikdörtgen ekleyeceğinizi gösterir.

const AsposeCells = require("aspose.cells.node");
const path = require("path");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Create workbook from sample file
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the rectangle to the worksheet
sheet.getShapes().addRectangle(2, 0, 2, 0, 100, 300);

// Save
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

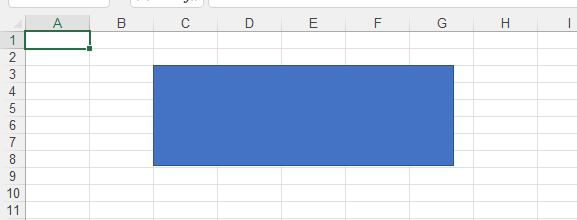

Yukarıdaki kodu çalıştırın, aşağıdaki sonuçları elde edersiniz:

Node.js kullanarak Excel Çalışma Sayfasına Bir Küp Ekleyin

Küpün şekli Temel Şekiller kategorisine aittir.

Microsoft Excel’de (örneğin 2007):

  • Küpü eklemek istediğiniz hücreyi seçin
  • Insert menüsünü tıklayın ve Şekiller’e tıklayın.
  • Ardından, Temel Şekiller‘den Küpü seçin

Aspose.Cells Kullanarak

Çalışma sayfasına bir küp eklemek için aşağıdaki yöntemi kullanabilirsiniz.

Aşağıdaki örnek, bir çalışma sayfasına küp nasıl ekleneceğini gösterir.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the cube to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.Cube, 2, 0, 2, 0, 100, 300);

// Save. You can check your cube in this way.
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

Yukarıdaki kodu çalıştırın, aşağıdaki sonuçları elde edersiniz:

Node.js kullanarak Excel Çalışma Sayfasına Bir çağrı kutusu dörtlü ok ekleyin

Çağrı kutusu dörtlü ok şekli Blok Oklar kategorisine aittir.

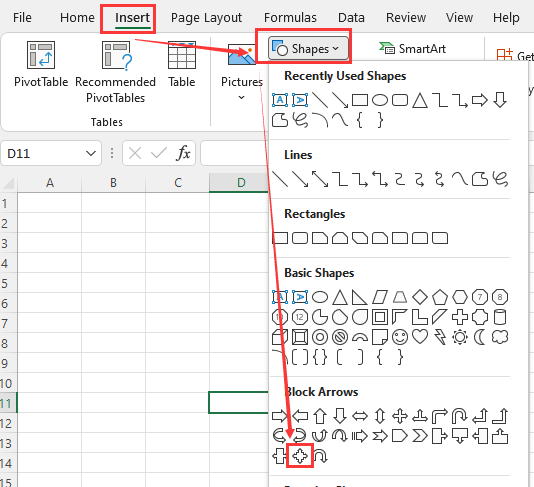

Microsoft Excel’de (örneğin 2007):

  • Çağrı ok dört ok eklemek istediğiniz hücreyi seçin
  • Insert menüsünü tıklayın ve Şekiller’e tıklayın.
  • Ardından, Blok Oklar‘dan çağrı kutusu dörtlü ok seçin

Aspose.Cells Kullanarak

Çalışma sayfasına bir çağrı oku dört ok eklemek için aşağıdaki yöntemi kullanabilirsiniz.

Aşağıdaki örnek, bir çalışma sayfasına çağrı kutusu dörtlü ok nasıl eklenir gösterir.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the callout quad arrow to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.QuadArrowCallout, 2, 0, 2, 0, 100, 100);

//Save
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

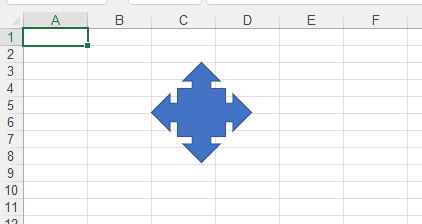

Yukarıdaki kodu çalıştırın, aşağıdaki sonuçları elde edersiniz:

Node.js kullanarak Excel Çalışma Sayfasına Çarpım İşareti Ekleyin

Çarpım işaretinin şekli Denklem Şekilleri kategorisine aittir.

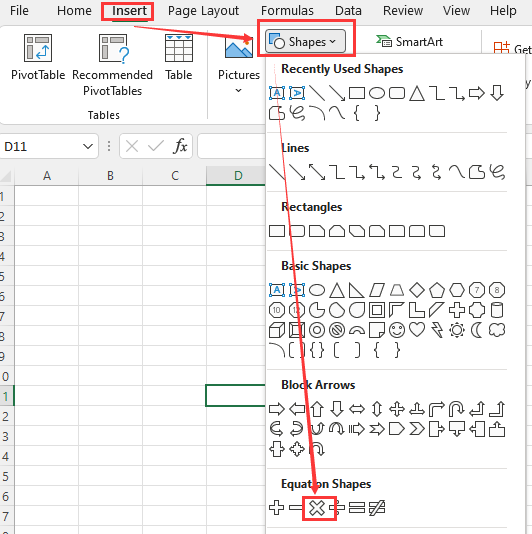

Microsoft Excel’de (örneğin 2007):

  • Çarpma işareti eklemek istediğiniz hücreyi seçin
  • Insert menüsünü tıklayın ve Şekiller’e tıklayın.
  • Ardından, Denklem Şekilleri‘nden çarpım işaretini seçin

Aspose.Cells Kullanarak

Çarpma işaretini çalışma sayfasına eklemek için aşağıdaki yöntemi kullanabilirsiniz.

Aşağıdaki örnek, bir çalışma sayfasına çarpım işareti nasıl eklenir gösterir.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the multiplication sign to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.MathMultiply, 2, 0, 2, 0, 100, 100);

// Save. You can check your multiplication in this way.
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

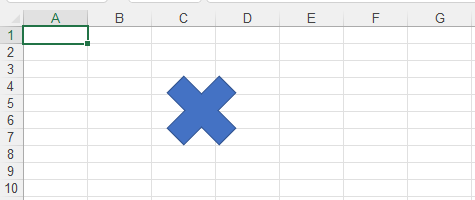

Yukarıdaki kodu çalıştırın, aşağıdaki sonuçları elde edersiniz:

Node.js kullanarak Çoklu Belge Ekleyin

Çoklu belgenin şekli Akış Diyagramları kategorisine aittir.

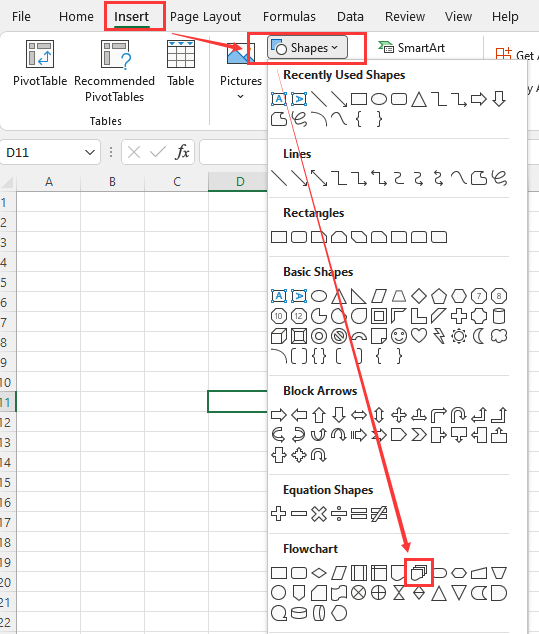

Microsoft Excel’de (örneğin 2007):

  • Çoklu belgeyi eklemek istediğiniz hücreyi seçin
  • Insert menüsünü tıklayın ve Şekiller’e tıklayın.
  • Ardından, Akış Diyagramları‘ndan çoklu belgeyi seçin

Aspose.Cells Kullanarak

Çalışma sayfasına çoklu belge eklemek için aşağıdaki yöntemi kullanabilirsiniz.

Aşağıdaki örnek, bir çalışma sayfasına çoklu belge nasıl eklenir gösterir.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Create workbook from sample file
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the multidocument to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.FlowChartMultidocument, 2, 0, 2, 0, 100, 100);

// Save
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

Yukarıdaki kodu çalıştırın, aşağıdaki sonuçları elde edersiniz:

Node.js kullanarak Excel Çalışma Sayfasına Beş Uçlu Yıldız Ekleyin

Beş Uçlu Yıldızın şekli Yıldızlar ve Bayraklar kategorisine aittir.

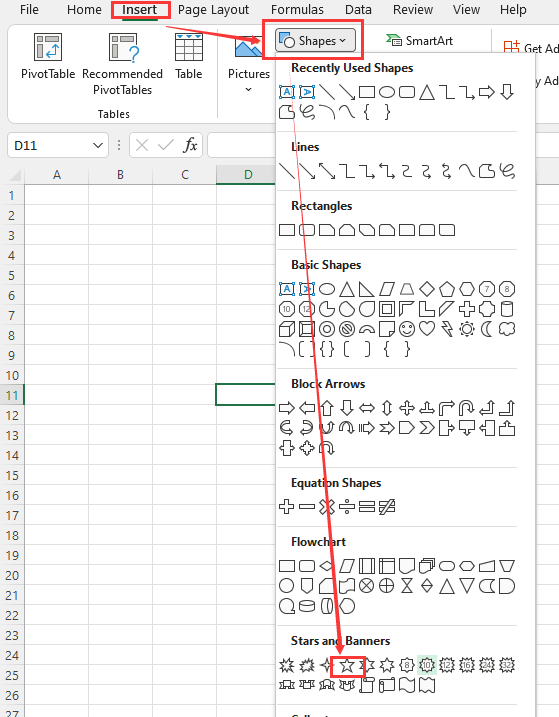

Microsoft Excel’de (örneğin 2007):

  • Beş köşeli yıldızı eklemek istediğiniz hücreyi seçin
  • Insert menüsünü tıklayın ve Şekiller’e tıklayın.
  • Ardından, Yıldızlar ve Bayraklar‘ndan Beş Uçlu Yıldızı seçin

Aspose.Cells Kullanarak

Çalışma sayfasına beş köşeli yıldız eklemek için aşağıdaki yöntemi kullanabilirsiniz.

Aşağıdaki örnek, bir çalışma sayfasına Beş Uçlu Yıldız nasıl eklenir gösterir.

const AsposeCells = require("aspose.cells.node");
const path = require("path");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Create workbook from sample file
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the Five-pointed star to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.Star5, 2, 0, 2, 0, 100, 100);

// Save. You can check your icon in this way.
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

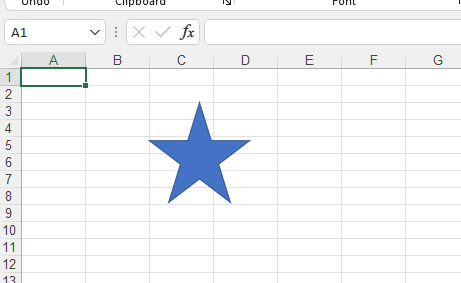

Yukarıdaki kodu çalıştırın, aşağıdaki sonuçları elde edersiniz:

Node.js kullanarak Düşünce Balonu Bulutunu Excel Çalışma Sayfasına Ekleyin

Düşünce balonu bulutunun şekli Çağrı kategorisine aittir.

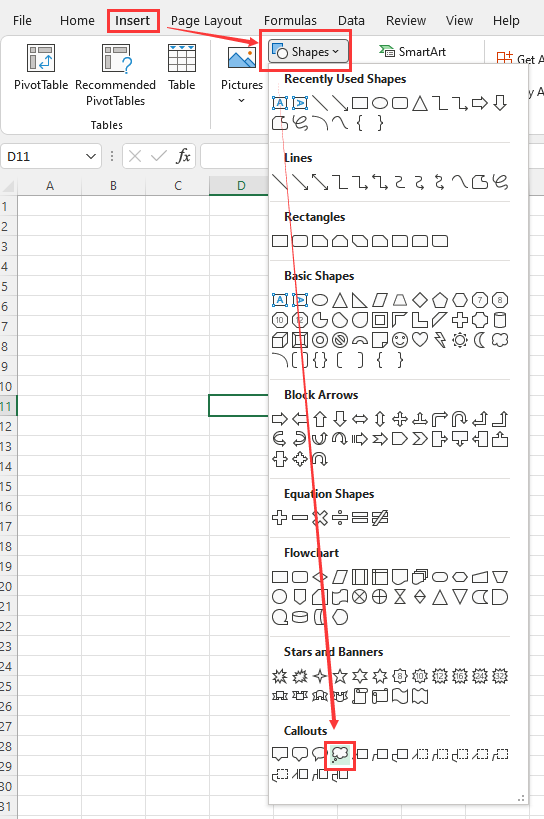

Microsoft Excel’de (örneğin 2007):

  • Düşünce balonu bulutu eklemek istediğiniz hücreyi seçin
  • Insert menüsünü tıklayın ve Şekiller’e tıklayın.
  • Ardından, Çağrı‘dan Düşünce Balonu Bulutunu seçin

Aspose.Cells Kullanarak

Çalışma sayfasına düşünce balonu bulutu eklemek için aşağıdaki yöntemi kullanabilirsiniz.

Aşağıdaki örnek, bir çalışma sayfasına Düşünce Balonu Bulutu nasıl eklenir gösterir.

const AsposeCells = require("aspose.cells.node");
const path = require("path");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the thought bubble cloud to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.CloudCallout, 2, 0, 2, 0, 100, 100);

// Save
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

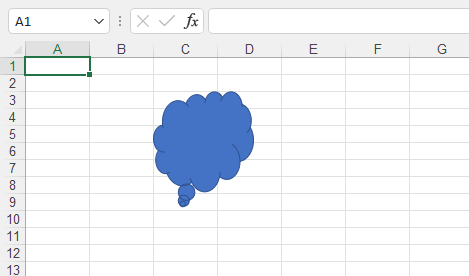

Yukarıdaki kodu çalıştırın, aşağıdaki sonuçları elde edersiniz:

Gelişmiş Konular
