Excel Grafiklerinin Başlıklarını Yönetme
Excel grafiklerinde 2 türde başlık bulunur:
- Grafik Başlığı
- Eksen Başlıkları
Başlık Seçenekleri
Aspose.Cells for Python via .NET, ayrıca grafiklerin başlıklarını çalışma zamanı yönetmenize olanak sağlar; Başlık nesnesi ile başlık metnini, yazı tipini ve dolgu desenini değiştirebilirsiniz.
||
Grafiğin veya Eksenlerin Başlıklarını Ayarlama

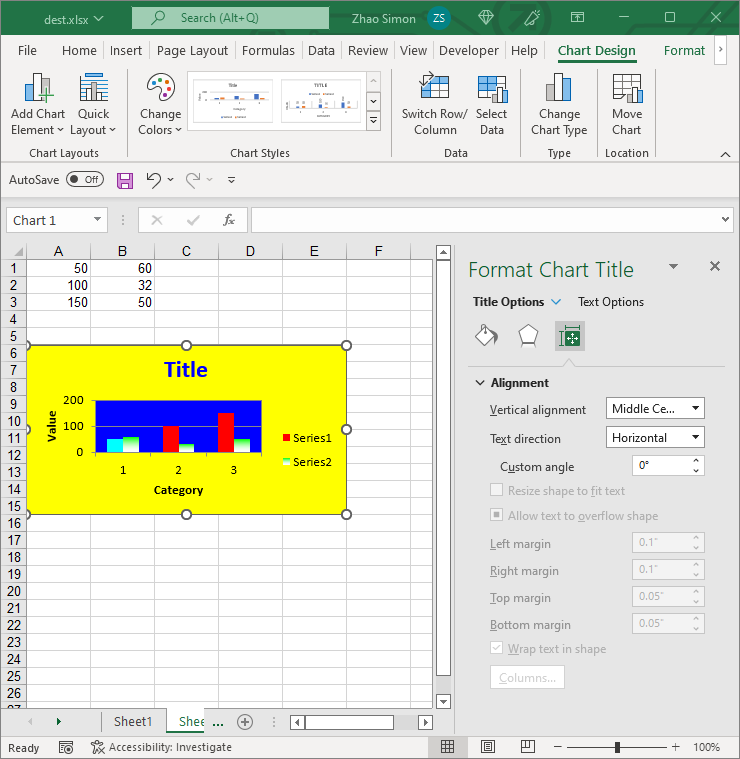

Microsoft Excel kullanarak grafik ve eksenlerin başlıklarını WYSIWYG ortamında ayarlayabilirsiniz. Aspose.Cells for Python via .NET, ayrıca geliştirilicilere grafik ve eksenlerin başlıklarını çalışma zamanında ayarlama olanağı verir. Tüm grafikler ve eksenleri, aşağıda örnekte gösterildiği gibi, başlık özelliğine sahiptir.
Aşağıdaki kod parçacığı, grafikler ve eksenlerin başlıklarını nasıl ayarlayacağını göstermektedir.
from aspose.cells import Workbook | |
from aspose.cells.charts import ChartType | |
from aspose.cells.drawing import GradientStyleType | |
from aspose.pydrawing import Color | |
from os import os, path | |
# For complete examples and data files, please go to https:# github.com/aspose-cells/Aspose.Cells-for-.NET | |
# The path to the documents directory. | |
dataDir = RunExamples.GetDataDir(".") | |
# Create directory if it is not already present. | |
IsExists = path.isdir(dataDir) | |
if notIsExists: | |
os.makedirs(dataDir) | |
# Instantiating a Workbook object | |
workbook = Workbook() | |
# Adding a new worksheet to the Workbook object | |
sheetIndex = workbook.worksheets.add() | |
# Obtaining the reference of the newly added worksheet by passing its sheet index | |
worksheet = workbook.worksheets[sheetIndex] | |
# Adding sample values to cells | |
worksheet.cells.get("A1").put_value(50) | |
worksheet.cells.get("A2").put_value(100) | |
worksheet.cells.get("A3").put_value(150) | |
worksheet.cells.get("B1").put_value(60) | |
worksheet.cells.get("B2").put_value(32) | |
worksheet.cells.get("B3").put_value(50) | |
# Adding a chart to the worksheet | |
chartIndex = worksheet.charts.add(ChartType.COLUMN, 5, 0, 15, 5) | |
# Accessing the instance of the newly added chart | |
chart = worksheet.charts[chartIndex] | |
# Adding SeriesCollection (chart data source) to the chart ranging from "A1" cell to "B3" | |
chart.n_series.add("A1:B3", True) | |
# Setting the foreground color of the plot area | |
chart.plot_area.area.foreground_color = Color.blue | |
# Setting the foreground color of the chart area | |
chart.chart_area.area.foreground_color = Color.yellow | |
# Setting the foreground color of the 1st SeriesCollection area | |
chart.n_series[0].area.foreground_color = Color.red | |
# Setting the foreground color of the area of the 1st SeriesCollection point | |
chart.n_series[0].points[0].area.foreground_color = Color.cyan | |
# Filling the area of the 2nd SeriesCollection with a gradient | |
chart.n_series[1].area.fill_format.set_one_color_gradient(Color.lime, 1, GradientStyleType.HORIZONTAL, 1) | |
# Setting the title of a chart | |
chart.title.text = "Title" | |
# Setting the font color of the chart title to blue | |
chart.title.font.color = Color.blue | |
# Setting the title of category axis of the chart | |
chart.category_axis.title.text = "Category" | |
# Setting the title of value axis of the chart | |
chart.value_axis.title.text = "Value" | |
# Saving the Excel file | |
workbook.save(dataDir + "book1.out.xls") |
