使用JavaScript通过C++在复制行或范围时将图表的数据源更改为目标工作表
Contents
[
Hide
]
可能的使用场景

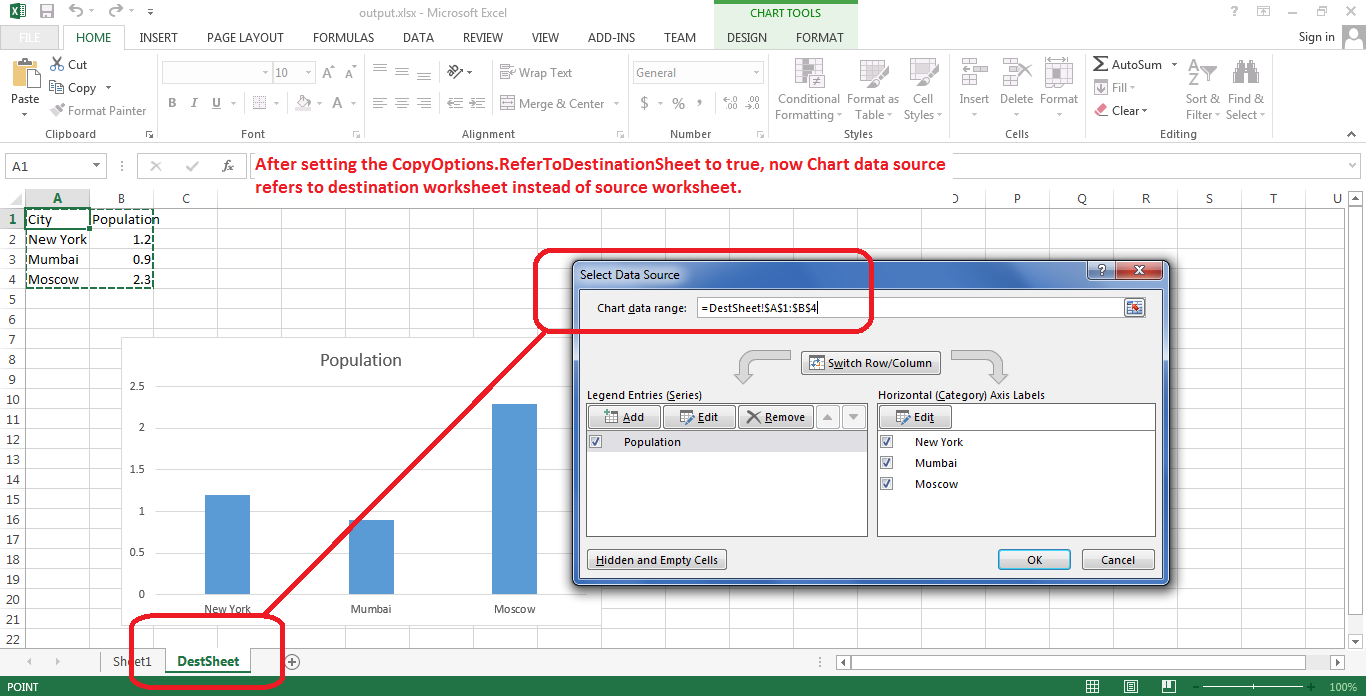

当你将包含图表的行或区域复制到新工作表时，图表的数据源不会变化。例如，如果图表的数据源是 =Sheet1!$A$1:$B$4，那么在复制到新工作表后，数据源仍然是相同的，即=Sheet1!$A$1:$B$4，仍指向旧工作表（即Sheet1）。这也是Microsoft Excel中的行为。但如果你希望它指向新的目标工作表，请在调用Cells.copyRows(Cells, number, number, number)方法时使用CopyOptions.referToDestinationSheet属性并设置为true。假设目标工作表为DestSheet，则你的图表数据源将从=Sheet1!$A$1:$B$4变为=DestSheet!$A$1:$B$4。
复制行或区域时更改图表的数据源到目标工作表
以下示例代码解释了在复制包含图表的行或区域到新工作表时使用CopyOptions.referToDestinationSheet属性的方法。代码使用示例Excel文件（5113699.xlsx），并生成输出Excel文件（5113697.xlsx）。
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example - Copy Worksheet with Charts</title>
</head>
<body>
<h1>Copy Worksheet with Charts Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate Workbook from the uploaded file
const wb = new Workbook(new Uint8Array(arrayBuffer));
// Access the first sheet which contains chart
const source = wb.worksheets.get(0);
// Add another sheet named DestSheet
const destination = wb.worksheets.add("DestSheet");
// Set CopyOptions.referToDestinationSheet to true
const options = new AsposeCells.CopyOptions();
options.referToDestinationSheet = true;
// Copy all the rows of source worksheet to destination worksheet which includes chart as well
// The chart data source will now refer to DestSheet
destination.cells.copyRows(source.cells, 0, 0, source.cells.maxDisplayRange.rowCount, options);
// Save workbook in xlsx format and provide download link
const outputData = wb.save(SaveFormat.Xlsx);
const blob = new Blob([outputData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output_out.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
resultDiv.innerHTML = '<p style="color: green;">Worksheet copied successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
