在保存为PDF时,仅更改单个Unicode字符的字体,使用JavaScript通过C++
Contents
[
Hide
]
一些Unicode字符无法使用用户指定的字体显示。其中一个这样的Unicode字符是非间断连字(U+2011),其Unicode编号为8209。这个字符不能用Times New Roman显示,但可以用其他字体如Arial Unicode MS显示。
当某个字符出现在一些单词或句子中,而这些内容使用特定字体(如Times New Roman)时,Aspose.Cells会将整个单词或句子的字体更改为可以显示该字符的字体,如Arial Unicode MS或MS。
然而,对于一些用户来说,这种行为是不理想的,他们希望只改变该特定字符的字体,而不是更改整个单词或句子的字体。
为了解决这个问题,Aspose.Cells提供了PdfSaveOptions.isFontSubstitutionCharGranularity属性,应将其设置为true,以便只更改那些无法显示的特定字符的字体为可显示的字体,而其余的单词或句子仍然保持原始字体。
示例
以下屏幕截图比较了以下示例代码生成的两个输出PDF。
一个是在不设置PdfSaveOptions.isFontSubstitutionCharGranularity属性的情况下生成的,另一个是在设置PdfSaveOptions.isFontSubstitutionCharGranularity属性为true后生成的。

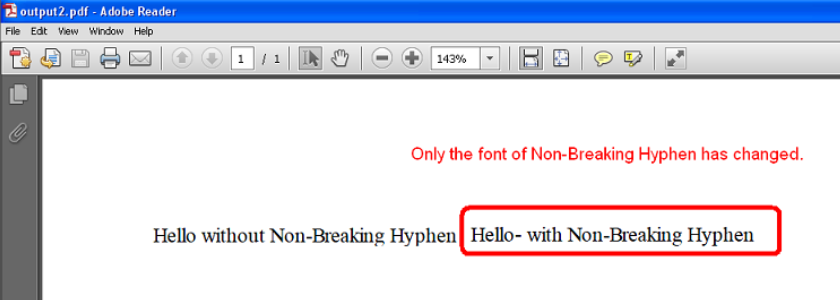

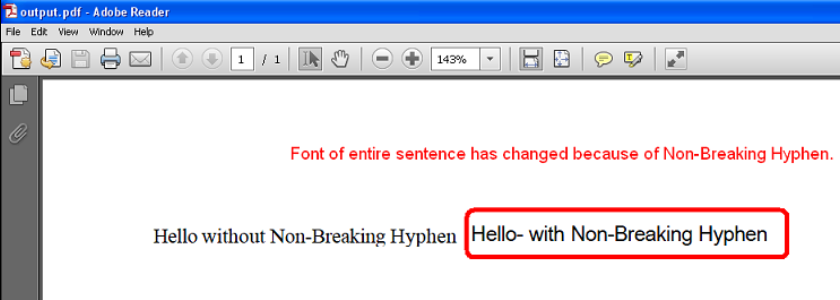

如第一个PDF所示,由于非断字符号,整个句子的字体由Times New Roman变为Arial Unicode MS。而在第二个PDF中,只有非断字符号的字体发生了变化。
| 第一个PDF文件 |
|---|
![]() |
| 第二个PDF文件 |
|---|
![]() |
示例代码
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink1" style="display: none; margin-right: 10px;">Download Result PDF 1</a>
<a id="downloadLink2" style="display: none;">Download Result PDF 2</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, PdfSaveOptions } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const resultDiv = document.getElementById('result');
resultDiv.innerHTML = '<p>Running example...</p>';
// Create workbook object
const workbook = new Workbook();
// Access the first worksheet
const worksheet = workbook.worksheets.get(0);
// Access cells
const cell1 = worksheet.cells.get("A1");
const cell2 = worksheet.cells.get("B1");
// Set the styles of both cells to Times New Roman
let style = cell1.style;
style.font.name = "Times New Roman";
cell1.style = style;
cell2.style = style;
// Put the values inside the cell
cell1.value = "Hello without Non-Breaking Hyphen";
cell2.value = "Hello" + String.fromCharCode(8209) + " with Non-Breaking Hyphen";
// Autofit the columns
worksheet.autoFitColumns();
// Save to Pdf without setting PdfSaveOptions.IsFontSubstitutionCharGranularity
const outputData1 = workbook.save(SaveFormat.Pdf);
const blob1 = new Blob([outputData1]);
const downloadLink1 = document.getElementById('downloadLink1');
downloadLink1.href = URL.createObjectURL(blob1);
downloadLink1.download = 'SampleOutput_out.pdf';
downloadLink1.style.display = 'inline-block';
downloadLink1.textContent = 'Download SampleOutput_out.pdf';
// Save to Pdf after setting PdfSaveOptions.IsFontSubstitutionCharGranularity to true
const opts = new PdfSaveOptions();
opts.isFontSubstitutionCharGranularity = true;
const outputData2 = workbook.save(SaveFormat.Pdf, opts);
const blob2 = new Blob([outputData2]);
const downloadLink2 = document.getElementById('downloadLink2');
downloadLink2.href = URL.createObjectURL(blob2);
downloadLink2.download = 'SampleOutput2_out.pdf';
downloadLink2.style.display = 'inline-block';
downloadLink2.textContent = 'Download SampleOutput2_out.pdf';
resultDiv.innerHTML = '<p style="color: green;">Operation completed successfully! Use the download links to get the generated PDFs.</p>';
});
</script>
</html>
