使用C++通过JavaScript创建Chart工作表的PdfBookmarkEntry
Contents
[
Hide
]
可能的使用场景
早期，Aspose.Cells为普通工作表创建了PdfBookmarkEntry。但现在，Aspose.Cells也可以为图表工作表创建PdfBookmarkEntry。由于图表工作表没有除A1单元格之外的其他单元格，它只会为A1单元格创建PdfBookmarkEntry。
为图表工作表创建PdfBookmarkEntry
以下示例代码加载了具有四个工作表的示例Excel文件，其中两个是普通工作表，另外两个是图表工作表。它创建了四个书签条目，如下所示
- 书签I
- 书签II-Chart1
- 书签III
- 书签IV-Chart2

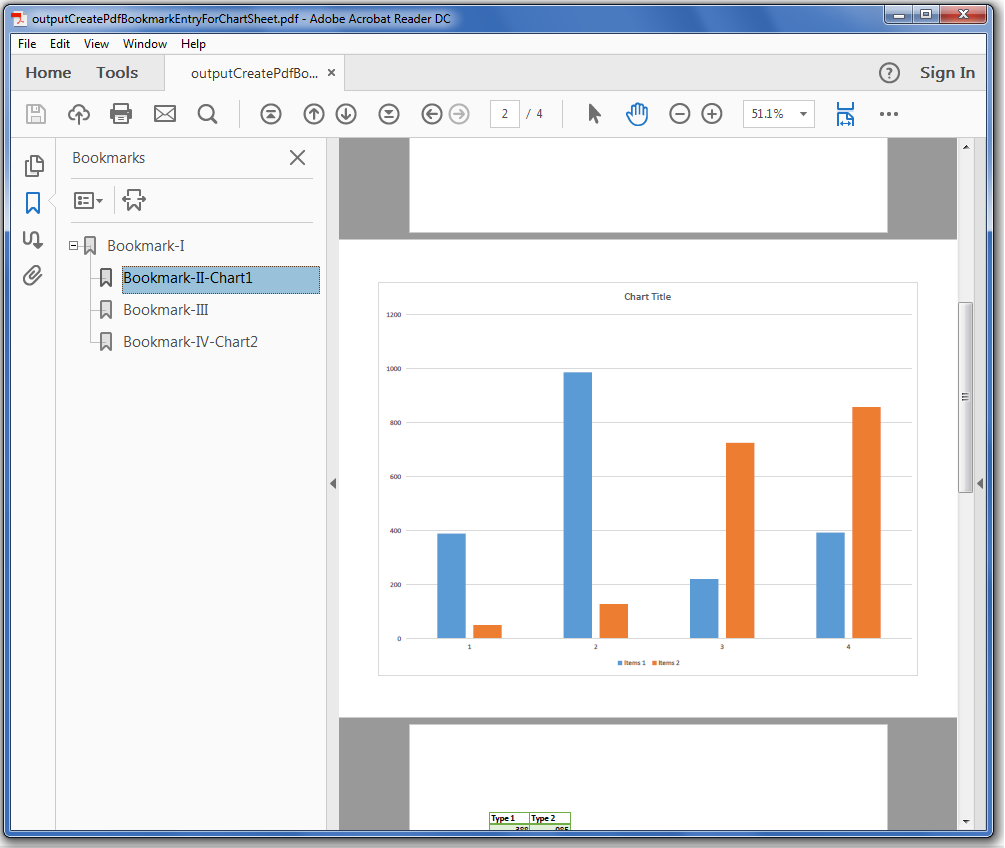

以下屏幕截图显示了示例代码生成的输出PDF以供参考。
示例代码
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Create PDF Bookmark Entry for Chart Sheet Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, PdfBookmarkEntry, PdfSaveOptions, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access all four worksheets
const sheet1 = workbook.worksheets.get(0);
const sheet2 = workbook.worksheets.get(1);
const sheet3 = workbook.worksheets.get(2);
const sheet4 = workbook.worksheets.get(3);
// Create Pdf Bookmark Entry for Sheet1
const ent1 = new PdfBookmarkEntry();
ent1.destination = sheet1.cells.get("A1");
ent1.text = "Bookmark-I";
// Create Pdf Bookmark Entry for Sheet2 - Chart
const ent2 = new PdfBookmarkEntry();
ent2.destination = sheet2.cells.get("A1");
ent2.text = "Bookmark-II-Chart1";
// Create Pdf Bookmark Entry for Sheet3
const ent3 = new PdfBookmarkEntry();
ent3.destination = sheet3.cells.get("A1");
ent3.text = "Bookmark-III";
// Create Pdf Bookmark Entry for Sheet4 - Chart
const ent4 = new PdfBookmarkEntry();
ent4.destination = sheet4.cells.get("A1");
ent4.text = "Bookmark-IV-Chart2";
// Arrange all Bookmark Entries
const lst = [];
lst.push(ent2);
lst.push(ent3);
lst.push(ent4);
// Create Pdf Save Options with Bookmark Entries
const opts = new PdfSaveOptions();
opts.bookmark = ent1;
// Save the output Pdf
const outputData = workbook.save(SaveFormat.Pdf, opts);
const blob = new Blob([outputData], { type: 'application/pdf' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputCreatePdfBookmarkEntryForChartSheet.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
document.getElementById('result').innerHTML = '<p style="color: green;">PDF created successfully! Click the download link to get the PDF file.</p>';
});
</script>
</html>
