可能的使用场景
有时您可能想根据需求自定义数据透视总计、小计、总计、所有项目、多项、列标签、行标签、空值文本。Aspose.Cells for JavaScript通过C++允许您自定义数据透视表的全球化设置来应对这些场景。您还可以使用此功能将标签更改为阿拉伯语、印地语、波兰语等其他语言。
自定义数据透视表的全球化设置

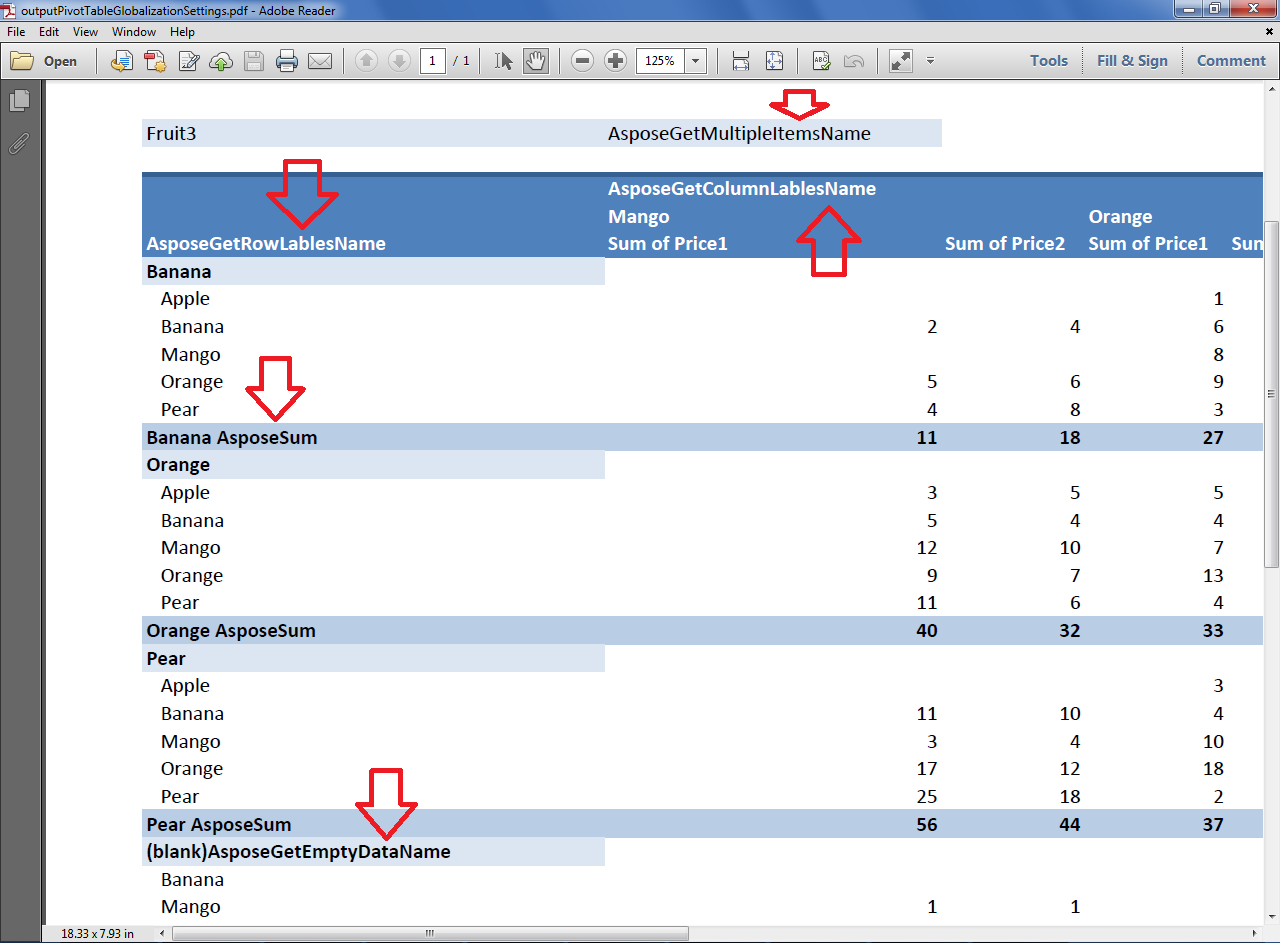

以下示例代码说明了如何为数据透视表自定义全球化设置。它创建了一个继承自 PivotGlobalizationSettings 基类的 CustomPivotTableGlobalizationSettings 类，并重写了所有必要的方法。这些方法返回自定义的 Pivot Total、Sub Total、Grand Total、All Items、Multiple Items、Column Labels、Row Labels、Blank Values 的文本。然后将该类的对象分配给 WorkbookSettings.pivotSettings 属性。该代码加载包含数据透视表的源Excel文件（40468488.xlsx），刷新并计算其数据，然后保存为输出PDF（40468487.pdf）。以下截图显示了示例代码对输出PDF的效果。可以看到，数据透视表的不同部分现在返回了由 PivotGlobalizationSettings 类的重写方法所定制的文本。
示例代码
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Pivot Table Globalization Settings Example</title>
</head>
<body>
<h1>Pivot Table Globalization Settings Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
class CustomPivotTableGlobalizationSettings extends AsposeCells.PivotGlobalizationSettings {
// Gets the name of "Total" label in the PivotTable.
getTextOfTotal() {
console.log("---------GetPivotTotalName-------------");
return "AsposeGetPivotTotalName";
}
// Gets the name of "Grand Total" label in the PivotTable.
getTextOfGrandTotal() {
console.log("---------GetPivotGrandTotalName-------------");
return "AsposeGetPivotGrandTotalName";
}
// Gets the name of "(Multiple Items)" label in the PivotTable.
getTextOfMultipleItems() {
console.log("---------GetMultipleItemsName-------------");
return "AsposeGetMultipleItemsName";
}
// Gets the name of "(All)" label in the PivotTable.
getTextOfAll() {
console.log("---------GetAllName-------------");
return "AsposeGetAllName";
}
// Gets the name of "Column Labels" label in the PivotTable.
getTextOfColumnLabels() {
console.log("---------GetColumnLabelsOfPivotTable-------------");
return "AsposeGetColumnLabelsOfPivotTable";
}
// Gets the name of "Row Labels" label in the PivotTable.
getTextOfRowLabels() {
console.log("---------GetRowLabelsNameOfPivotTable-------------");
return "AsposeGetRowLabelsNameOfPivotTable";
}
// Gets the name of "(blank)" label in the PivotTable.
getTextOfEmptyData() {
console.log("---------GetEmptyDataName-------------");
return "(blank)AsposeGetEmptyDataName";
}
// Gets the name of PivotFieldSubtotalType type in the PivotTable.
getTextOfSubTotal(subTotalType) {
console.log("---------GetSubTotalName-------------");
switch (subTotalType) {
case AsposeCells.PivotFieldSubtotalType.Sum:
return "AsposeSum";
case AsposeCells.PivotFieldSubtotalType.Count:
return "AsposeCount";
case AsposeCells.PivotFieldSubtotalType.Average:
return "AsposeAverage";
case AsposeCells.PivotFieldSubtotalType.Max:
return "AsposeMax";
case AsposeCells.PivotFieldSubtotalType.Min:
return "AsposeMin";
case AsposeCells.PivotFieldSubtotalType.Product:
return "AsposeProduct";
case AsposeCells.PivotFieldSubtotalType.CountNums:
return "AsposeCount";
case AsposeCells.PivotFieldSubtotalType.Stdev:
return "AsposeStdDev";
case AsposeCells.PivotFieldSubtotalType.Stdevp:
return "AsposeStdDevp";
case AsposeCells.PivotFieldSubtotalType.Var:
return "AsposeVar";
case AsposeCells.PivotFieldSubtotalType.Varp:
return "AsposeVarp";
}
return "AsposeSubTotalName";
}
}
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
const downloadLink = document.getElementById('downloadLink');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object by opening the uploaded Excel file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Apply globalization settings and custom pivot table globalization settings
workbook.settings.globalizationSettings = new AsposeCells.GlobalizationSettings();
workbook.settings.globalizationSettings.pivotSettings = new CustomPivotTableGlobalizationSettings();
// Hide first worksheet that contains the data of the pivot table
workbook.worksheets.get(0).isVisible = false;
// Access second worksheet
const ws = workbook.worksheets.get(1);
// Access the pivot table, refresh and calculate its data
const pt = ws.pivotTables.get(0);
pt.refreshDataFlag = true;
pt.refreshData();
pt.calculateData();
pt.refreshDataFlag = false;
// Pdf save options - save entire worksheet on a single pdf page
const options = new AsposeCells.PdfSaveOptions();
options.onePagePerSheet = true;
// Save the output pdf
const outputData = workbook.save(SaveFormat.Pdf, options);
const blob = new Blob([outputData], { type: 'application/pdf' });
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputPivotTableGlobalizationSettings.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
resultDiv.innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the PDF file.</p>';
});
</script>
</html>
