使用JavaScript通过C++判断Shape是否为Smart Art Shape
Contents
[
Hide
]
可能的使用场景
智能艺术形状是Microsoft Excel中的特殊形状，允许你自动创建复杂的图表。你可以使用Shape.isSmartArt()属性判断形状是智能艺术形状还是普通形状。
确定形状是否为智能图形

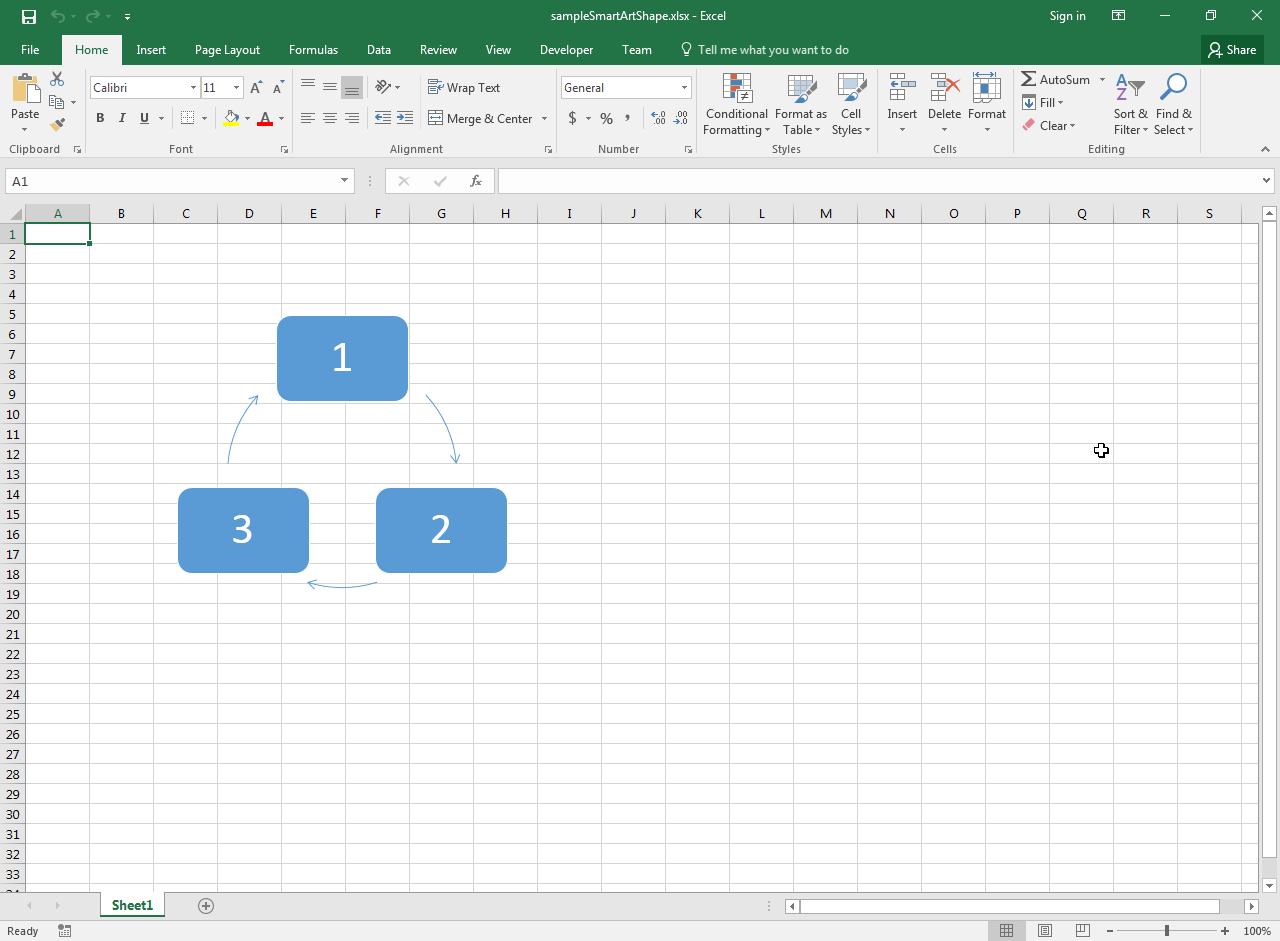

以下示例代码加载包含智能艺术形状的示例Excel文件，如截图所示。然后它打印第一个形状的Shape.isSmartArt()属性值，请查看示例代码控制台输出。
示例代码
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Example Title</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Accessing the first worksheet in the Excel file
const worksheet = workbook.worksheets.get(0);
// Accessing the first shape
const shape = worksheet.shapes.get(0);
// Determine if shape is smart art (converted to property access)
const isSmartArt = shape.isSmartArt;
document.getElementById('result').innerHTML = `<p>Is Smart Art Shape: ${isSmartArt}</p>`;
});
</script>
</html>
控制台输出
Is Smart Art Shape: True
