根据数据透视表的PivotField显示名称获取单元格对象
Contents
[
Hide
]
Aspose.Cells for JavaScript通过C++提供了PivotTable.cellByDisplayName(string)方法，可以使用该方法通过显示名称访问数据透视字段的单元格对象。当你想要突出显示或格式化数据透视字段标题时，这个方法非常有用。本文介绍了如何通过显示名称检索数据字段的单元格对象，然后进行格式设置。
如何通过数据透视表的PivotField的DisplayName获取Cell对象
以下代码访问工作表的第一个透视表，然后通过透视表的第二个数据字段的显示名称获取单元格。然后将单元格的填充颜色和字体颜色分别更改为浅蓝色和黑色。下面的屏幕截图显示了代码执行之前和之后透视表的外观。

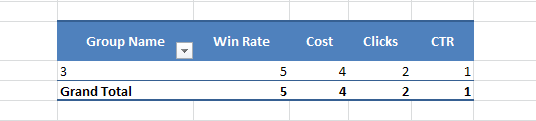

| 透视表 - 在之前 |
|---|
 |
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Pivot Table Cell Styling Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const resultDiv = document.getElementById('result');
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet
const worksheet = workbook.worksheets.get(0);
// Access first pivot table inside the worksheet
const pivotTable = worksheet.pivotTables.get(0);
// Access cell by display name of 2nd data field of the pivot table
const dataFieldDisplayName = pivotTable.dataFields.get(1).displayName;
const cell = pivotTable.cellByDisplayName(dataFieldDisplayName);
// Access cell style and set its fill color and font color
const style = cell.style;
style.foregroundColor = AsposeCells.Color.LightBlue;
style.font.color = AsposeCells.Color.Black;
// Set the style of the cell
pivotTable.format(cell.row, cell.column, style);
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output_out.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
resultDiv.innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
| 透视表 - 在之后 |
|---|
 |
