通过 C++ 阅读和操作 Excel 2016 图表
Contents
[
Hide
]
可能的使用场景
Aspose.Cells 现在支持读取和操作 Microsoft Excel 2016 图表，而这些图表在 Microsoft Excel 2013 或早期版本中是不存在的。
读取和操作Excel 2016图表

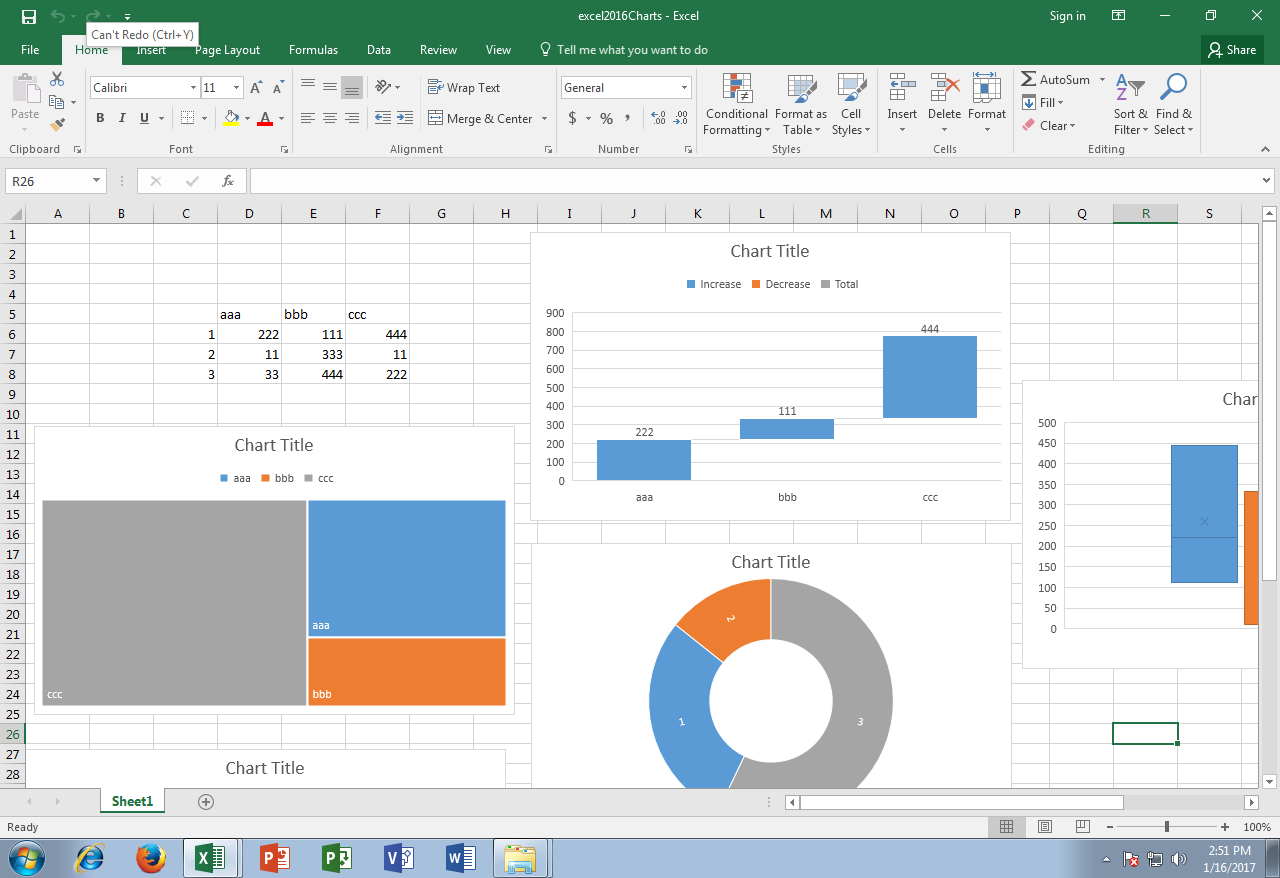

以下示例代码加载包含Excel 2016图表的源Excel文件，该文件在第一个工作表中。它逐个读取所有图表并根据其图表类型更改标题。以下截图显示代码执行前的源Excel文件。如您所见，所有图表的标题都是相同的。

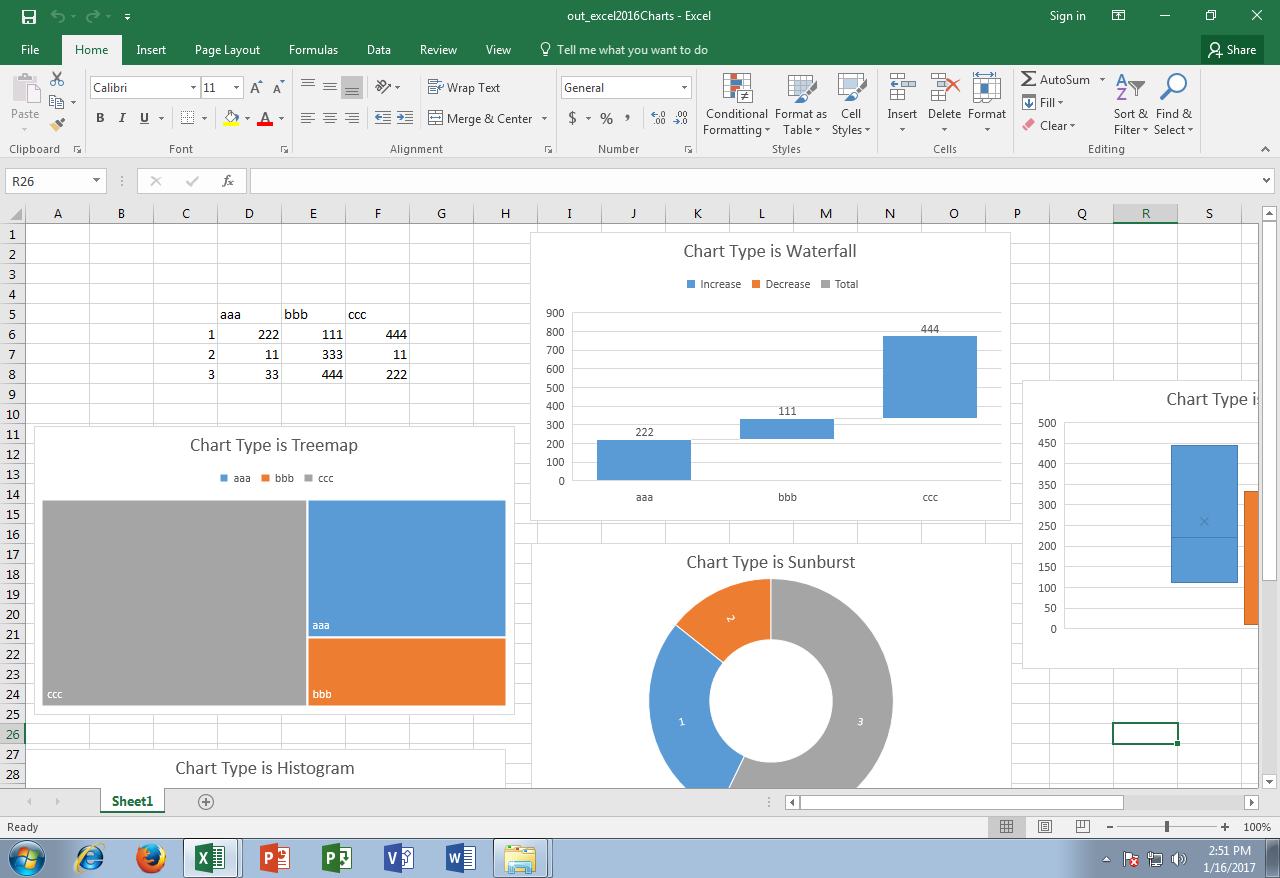

下面的屏幕截图显示了代码执行后的 输出 Excel 文件。正如您所见，图表标题已根据其图表类型进行了更改。
示例代码
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Example - Read and Update Chart Titles</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
// Read selected file
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet which contains the charts
const sheet = workbook.worksheets.get(0);
// Access all charts one by one and read their types
const chartsCount = sheet.charts.count;
let logHtml = '<ul>';
for (let i = 0; i < chartsCount; i++) {
// Access the chart
const ch = sheet.charts.get(i);
// Read chart type
const typeStr = ch.type.toString();
console.log(typeStr);
// Change the title of the chart
ch.title.text = "Chart Type is " + typeStr;
logHtml += `<li>Chart ${i}: ${typeStr}</li>`;
}
logHtml += '</ul>';
// Save the workbook to a downloadable file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'out_excel2016Charts.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
resultDiv.innerHTML = '<p style="color: green;">Charts updated successfully! Click the download link to get the modified file.</p>' + logHtml;
});
</script>
</html>
控制台输出
Waterfall
Treemap
Sunburst
Histogram
BoxWhisker
