可能的使用场景
你可以在Microsoft Excel中向任何形状内添加文本。如果你使用非常旧的Microsoft Excel 2003添加形状，文本不会随形状旋转。但如果使用较新版本的Microsoft Excel（如2007、2010、2013或2016等）添加形状，文本会随形状旋转。你可以使用ShapeTextAlignment.rotateTextWithShape属性控制文本是否随形状旋转，其默认值为true，意味着文本会随形状旋转；如果设置为false，文本则不会随形状旋转。
在工作表内旋转文本与形状

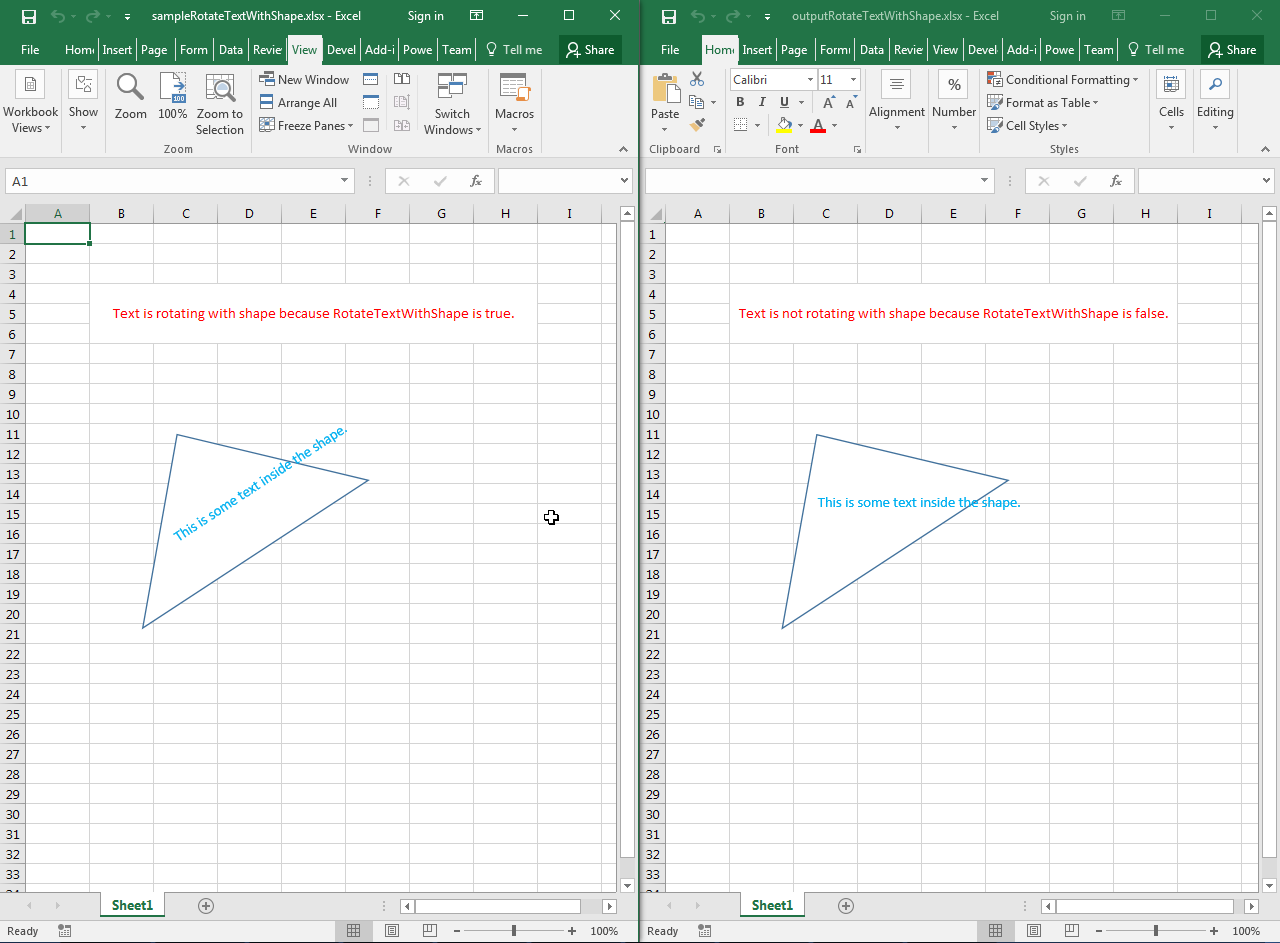

以下示例加载包含三角形和其文本旋转的示例Excel文件（64716896.xlsx）。如果在Microsoft Excel中打开样本文件并旋转三角形，文本也会旋转。然后代码将ShapeTextAlignment.rotateTextWithShape属性设置为false并保存为输出Excel文件（64716897.xlsx）。如果在Microsoft Excel中再次打开输出文件并旋转三角形，文本将不再旋转。请参考以下截图，显示代码对示例Excel文件的影响。
示例代码
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example - Rotate Text With Shape</title>
</head>
<body>
<h1>Rotate Text With Shape Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object by loading the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet.
const worksheet = workbook.worksheets.get(0);
// Access cell B4 and add message inside it.
const cellB4 = worksheet.cells.get("B4");
cellB4.value = "Text is not rotating with shape because RotateTextWithShape is false.";
// Access first shape.
const shape = worksheet.shapes.get(0);
// Access shape text alignment.
const shapeTextAlignment = shape.textBody.textAlignment;
// Do not rotate text with shape by setting RotateTextWithShape as false.
shapeTextAlignment.rotateTextWithShape = false;
// Saving the modified Excel file and providing download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputRotateTextWithShapeInsideWorksheet.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
