使用JavaScript通过C++设置范围边框。
Contents
[
Hide
]
可能的使用场景
当你想为范围设置边框时，不需要逐个设置每个单元格。你可以直接为范围设置边框。8647720447Script通过C++提供此功能。
本文提供一个示例代码，使用8647720447Script通过C++设置范围边框。

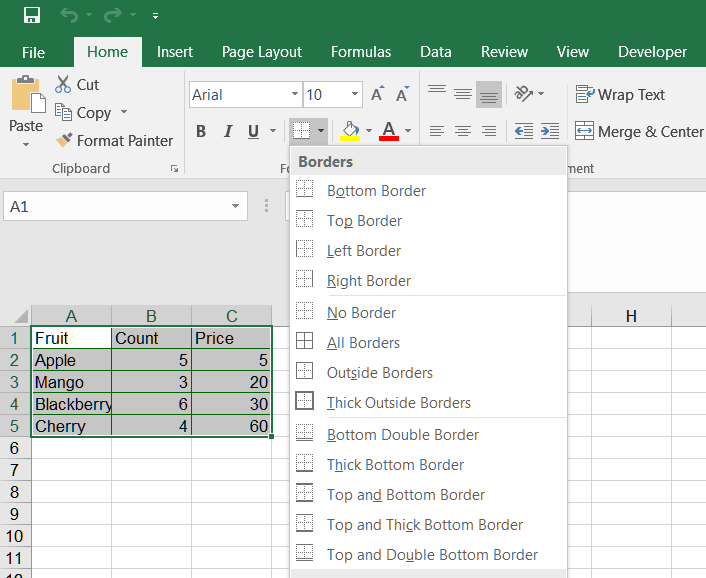

在Excel中设置范围边框
要在Excel中设置范围的边框，可以按照以下步骤进行：
- 选择要应用边框的单元格范围。
- 在功能区“主页”选项卡中，找到“字体”组。
- 在“字体”组内，单击“边框”下拉按钮。
- 从下拉菜单中选择要应用的边框类型。您可以选择预设的边框样式或自定义您自己的边框。
- 选择所需的边框样式后，边框将应用于所选的单元格范围。
** 使用8647720447Script通过C++设置范围边框。**
此示例演示如何：
- 创建一个工作簿。
- 在第一个工作表的单元格中添加数据。
- 创建一个Range。
- 设置范围的内部边框。
- 设置范围的外部边框。
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Create Workbook Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Worksheet, Cell } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
// Instantiate a new workbook
const workbook = new Workbook();
// Obtaining the reference of the newly added worksheet
const ws = workbook.worksheets.get(0);
const cells = ws.cells;
// Setting the value to the cells
let cell = cells.get("A1");
cell.putValue("Fruit");
cell = cells.get("B1");
cell.putValue("Count");
cell = cells.get("C1");
cell.putValue("Price");
cell = cells.get("A2");
cell.putValue("Apple");
cell = cells.get("A3");
cell.putValue("Mango");
cell = cells.get("A4");
cell.putValue("Blackberry");
cell = cells.get("A5");
cell.putValue("Cherry");
cell = cells.get("B2");
cell.putValue(5);
cell = cells.get("B3");
cell.putValue(3);
cell = cells.get("B4");
cell.putValue(6);
cell = cells.get("B5");
cell.putValue(4);
cell = cells.get("C2");
cell.putValue(5);
cell = cells.get("C3");
cell.putValue(20);
cell = cells.get("C4");
cell.putValue(30);
cell = cells.get("C5");
cell.putValue(60);
// Create a range (A1:C5).
const range = cells.createRange("A1", "C5");
// set inner border of range
const innerColor = workbook.createCellsColor();
innerColor.color = AsposeCells.Color.Red;
range.insideBorders = {
borderType: AsposeCells.BorderType.Vertical,
cellBorderType: AsposeCells.CellBorderType.Thin,
color: innerColor
};
innerColor.color = AsposeCells.Color.Green;
range.insideBorders = {
borderType: AsposeCells.BorderType.Horizontal,
cellBorderType: AsposeCells.CellBorderType.Thin,
color: innerColor
};
// set outer border of range
const outerColor = workbook.createCellsColor();
outerColor.color = AsposeCells.Color.Blue;
range.outlineBorders = {
cellBorderType: AsposeCells.CellBorderType.Thin,
color: outerColor
};
// Saving the modified Excel file and provide download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'out.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Workbook created successfully! Click the download link to get the file.</p>';
});
</script>
</html>
