用JavaScript通过C++设置图表系列的值格式代码
Contents
[
Hide
]
可能的使用场景
您可以使用Series.valuesFormatCode属性设置图表系列的值格式代码。此属性不仅适用于基于工作表范围的系列，也适用于使用值数组创建的系列。
设置图表系列的值格式代码

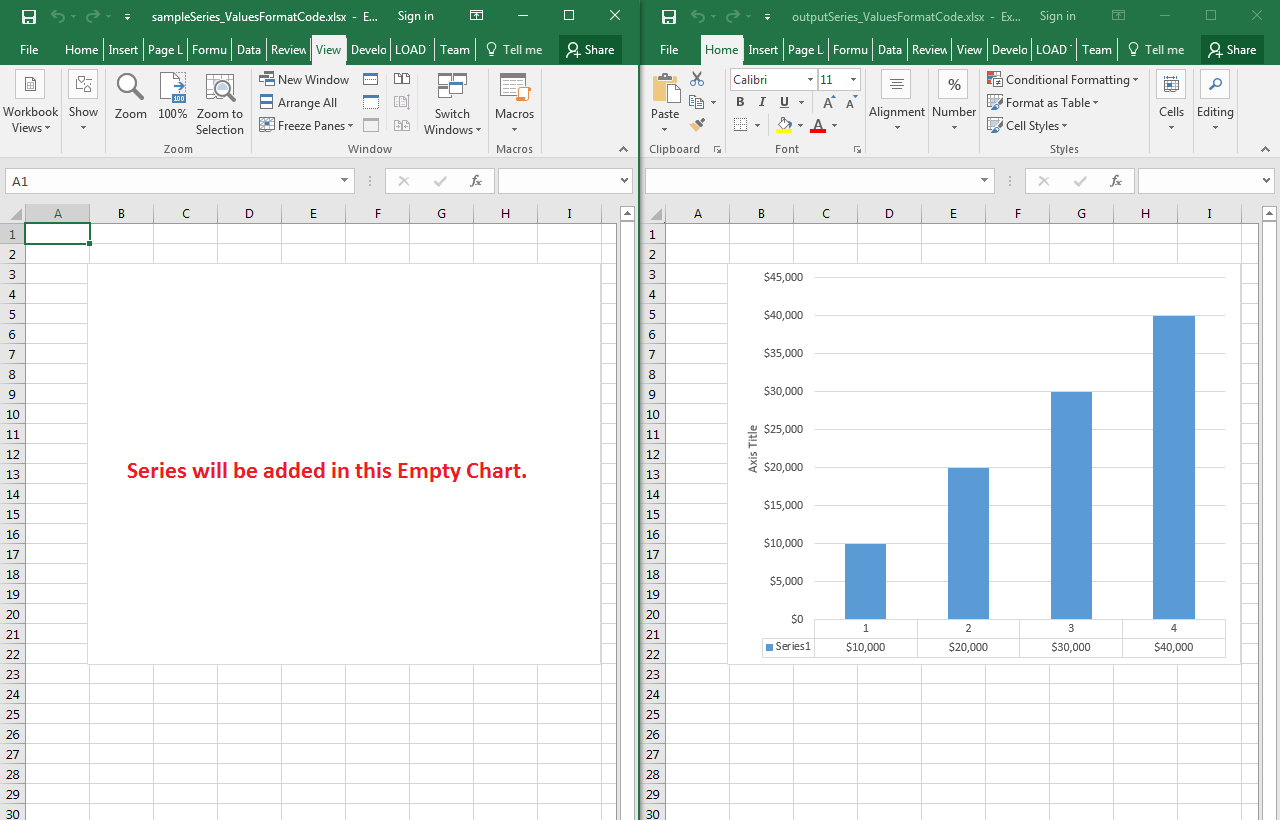

以下示例代码在之前没有系列的空白图表中添加系列。它使用值数组添加系列，并用Series.valuesFormatCode属性将格式设为$#,##0，数字10000将显示为$10,000。截图显示了代码在示例Excel文件和输出Excel文件执行后的效果。
示例代码
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Aspose.Cells Chart Series Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access first worksheet
const worksheet = workbook.worksheets.get(0);
// Access first chart
const chart = worksheet.charts.get(0);
// Add series using an array of values
chart.nSeries.add("{10000, 20000, 30000, 40000}", true);
// Access the series and set its values format code
const series = chart.nSeries.get(0);
series.valuesFormatCode = "$#,##0";
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = '51740713.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
});
</script>
</html>
