table

This element organizes questions and answers in a tabular structure (rows and columns) for better readability.

Tables are best suited for large surveys where all questions have the same set of answers.

Syntax

The element declaration begins with ?table=[name] statement and ends with &table statement. These statements must be placed on separate lines.

table elements can only be nested within block elements and cannot be used at the top level of the form hierarchy.

name property is used as an element’s identifier and as a reminder of the element’s purpose in template source; for example, "Satisfaction survey".
This text is not displayed on the form.

Table element includes an optional table_title element, table_header element and one or more question elements.

Table structure

Table attributes

An attribute is written as [attribute_name]=[value]. Each attribute must be placed on a new line immediately after the opening ?table= statement or another attribute, and must begin with a tab character.

Required table attributes

Attribute Default value Description Usage example
answers_count n/a The number of answers common to all questions in the table. The answers are presented in columns. answers_count=3

Optional table attributes

Attribute Default value Description Usage example
table_type normal Table style:
  • normal - standard table
  • striped - zebra-striped table rows
  • equalCells - make all table columns equal
table_type=striped

table_title element

This optional element defines the title row of the table. If table_title element is omitted, the table will be rendered without a title row.

The element is declared with ?table_title= statement immediately followed by the title text. This statement must be placed on a separate line.

table_title attributes

The table_title element can be customized by adding optional attributes to it.

An attribute is written as [attribute_name]=[value]. Each attribute must be placed on a new line immediately after the opening ?table_title= statement or another attribute, and must begin with a tab character.

Attribute Default value Description Usage example
font_family Segoe UI The font family for the title text. font_family=Courier New
font_style regular The font style for the title text: bold, italic or underline.
Several font styles can be combined by listing them separated by commas.
font_style=bold, italic
font_size 12 Font size for the title text. font_size=16
color black Color of the title text. Can be picked from the following values: Aqua, Aquamarine, Black, Blue, BlueViolet, Crimson, DarkBlue, DarkGreen, DarkOrange, DarkSalmon, Fuchsia, Indigo, Lime, Red, Teal, White, Gray, LightGray. color=red
background_color transparent Background color of the title row. Can be picked from the following values: Aqua, Aquamarine, Black, Blue, BlueViolet, Crimson, DarkBlue, DarkGreen, DarkOrange, DarkSalmon, Fuchsia, Indigo, Lime, Red, Teal, White, Gray, LightGray. background_color=gray
border none Whether to draw a border around the title row.
  • none - no border.
  • square - draw a rectangular border.
  • rounded - draw a rectangular border with rounded corners.
border=square
border_size 3 Width of the title row borders. border_size=10
border_color black Color of the title row borders. Can be picked from the following values: Aqua, Aquamarine, Black, Blue, BlueViolet, Crimson, DarkBlue, DarkGreen, DarkOrange, DarkSalmon, Fuchsia, Indigo, Lime, Red, Teal, White, Gray, LightGray. border_color=red

table_header element

This element specifies the content of the table header row.

The element declaration begins with ?table_header=[name] statement and ends with &table_header statement. These statements must be placed on separate lines.

name property is used as a reminder of the element’s purpose; for example, “Preference”. This is an optional property - you can use the same name for multiple elements or just omit it.

Table_header element includes a content element that defines the question text and several answer_value elements that define the answers. The number of answer_value elements must be equal to the value of the answers_count attribute of the table element.

table_header attributes

The table_header element can be customized by adding optional attributes to it.

An attribute is written as [attribute_name]=[value]. Each attribute must be placed on a new line immediately after the opening ?table_header= statement or another attribute, and must begin with a tab character.

Attribute Default value Description Usage example
font_family Segoe UI The font family for the header text. font_family=Courier New
font_style regular The font style for the header text: bold, italic or underline.
Several font styles can be combined by listing them separated by commas.
font_style=bold, italic
font_size 12 Font size for the header text. font_size=16

answer_value element

The answer_value element defines the answer text that will be displayed in the table header. The number of answer_value elements must be equal to the value of the answers_count attribute of the table element.

The element is declared with ?answer_value= statement immediately followed by an answer text. This statement must be placed on a separate line.

question element

The question element defines the question text. A table can include multiple question elements that will be displayed as table rows.

The element is declared with ?question= statement immediately followed by a question text. This statement must be placed on a separate line.

Examples

Check out the code examples to see how tables can be used.

Product satisfaction survey

?container=Example
?block=
?table=Survey
	answers_count=3
	table_type=striped
?table_title=Product satisfaction survey
	font_size=16
	font_style=Bold
?table_header=table_header
	font_size=10
	font_style=Italic
?content=Question
?answer_value=Yes
?answer_value=No
?answer_value=I don't know
&table_header
?question=Is Aspose.OMR for .NET easy to use?
?question=Are you satisfied with Aspose.OMR for .NET performance?
?question=Are you satisfied with Aspose.OMR for .NET recognition accuracy?
&table
&block
&container

Product satisfaction survey

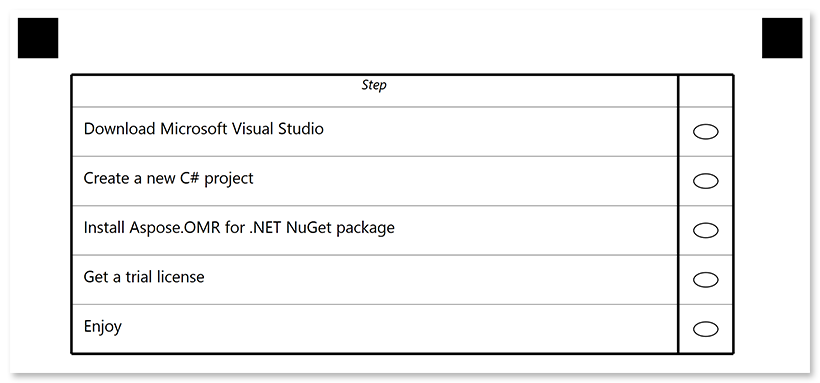

Checklist

?container=Example
?block=
?table=Checklist
	answers_count=1
?table_header=table_header
	font_size=10
	font_style=Italic
?content=Step
?answer_value=
&table_header
?question=Download Microsoft Visual Studio
?question=Create a new C# project
?question=Install Aspose.OMR for .NET NuGet package
?question=Get a trial license
?question=Enjoy
&table
&block
&container

Checklist
