Create 3D Presentations in JavaScript

Overview

Since Aspose.Slides for Java 20.9 its possible to create 3D in presentations. PowerPoint 3D is a way to give life to presentations. Show the real world objects with 3D presentation, demonstrate 3D model of your future business project, 3D model of the building or its interior, 3D model of the game character, or just a 3D representation of your data.

PowerPoint 3D models can be created from 2D shapes, by applying such effects on them: 3D rotation, 3D depth and extrusion, 3D gradient, 3D text, etc. The list of 3D features applied to the shapes can be found in ThreeDFormat class. The instance of the class can be get by:

Shape.getThreeDFormat() method for creating a PowerPoint 3D Model.
TextFrameFormat.getThreeDFormat() method for creating a 3D Text (WordArt).

All effects implemented in ThreeDFormat can be used for both shapes and text. Let us have a quick look on the main methods of ThreeDFormat class. In the next example we create a rectangle 2D shape with a text on it. By getting camera view on the shape, we change its rotation and make looking as a 3D model. Setting a flat light and its direction to the top of the 3D model, bring more volume to the model. Changed materials, extrusion height and color make the 3D model look more alive.

var pres = new aspose.slides.Presentation();
try {
    var shape = pres.getSlides().get_Item(0).getShapes().addAutoShape(aspose.slides.ShapeType.Rectangle, 200, 150, 200, 200);
    shape.getTextFrame().setText("3D");
    shape.getTextFrame().getParagraphs().get_Item(0).getParagraphFormat().getDefaultPortionFormat().setFontHeight(64);
    shape.getThreeDFormat().getCamera().setCameraType(aspose.slides.CameraPresetType.OrthographicFront);
    shape.getThreeDFormat().getCamera().setRotation(20, 30, 40);
    shape.getThreeDFormat().getLightRig().setLightType(aspose.slides.LightRigPresetType.Flat);
    shape.getThreeDFormat().getLightRig().setDirection(aspose.slides.LightingDirection.Top);
    shape.getThreeDFormat().setMaterial(aspose.slides.MaterialPresetType.Flat);
    shape.getThreeDFormat().setExtrusionHeight(100);
    shape.getThreeDFormat().getExtrusionColor().setColor(java.getStaticFieldValue("java.awt.Color", "BLUE"));
    try {
        var slideImage = pres.getSlides().get_Item(0).getImage(2, 2);
        slideImage.save("sample_3d.png", aspose.slides.ImageFormat.Png);
    } finally {
        if (slideImage != null) {
            slideImage.dispose();
        }
    }
    pres.save("sandbox_3d.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

Here is the resulting 3D model:

todo:image_alt_text

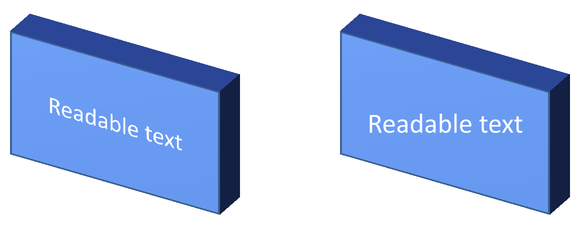

3D Rotation

The rotation of 3D model in PowerPoint can be done via menu:

todo:image_alt_text

To rotate 3D model with Aspose.Slides API, use ThreeDFormat.getCamera() method, set the rotation of the camera relatively to 3D shape:

var shape = pres.getSlides().get_Item(0).getShapes().addAutoShape(aspose.slides.ShapeType.Rectangle, 200, 150, 200, 200);
shape.getThreeDFormat().getCamera().setRotation(20, 30, 40);
// ... set other 3D scene parameters
try {
    var slideImage = pres.getSlides().get_Item(0).getImage(2, 2);
    slideImage.save("sample_3d.png", aspose.slides.ImageFormat.Png);
} finally {
    if (slideImage != null) {
        slideImage.dispose();
    }
}

3D Depth and Extrusion

ThreeDFormat.getExtrusionHeight() and ThreeDFormat.getExtrusionColor() methods are used to create extrusion on shape:

var shape = pres.getSlides().get_Item(0).getShapes().addAutoShape(aspose.slides.ShapeType.Rectangle, 200, 150, 200, 200);
shape.getThreeDFormat().getCamera().setRotation(20, 30, 40);
shape.getThreeDFormat().setExtrusionHeight(100);
shape.getThreeDFormat().getExtrusionColor().setColor(java.newInstanceSync("java.awt.Color", 128, 0, 128));
// ... set other 3D scene parameters
try {
    var slideImage = pres.getSlides().get_Item(0).getImage(2, 2);
    slideImage.save("sample_3d.png", aspose.slides.ImageFormat.Png);
} finally {
    if (slideImage != null) {
        slideImage.dispose();
    }
}

In PowerPoint, Depth of the shape is set via:

todo:image_alt_text

3D Gradient

3D gradient can bring more volume to PowerPoint 3D shape:

var pres = new aspose.slides.Presentation();
try {
    var shape = pres.getSlides().get_Item(0).getShapes().addAutoShape(aspose.slides.ShapeType.Rectangle, 200, 150, 250, 250);
    shape.getTextFrame().setText("3D");
    shape.getTextFrame().getParagraphs().get_Item(0).getParagraphFormat().getDefaultPortionFormat().setFontHeight(64);
    shape.getFillFormat().setFillType(java.newByte(aspose.slides.FillType.Gradient));
    shape.getFillFormat().getGradientFormat().getGradientStops().add(0, java.getStaticFieldValue("java.awt.Color", "BLUE"));
    shape.getFillFormat().getGradientFormat().getGradientStops().add(100, java.getStaticFieldValue("java.awt.Color", "ORANGE"));
    shape.getThreeDFormat().getCamera().setCameraType(aspose.slides.CameraPresetType.OrthographicFront);
    shape.getThreeDFormat().getCamera().setRotation(10, 20, 30);
    shape.getThreeDFormat().getLightRig().setLightType(aspose.slides.LightRigPresetType.Flat);
    shape.getThreeDFormat().getLightRig().setDirection(aspose.slides.LightingDirection.Top);
    shape.getThreeDFormat().setExtrusionHeight(150);
    shape.getThreeDFormat().getExtrusionColor().setColor(java.newInstanceSync("java.awt.Color", 255, 140, 0));
    try {
        var slideImage = pres.getSlides().get_Item(0).getImage(2, 2);
        slideImage.save("sample_3d.png", aspose.slides.ImageFormat.Png);
    } finally {
        if (slideImage != null) {
            slideImage.dispose();
        }
    }
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

Thats how it looks like:

todo:image_alt_text

You may also create an image gradient:

shape.getFillFormat().setFillType(java.newByte(java.newByteaspose.slides.FillType.Picture));
var picture;
var image = aspose.slides.Images.fromFile("image.png");
try {
    picture = pres.getImages().addImage(image);
} finally {
    if (image != null) {
        image.dispose();
    }
}
shape.getFillFormat().getPictureFillFormat().getPicture().setImage(picture);
shape.getFillFormat().getPictureFillFormat().setPictureFillMode(aspose.slides.PictureFillMode.Stretch);
// .. setup 3D: shape.ThreeDFormat.Camera, shape.ThreeDFormat.LightRig, shape.ThreeDFormat.Extrusion* properties
try {
    var slideImage = pres.getSlides().get_Item(0).getImage(2, 2);
    slideImage.save("sample_3d.png", aspose.slides.ImageFormat.Png);
} finally {
    if (slideImage != null) {
        slideImage.dispose();
    }
}

Here is the result:

todo:image_alt_text

3D Text (WordArt)

To create a 3D text (WordArt), do the following:

var pres = new aspose.slides.Presentation();
try {
    var shape = pres.getSlides().get_Item(0).getShapes().addAutoShape(aspose.slides.ShapeType.Rectangle, 200, 150, 200, 200);
    shape.getFillFormat().setFillType(java.newByte(aspose.slides.FillType.NoFill));
    shape.getLineFormat().getFillFormat().setFillType(java.newByte(aspose.slides.FillType.NoFill));
    shape.getTextFrame().setText("3D Text");
    var portion = shape.getTextFrame().getParagraphs().get_Item(0).getPortions().get_Item(0);
    portion.getPortionFormat().getFillFormat().setFillType(java.newByte(aspose.slides.FillType.Pattern));
    portion.getPortionFormat().getFillFormat().getPatternFormat().getForeColor().setColor(java.newInstanceSync("java.awt.Color", 255, 140, 0));
    portion.getPortionFormat().getFillFormat().getPatternFormat().getBackColor().setColor(java.getStaticFieldValue("java.awt.Color", "WHITE"));
    portion.getPortionFormat().getFillFormat().getPatternFormat().setPatternStyle(java.newByte(aspose.slides.PatternStyle.LargeGrid));
    shape.getTextFrame().getParagraphs().get_Item(0).getParagraphFormat().getDefaultPortionFormat().setFontHeight(128);
    var textFrame = shape.getTextFrame();
    // setup "Arch Up" WordArt transform effect
    textFrame.getTextFrameFormat().setTransform(java.newByte(aspose.slides.TextShapeType.ArchUp));
    textFrame.getTextFrameFormat().getThreeDFormat().setExtrusionHeight(3.5);
    textFrame.getTextFrameFormat().getThreeDFormat().setDepth(3);
    textFrame.getTextFrameFormat().getThreeDFormat().setMaterial(aspose.slides.MaterialPresetType.Plastic);
    textFrame.getTextFrameFormat().getThreeDFormat().getLightRig().setDirection(aspose.slides.LightingDirection.Top);
    textFrame.getTextFrameFormat().getThreeDFormat().getLightRig().setLightType(aspose.slides.LightRigPresetType.Balanced);
    textFrame.getTextFrameFormat().getThreeDFormat().getLightRig().setRotation(0, 0, 40);
    textFrame.getTextFrameFormat().getThreeDFormat().getCamera().setCameraType(aspose.slides.CameraPresetType.PerspectiveContrastingRightFacing);
    try {
        var slideImage = pres.getSlides().get_Item(0).getImage(2, 2);
        slideImage.save("text3d.png", aspose.slides.ImageFormat.Png);
    } finally {
        if (slideImage != null) {
            slideImage.dispose();
        }
    }
    pres.save("text3d.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

Here is the result:

todo:image_alt_text

FAQ

Will 3D effects be preserved when exporting a presentation to images/PDF/HTML?

Yes. The Slides 3D engine renders 3D effects when exporting to supported formats (images, PDF, HTML, etc.).

Can I retrieve the “effective” (final) 3D parameter values that account for themes, inheritance, etc.?

Yes. Slides provides APIs to read effective values (including for 3D—lighting, bevels, etc.) so you can see the final applied settings.

Do 3D effects work when converting a presentation to video?

Yes. When generating frames for the video, 3D effects are rendered just as they are for exported images.
