Berichtsdienste

Aspose.Tasks für C ++ - API bietet Berichterstattung für das Erstellen von Berichten aus Projektdateien, die dem Microsoft Project ähneln. Die Savereport -Funktion wird verwendet, um PDF -Dateien zu erstellen, die die Bilder des Berichts enthalten. Diese Funktion enthält zwei Argumente:

der PDF -Dateiname und
Der ReportType Enumerator.

Aspose.Tasks FÜR C ++ Reporting Services

Arten von Bericht

Die folgenden Berichtsorten können mit ASOSPOSPE.Tasks erstellt werden:

Projektübersicht
Ressourcenkostenübersicht
Kostenübersicht
Arbeitsübersicht
Kritische Aufgaben
Meilensteine
Späte Aufgaben
Ressourcenübersicht
Kostenüberschreitungen
Bevorstehende Aufgabe
Aufgabenkostenübersicht
Über-zu-zu-zu-zu-zu-zu-Ressourcen
Ausrutscheraufgaben
Best Practice Analyzer
Burndown
Cashflow

Die folgenden Beispielcode -Ausschnitte können verwendet werden, um diese Berichte zu erstellen. Alle in diesen Beispielen verwendeten Beispiel -MPP -Dateien sind als Anhänge zum Testen des Beispielcodes vorhanden.

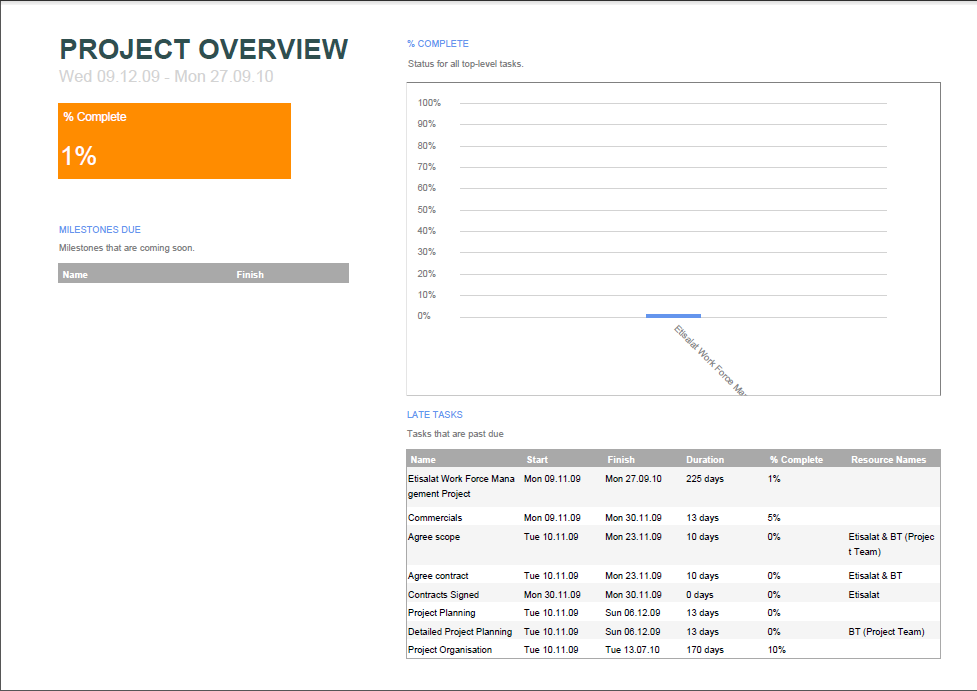

Projektübersicht

Exportiertes Projektübersichtsbericht Beispiel C ++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Cyclic stucture.mpp");
2project1->SaveReport(dataDir + u"ProjectOverView_out.pdf", Aspose::Tasks::Visualization::ReportType::ProjectOverview);

Examples-CPP-Miscellaneous-SaveProjectOverviewReport-SaveProjectOverviewReport.cpp hosted with ❤ by GitHub

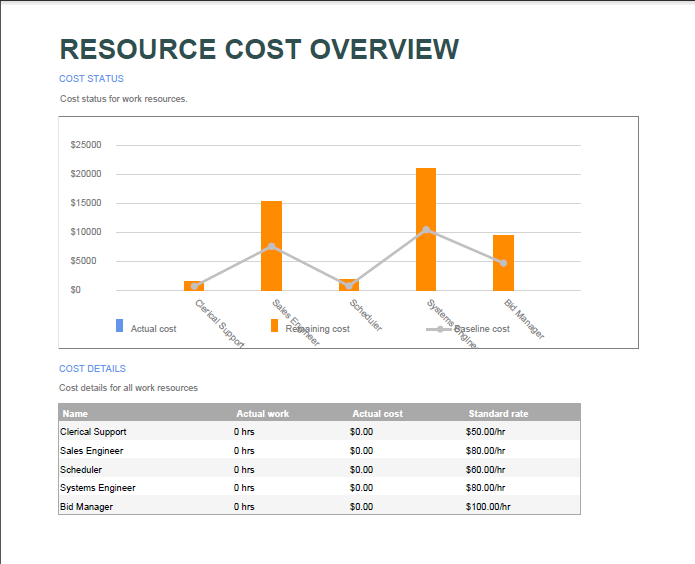

Resource Cost Overview

exported resource cost overview report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"OzBuild 16 Orig.mpp");
2project1->SaveReport(dataDir + u"ResourceCostOverview_out.pdf", Aspose::Tasks::Visualization::ReportType::ResourceCostOverview);

Examples-CPP-Miscellaneous-SaveResourceCostOverviewReport-SaveResourceCostOverviewReport.cpp hosted with ❤ by GitHub

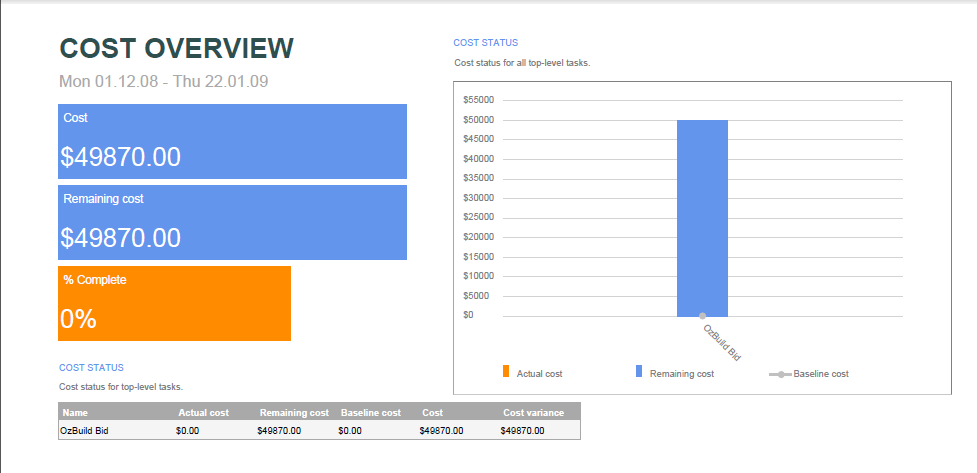

Cost Overview

exported cost overview report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"OzBuild 16 Orig.mpp");
2project1->SaveReport(dataDir + u"CostOverview_out.pdf", Aspose::Tasks::Visualization::ReportType::CostOverview);

Examples-CPP-Miscellaneous-SaveCostOverviewReport-SaveCostOverviewReport.cpp hosted with ❤ by GitHub

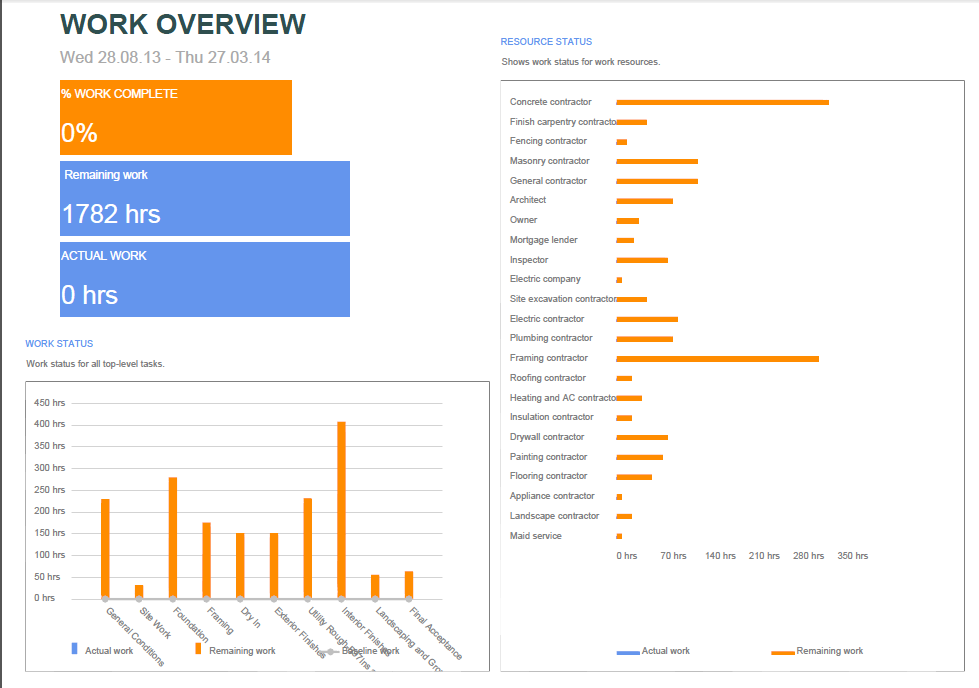

Work Overview

exported work overview report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Residential Construction.mpp");
2project1->SaveReport(dataDir + u"WorkOverview_out.pdf", Aspose::Tasks::Visualization::ReportType::WorkOverview);

Examples-CPP-Miscellaneous-SaveWorkOverviewReport-SaveWorkOverviewReport.cpp hosted with ❤ by GitHub

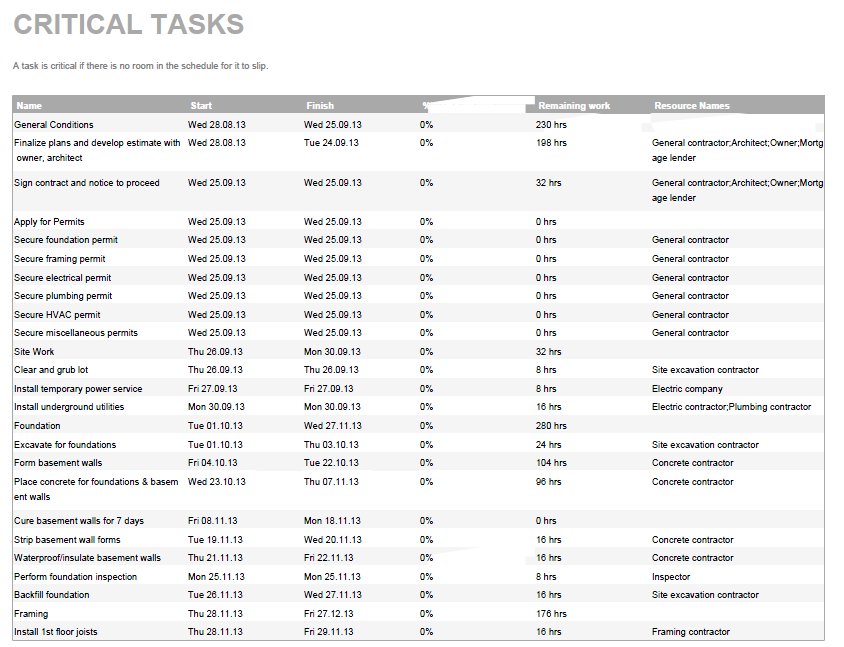

Critical Tasks

exported critical tasks report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Residential Construction.mpp");
2project1->SaveReport(dataDir + u"CriticalTasks_out.pdf", Aspose::Tasks::Visualization::ReportType::CriticalTasks);

Examples-CPP-Miscellaneous-SaveCriticalTasksReport-SaveCriticalTasksReport.cpp hosted with ❤ by GitHub

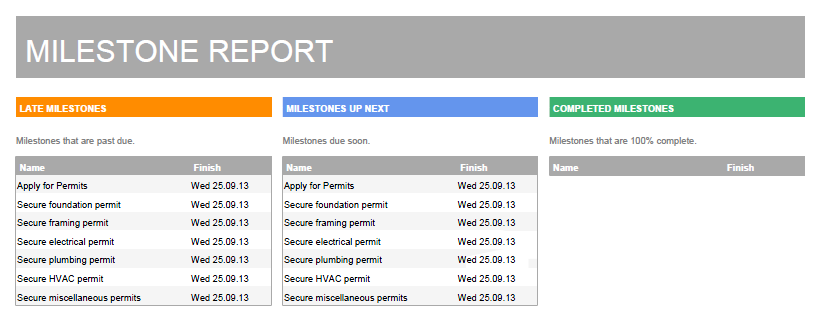

Milestones

exported milestones report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Residential Construction.mpp");
2project1->SaveReport(dataDir + u"Milestones_out.pdf", Aspose::Tasks::Visualization::ReportType::Milestones);

Examples-CPP-Miscellaneous-SaveMilestonesReport-SaveMilestonesReport.cpp hosted with ❤ by GitHub

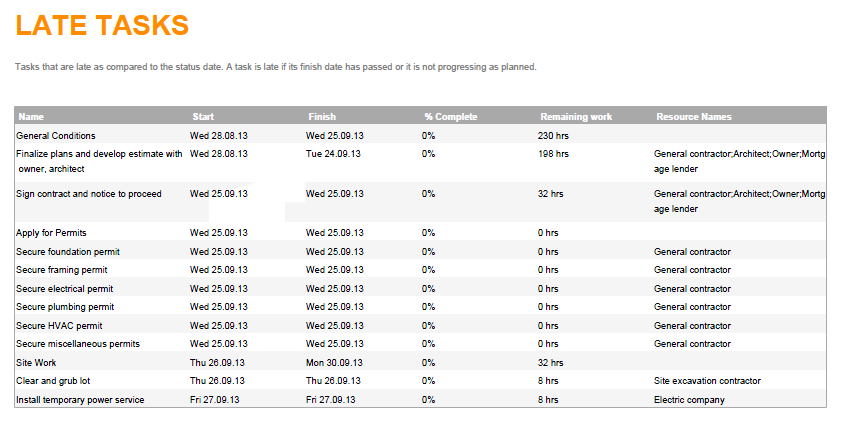

Late Tasks

exported late tasks report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Residential Construction.mpp");
2project1->SaveReport(dataDir + u"LateTasks_out.pdf", Aspose::Tasks::Visualization::ReportType::LateTasks);

Examples-CPP-Miscellaneous-SaveLateTasksReport-SaveLateTasksReport.cpp hosted with ❤ by GitHub

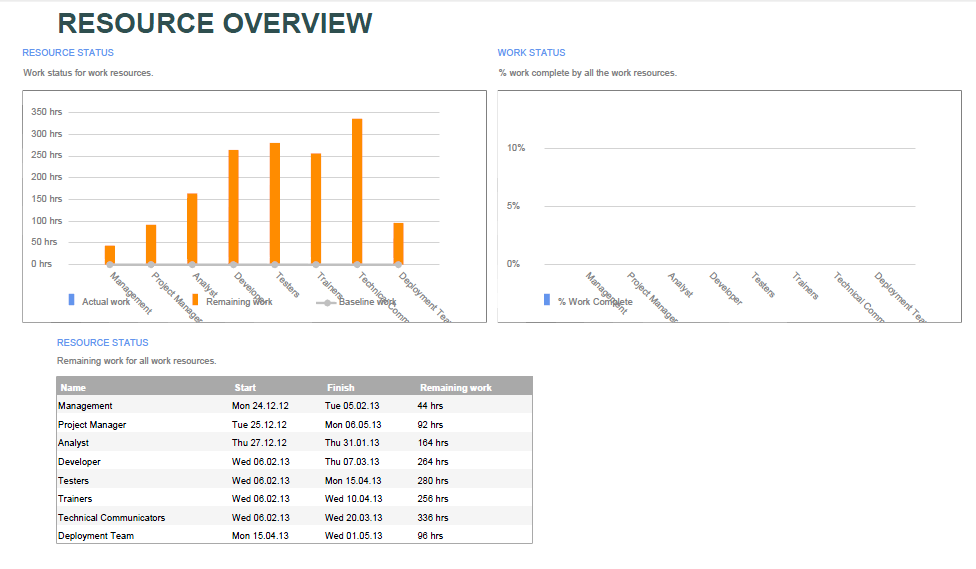

Resource Overview

exported resource overview report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Software Development Plan.mpp");
2project1->SaveReport(dataDir + u"ResourceOverview_out.pdf", Aspose::Tasks::Visualization::ReportType::ResourceOverview);

Examples-CPP-Miscellaneous-SaveResourceOverviewReport-SaveResourceOverviewReport.cpp hosted with ❤ by GitHub

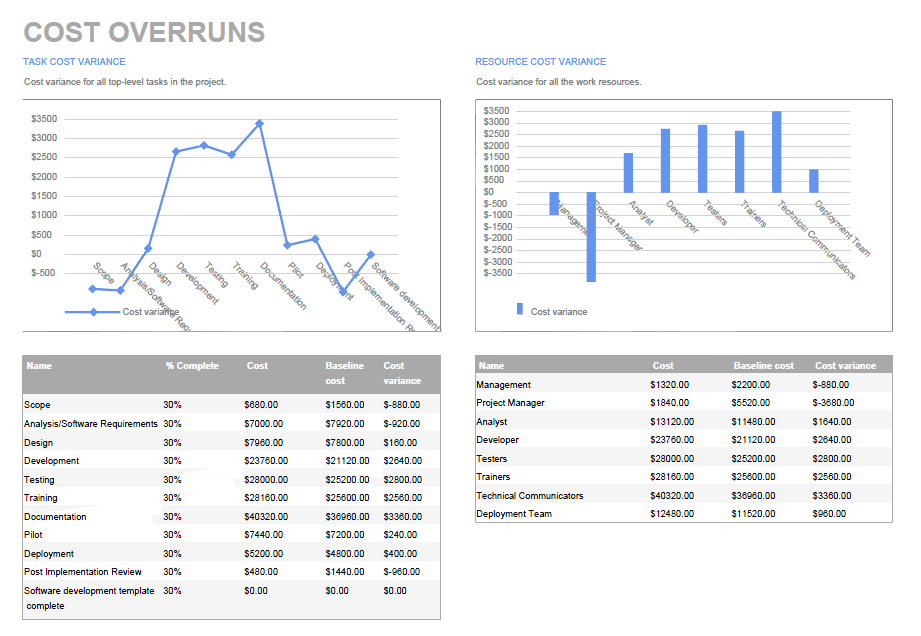

Cost Overruns

exported cost overruns report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Software Development.mpp");
2project1->SaveReport(dataDir + u"CostOverruns_out.pdf", Aspose::Tasks::Visualization::ReportType::CostOverruns);

Examples-CPP-Miscellaneous-SaveCostOverrunsReport-SaveCostOverrunsReport.cpp hosted with ❤ by GitHub

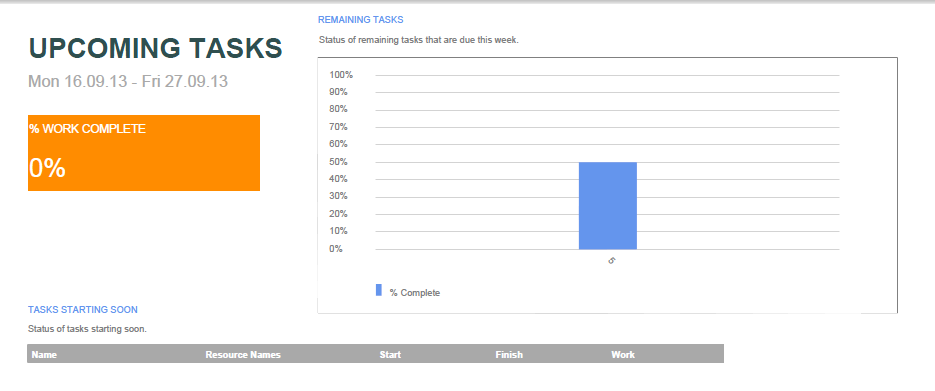

Upcoming Task

exported upcoming task report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"UpcomingTasks.mpp");
2project1->SaveReport(dataDir + u"UpcomingTasks_out.pdf", Aspose::Tasks::Visualization::ReportType::UpcomingTask);

Examples-CPP-Miscellaneous-SaveUpcomingTasksReport-SaveUpcomingTasksReport.cpp hosted with ❤ by GitHub

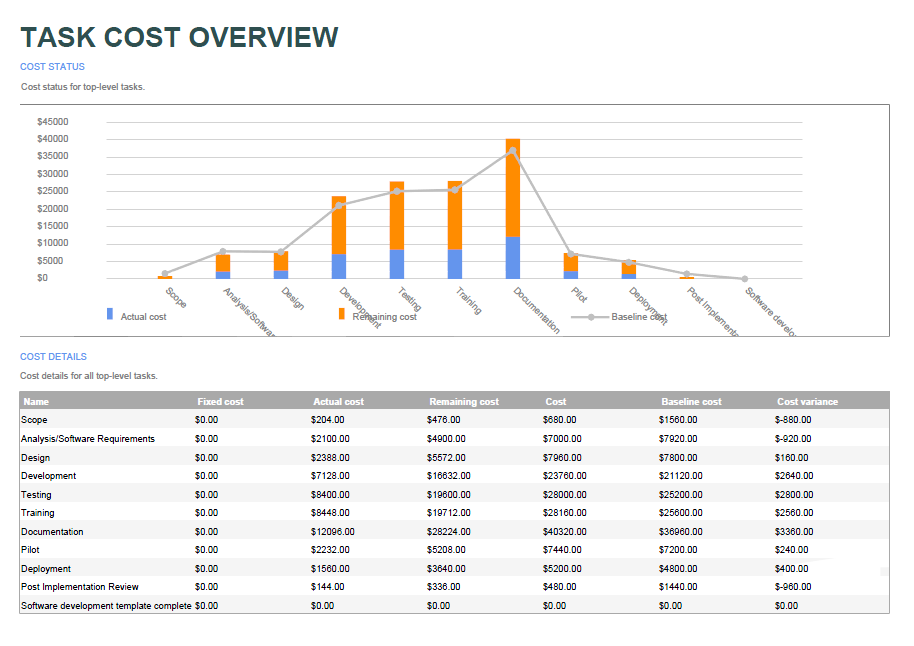

Task Cost Overview

exported task cost overview report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Software Development.mpp");
2project1->SaveReport(dataDir + u"TaskCostOverview_out.pdf", Aspose::Tasks::Visualization::ReportType::TaskCostOverview);

Examples-CPP-Miscellaneous-SaveTaskCostOverviewReport-SaveTaskCostOverviewReport.cpp hosted with ❤ by GitHub

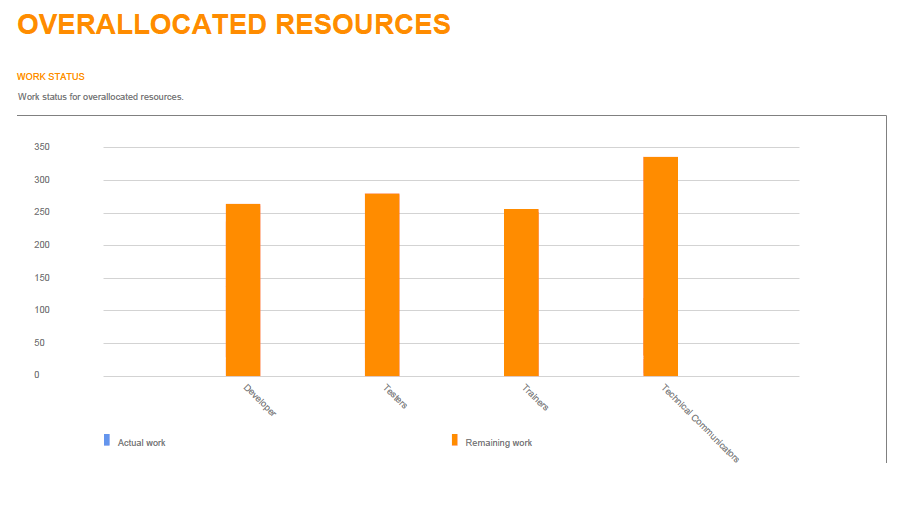

Over-allocated Resources

exported over-allocated resources report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Software Development Plan.mpp");
2project1->SaveReport(dataDir + u"OverAllocatedResources_out.pdf", Aspose::Tasks::Visualization::ReportType::OverallocatedResources);

Examples-CPP-Miscellaneous-SaveOverallocatedResourcesReport-SaveOverallocatedResourcesReport.cpp hosted with ❤ by GitHub

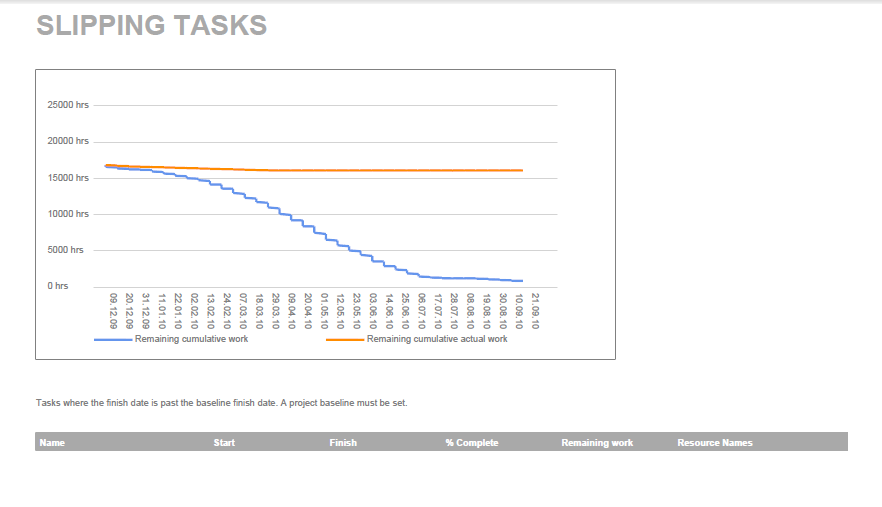

Slipping Tasks

exported slipping report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Homemoveplan.mpp");
2project1->SaveReport(dataDir + u"SlippingTasks_out.pdf", Aspose::Tasks::Visualization::ReportType::SlippingTasks);

Examples-CPP-Miscellaneous-SaveSlippingTasksReport-SaveSlippingTasksReport.cpp hosted with ❤ by GitHub

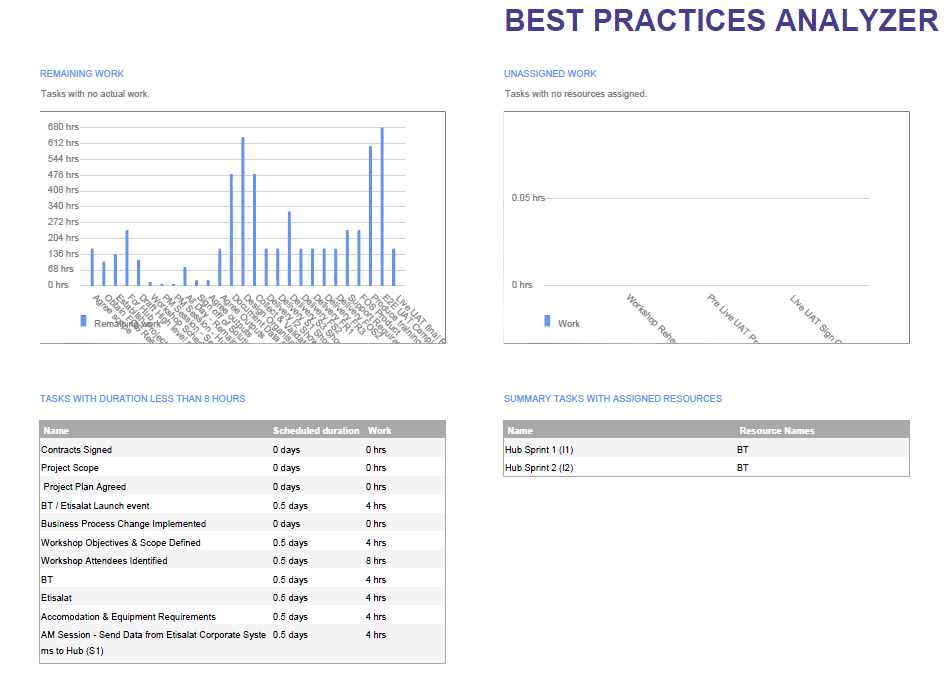

Best Practice Analyzer

exported best practice report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Cyclic stucture.mpp");
2project1->SaveReport(dataDir + u"BestPracticeAnalyzer_out.pdf", Aspose::Tasks::Visualization::ReportType::BestPracticeAnalyzer);

Examples-CPP-Miscellaneous-SaveBestPracticeAnalyzerReport-SaveBestPracticeAnalyzerReport.cpp hosted with ❤ by GitHub

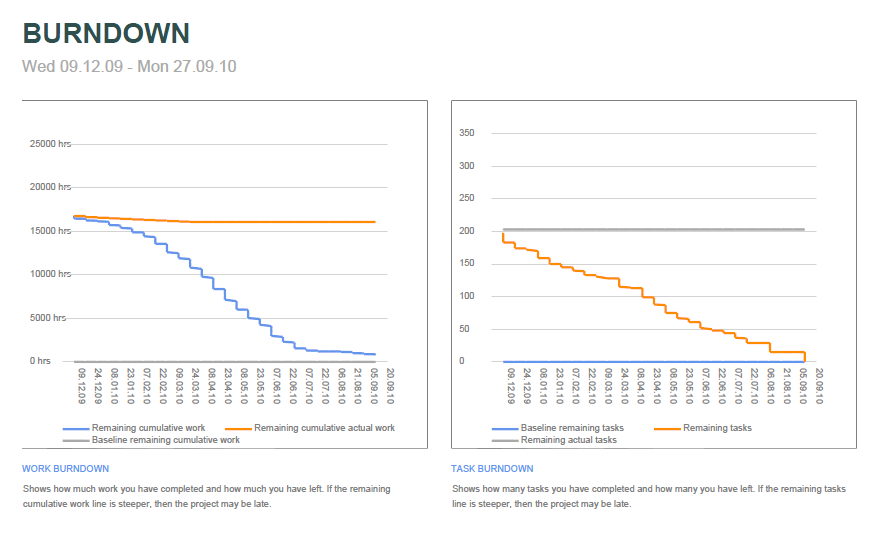

Burn Down

exported practice analyzer report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Homemoveplan.mpp");
2project1->SaveReport(dataDir + u"Burndown_out.pdf", Aspose::Tasks::Visualization::ReportType::Burndown);

Examples-CPP-Miscellaneous-SaveBurnDownReport-SaveBurnDownReport.cpp hosted with ❤ by GitHub

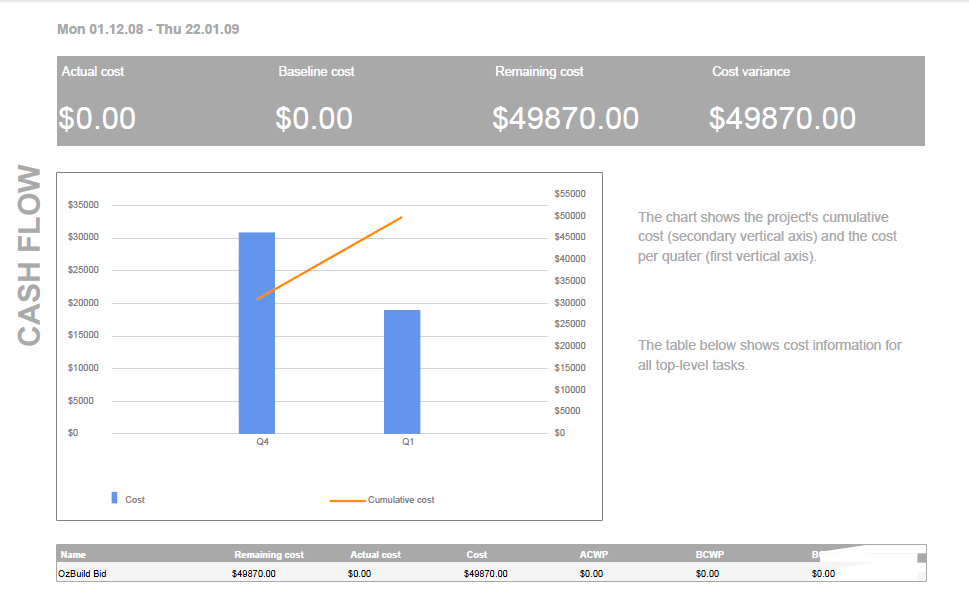

Cash Flow

exported burndown report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"OzBuild 16 Orig.mpp");
2project1->SaveReport(dataDir + u"CashFlow_out.pdf", Aspose::Tasks::Visualization::ReportType::CashFlow);

Examples-CPP-Miscellaneous-SaveCashFlowReport-SaveCashFlowReport.cpp hosted with ❤ by GitHub
