Servicios de informes

Aspose.Tasks for C ++ API proporciona servicios de informes para crear informes de archivos de proyecto similares al Proyecto Microsoft. La función SaverEport se usa para crear archivos PDF que contienen las imágenes del informe. Esta función toma dos argumentos:

el nombre del archivo PDF, y
El enumerador ReportType.

Aspose.Tasks para servicios de informes C ++

Tipos de informe

Los siguientes tipos de informe se pueden crear usando Aspose.Tasks:

Descripción general del proyecto
Descripción general de los costos de recursos
Descripción general de los costos
Descripción de trabajo
Tareas críticas
Hitos
Tareas tardías
Descripción general de los recursos
Sobrecosto
Próxima tarea
Descripción general del costo de la tarea
Recursos excesivos
Tareas de deslizamiento
Analizador de mejores prácticas
Ardor
Flujo de fondos

Los fragmentos de código de muestra a continuación se pueden usar para crear estos informes. Todos los archivos MPP de muestra utilizados en estos ejemplos están presentes como archivos adjuntos para probar el código de muestra.

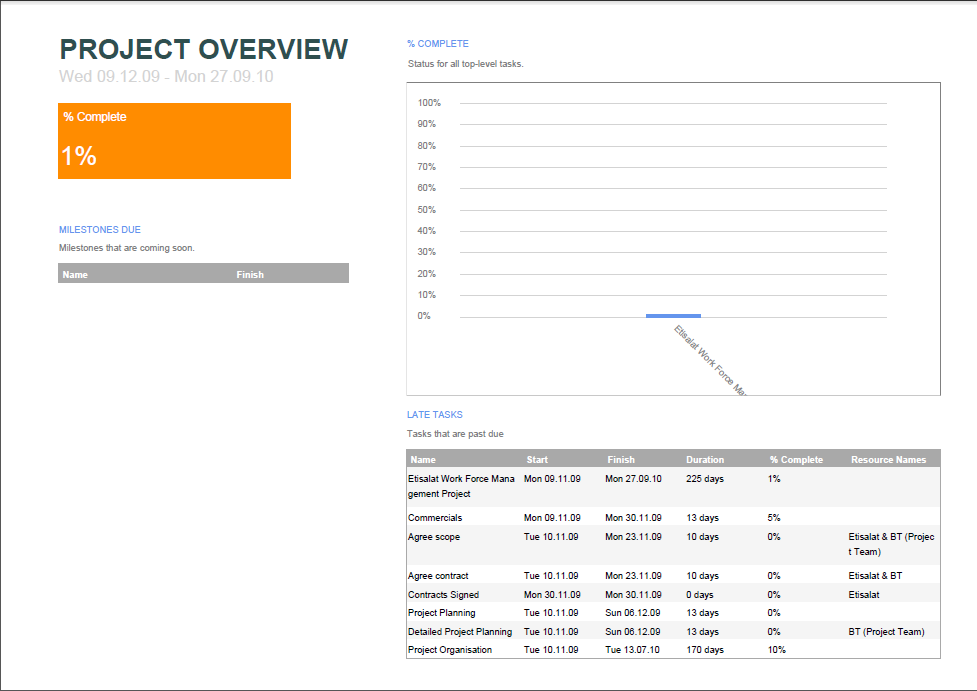

Descripción general del proyecto

Informe de descripción general del proyecto exportado Ejemplo C ++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Cyclic stucture.mpp");
2project1->SaveReport(dataDir + u"ProjectOverView_out.pdf", Aspose::Tasks::Visualization::ReportType::ProjectOverview);

Examples-CPP-Miscellaneous-SaveProjectOverviewReport-SaveProjectOverviewReport.cpp hosted with ❤ by GitHub

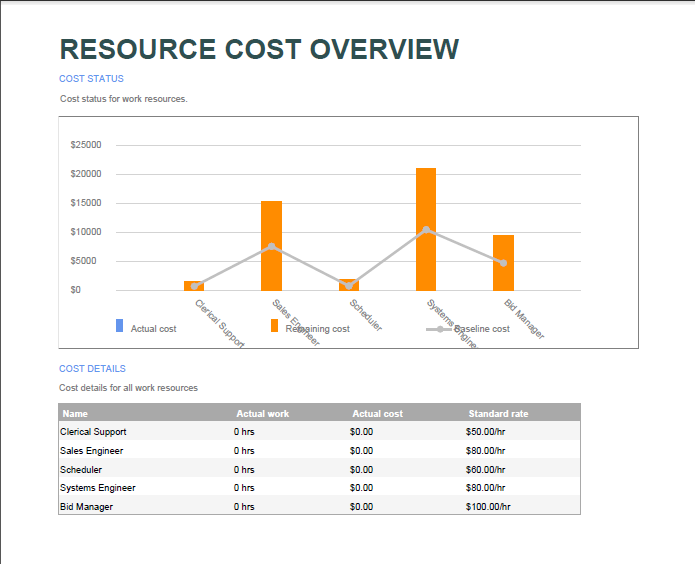

Resource Cost Overview

exported resource cost overview report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"OzBuild 16 Orig.mpp");
2project1->SaveReport(dataDir + u"ResourceCostOverview_out.pdf", Aspose::Tasks::Visualization::ReportType::ResourceCostOverview);

Examples-CPP-Miscellaneous-SaveResourceCostOverviewReport-SaveResourceCostOverviewReport.cpp hosted with ❤ by GitHub

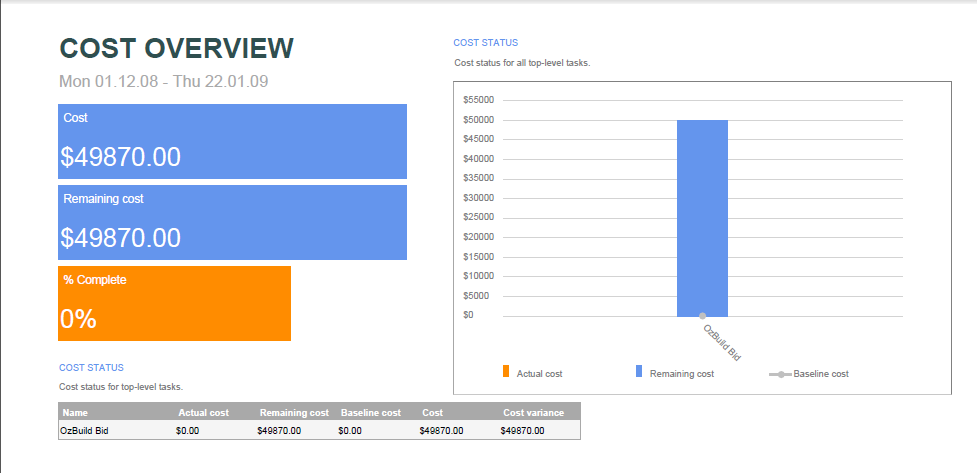

Cost Overview

exported cost overview report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"OzBuild 16 Orig.mpp");
2project1->SaveReport(dataDir + u"CostOverview_out.pdf", Aspose::Tasks::Visualization::ReportType::CostOverview);

Examples-CPP-Miscellaneous-SaveCostOverviewReport-SaveCostOverviewReport.cpp hosted with ❤ by GitHub

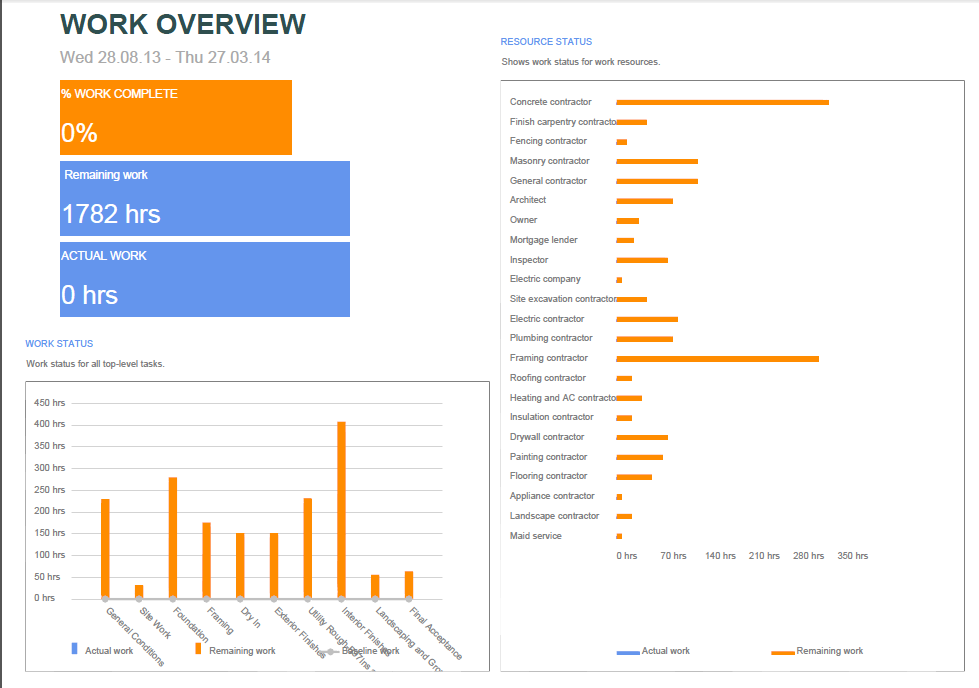

Work Overview

exported work overview report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Residential Construction.mpp");
2project1->SaveReport(dataDir + u"WorkOverview_out.pdf", Aspose::Tasks::Visualization::ReportType::WorkOverview);

Examples-CPP-Miscellaneous-SaveWorkOverviewReport-SaveWorkOverviewReport.cpp hosted with ❤ by GitHub

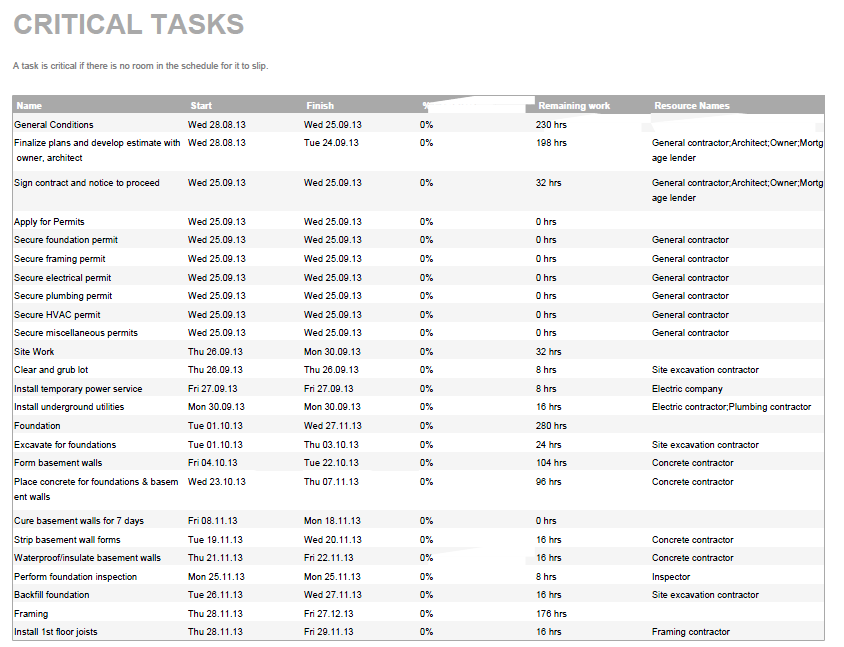

Critical Tasks

exported critical tasks report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Residential Construction.mpp");
2project1->SaveReport(dataDir + u"CriticalTasks_out.pdf", Aspose::Tasks::Visualization::ReportType::CriticalTasks);

Examples-CPP-Miscellaneous-SaveCriticalTasksReport-SaveCriticalTasksReport.cpp hosted with ❤ by GitHub

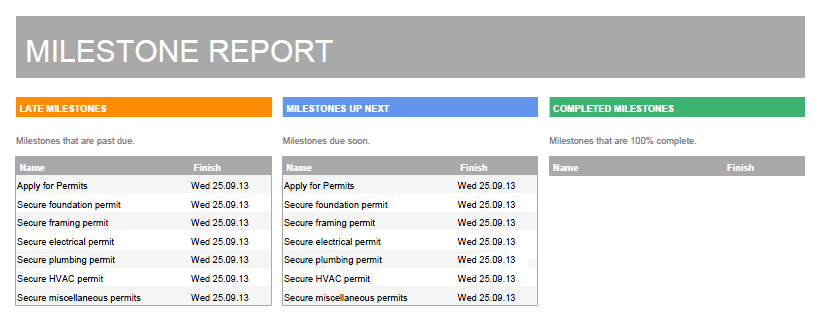

Milestones

exported milestones report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Residential Construction.mpp");
2project1->SaveReport(dataDir + u"Milestones_out.pdf", Aspose::Tasks::Visualization::ReportType::Milestones);

Examples-CPP-Miscellaneous-SaveMilestonesReport-SaveMilestonesReport.cpp hosted with ❤ by GitHub

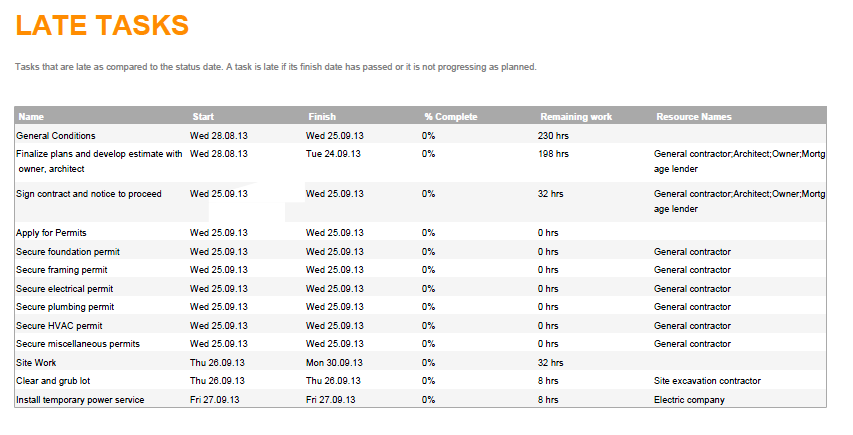

Late Tasks

exported late tasks report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Residential Construction.mpp");
2project1->SaveReport(dataDir + u"LateTasks_out.pdf", Aspose::Tasks::Visualization::ReportType::LateTasks);

Examples-CPP-Miscellaneous-SaveLateTasksReport-SaveLateTasksReport.cpp hosted with ❤ by GitHub

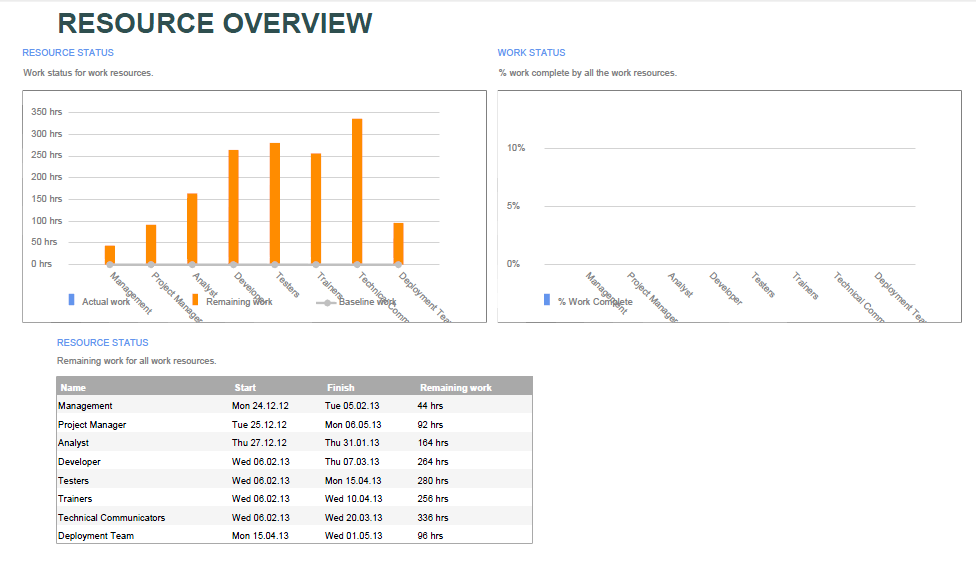

Resource Overview

exported resource overview report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Software Development Plan.mpp");
2project1->SaveReport(dataDir + u"ResourceOverview_out.pdf", Aspose::Tasks::Visualization::ReportType::ResourceOverview);

Examples-CPP-Miscellaneous-SaveResourceOverviewReport-SaveResourceOverviewReport.cpp hosted with ❤ by GitHub

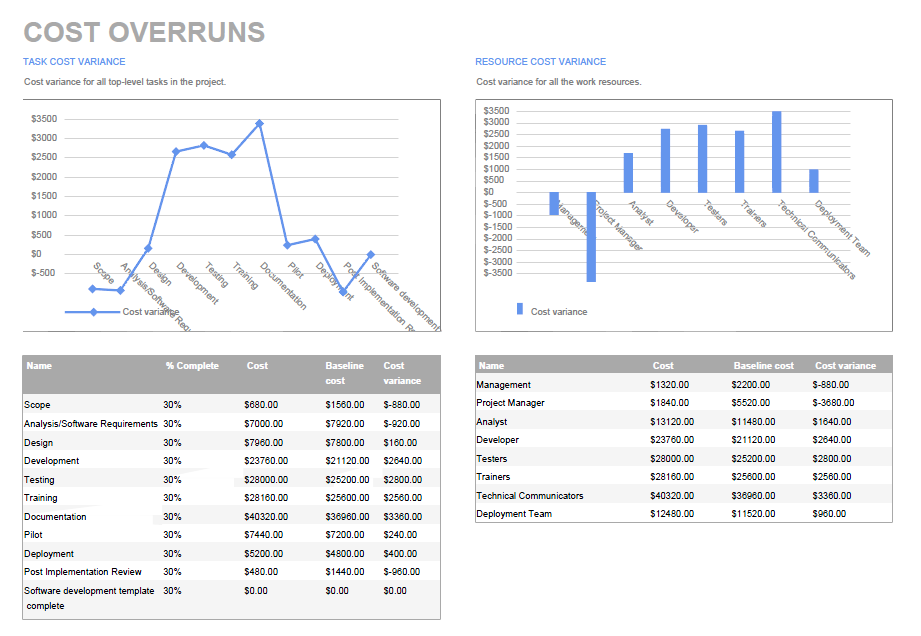

Cost Overruns

exported cost overruns report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Software Development.mpp");
2project1->SaveReport(dataDir + u"CostOverruns_out.pdf", Aspose::Tasks::Visualization::ReportType::CostOverruns);

Examples-CPP-Miscellaneous-SaveCostOverrunsReport-SaveCostOverrunsReport.cpp hosted with ❤ by GitHub

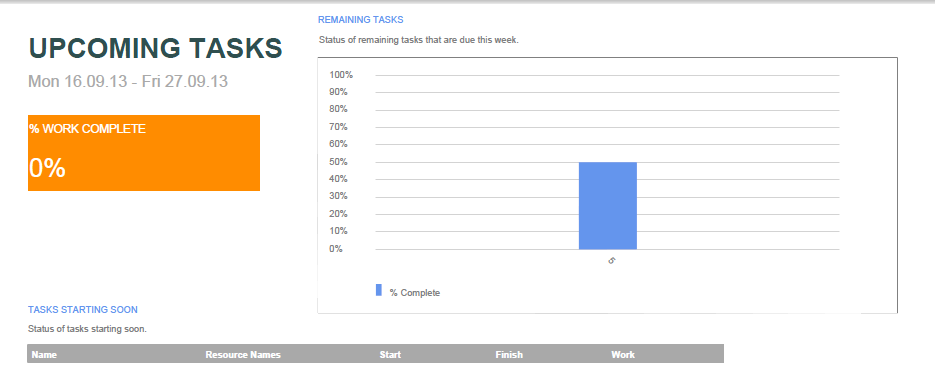

Upcoming Task

exported upcoming task report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"UpcomingTasks.mpp");
2project1->SaveReport(dataDir + u"UpcomingTasks_out.pdf", Aspose::Tasks::Visualization::ReportType::UpcomingTask);

Examples-CPP-Miscellaneous-SaveUpcomingTasksReport-SaveUpcomingTasksReport.cpp hosted with ❤ by GitHub

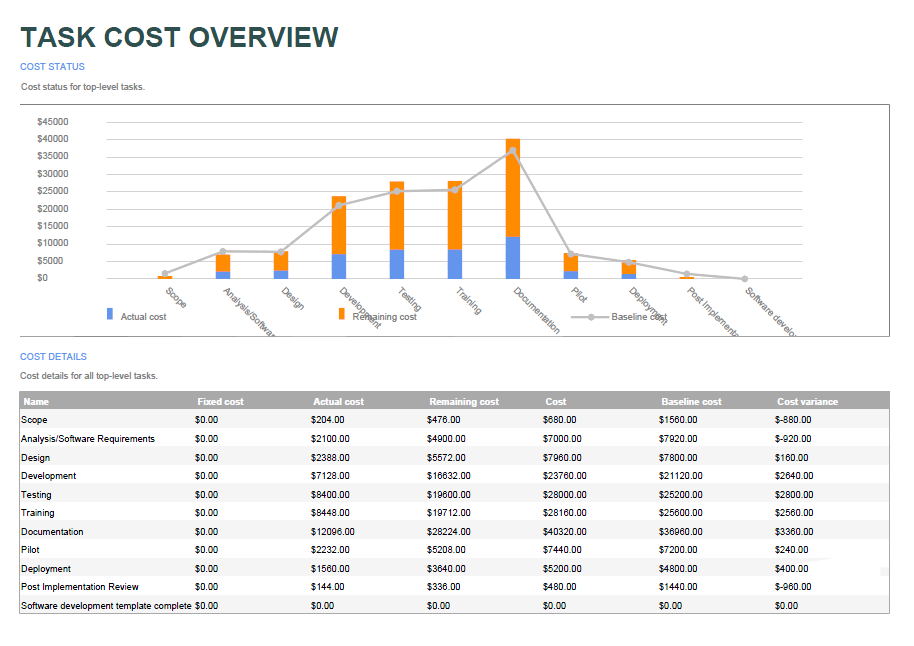

Task Cost Overview

exported task cost overview report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Software Development.mpp");
2project1->SaveReport(dataDir + u"TaskCostOverview_out.pdf", Aspose::Tasks::Visualization::ReportType::TaskCostOverview);

Examples-CPP-Miscellaneous-SaveTaskCostOverviewReport-SaveTaskCostOverviewReport.cpp hosted with ❤ by GitHub

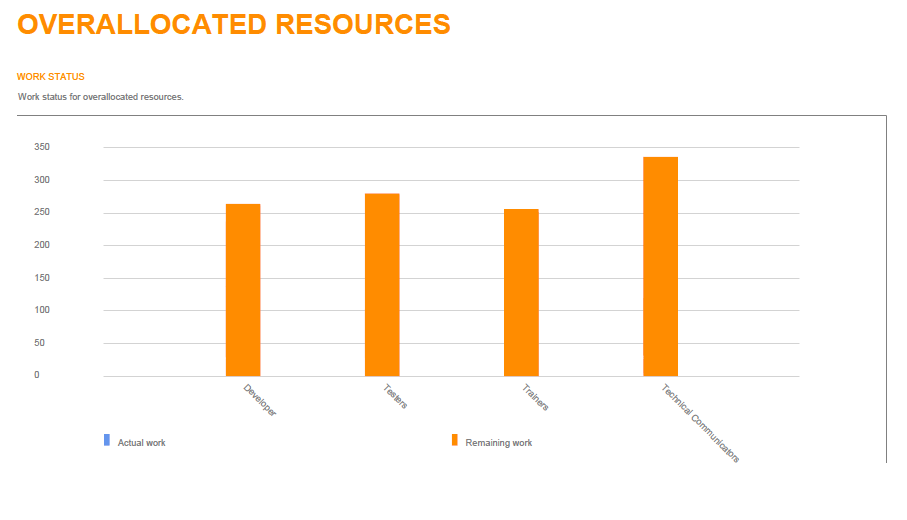

Over-allocated Resources

exported over-allocated resources report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Software Development Plan.mpp");
2project1->SaveReport(dataDir + u"OverAllocatedResources_out.pdf", Aspose::Tasks::Visualization::ReportType::OverallocatedResources);

Examples-CPP-Miscellaneous-SaveOverallocatedResourcesReport-SaveOverallocatedResourcesReport.cpp hosted with ❤ by GitHub

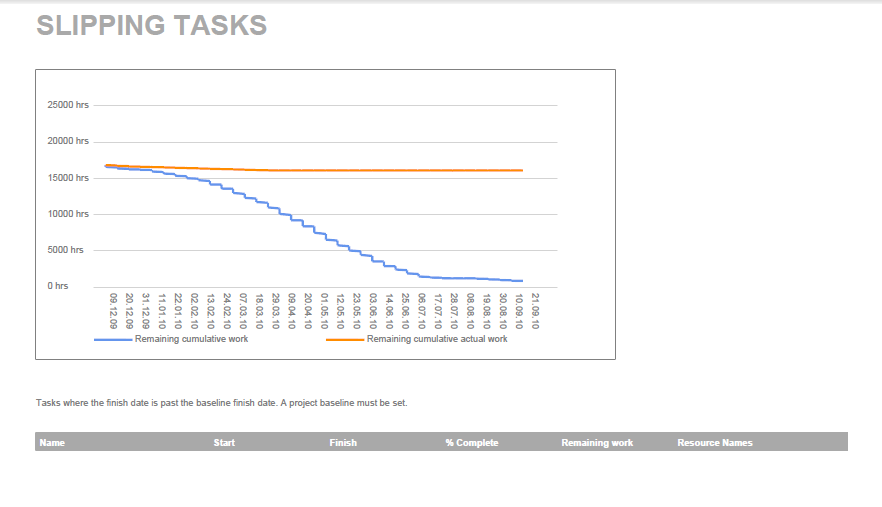

Slipping Tasks

exported slipping report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Homemoveplan.mpp");
2project1->SaveReport(dataDir + u"SlippingTasks_out.pdf", Aspose::Tasks::Visualization::ReportType::SlippingTasks);

Examples-CPP-Miscellaneous-SaveSlippingTasksReport-SaveSlippingTasksReport.cpp hosted with ❤ by GitHub

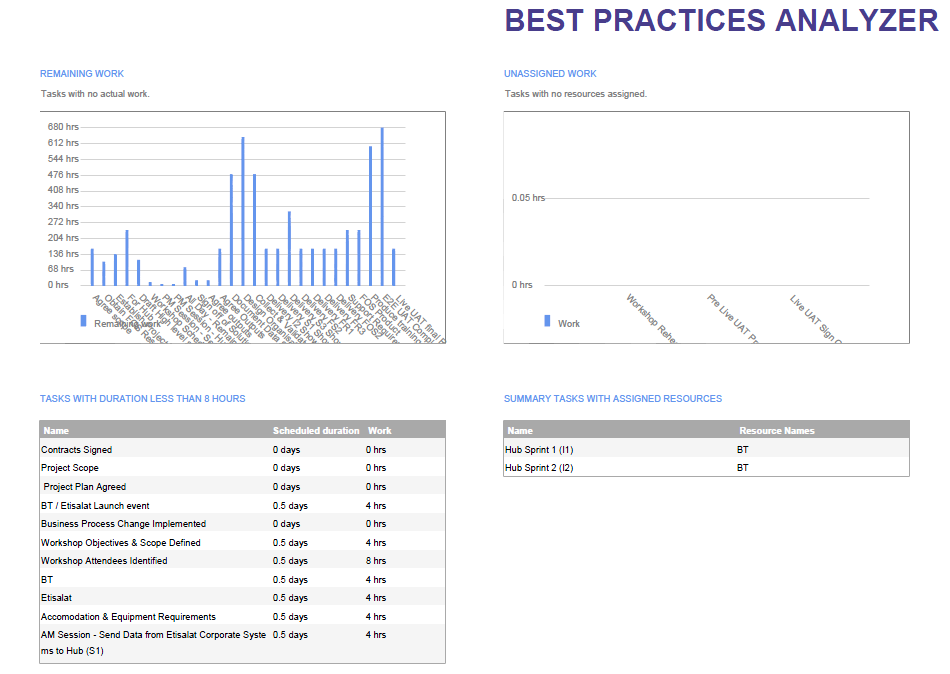

Best Practice Analyzer

exported best practice report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Cyclic stucture.mpp");
2project1->SaveReport(dataDir + u"BestPracticeAnalyzer_out.pdf", Aspose::Tasks::Visualization::ReportType::BestPracticeAnalyzer);

Examples-CPP-Miscellaneous-SaveBestPracticeAnalyzerReport-SaveBestPracticeAnalyzerReport.cpp hosted with ❤ by GitHub

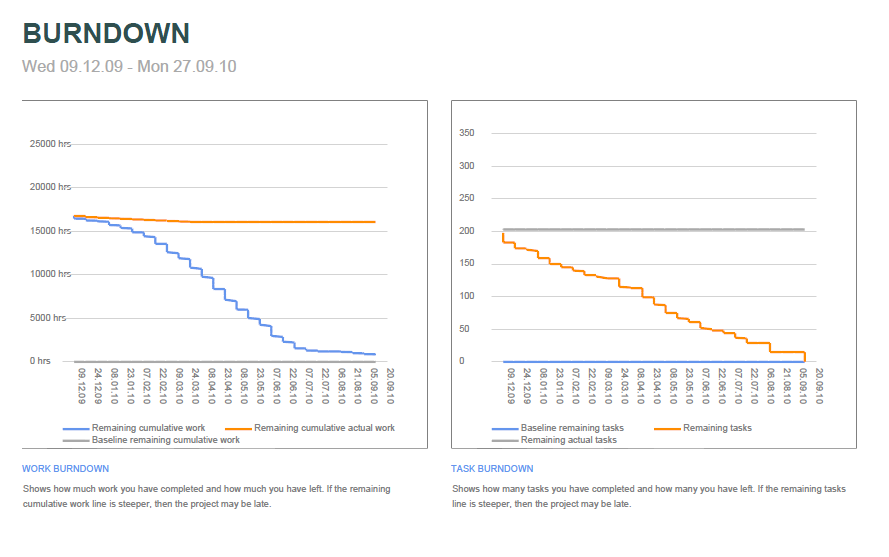

Burn Down

exported practice analyzer report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Homemoveplan.mpp");
2project1->SaveReport(dataDir + u"Burndown_out.pdf", Aspose::Tasks::Visualization::ReportType::Burndown);

Examples-CPP-Miscellaneous-SaveBurnDownReport-SaveBurnDownReport.cpp hosted with ❤ by GitHub

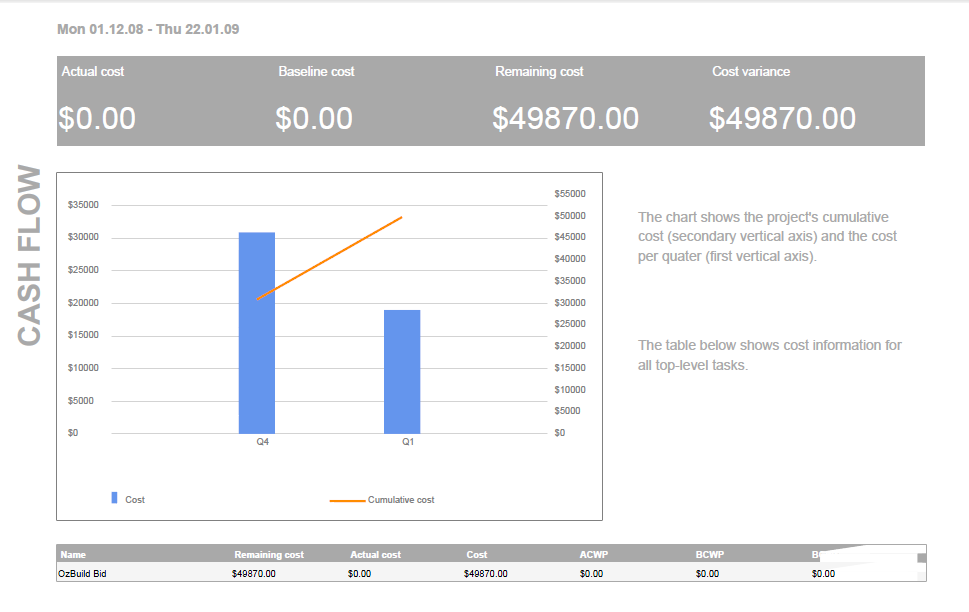

Cash Flow

exported burndown report example C++

1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"OzBuild 16 Orig.mpp");
2project1->SaveReport(dataDir + u"CashFlow_out.pdf", Aspose::Tasks::Visualization::ReportType::CashFlow);

Examples-CPP-Miscellaneous-SaveCashFlowReport-SaveCashFlowReport.cpp hosted with ❤ by GitHub
