プロジェクトの拡張属性
Microsoft Projectには、プロジェクトファイルを使用したアプリケーションとプログラミングの間の情報を交換できる広範なXMLデータインターチェンジスキーマがあります。スキーマを使用すると、タスク、リソース、および割り当てに拡張属性を追加できます。この記事では、Aspose.Tasks を使用して拡張属性を使用する方法を示します。
Microsoft Projectを使用してカスタムフィールドを操作する
この例では、情報をタスクに関連付けるためのプロジェクトのText1拡張属性を使用する方法を示します。

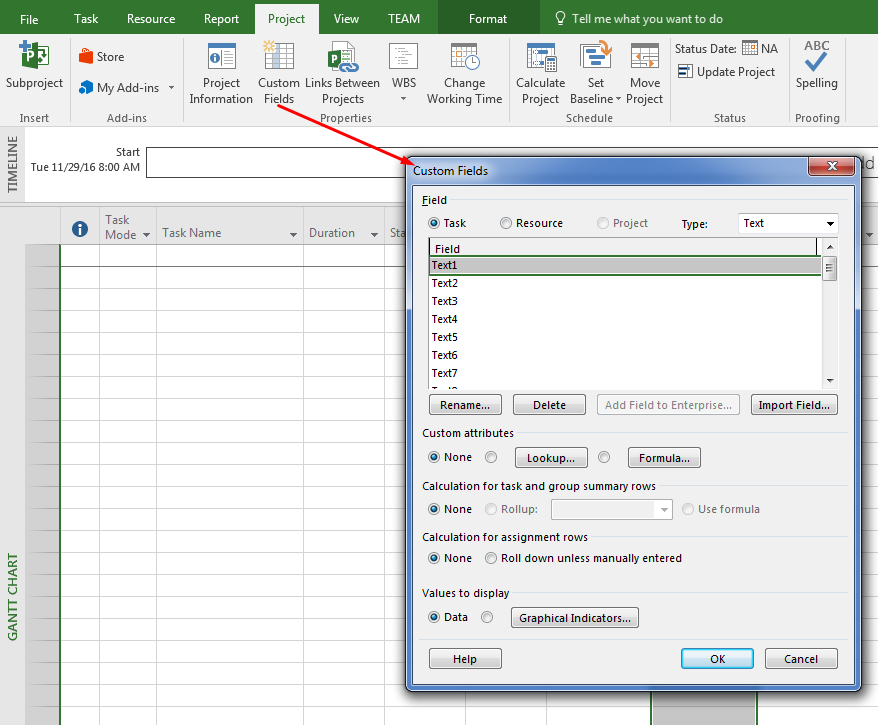

- MSPで、Project-> Custom Fieldsに移動します。
- ここから、タスクを選択します。
- タイプコンボボックスからカスタムフィールドタイプとしてテキストを選択します。
- あなたが一緒に作業したいカスタムフィールドとしてtext1を選択します
- 「名前を変更」ボタンを使用して、必要に応じてフィールドのエイリアスを変更し、[OK]ボタンを押します
- 新しいタスクを追加し、上記のステップで使用したカスタムフィールドでタスク行に新しい列を挿入します
c ++ apiのAspose.Tasksを使用して、カスタムフィールド/拡張属性の操作

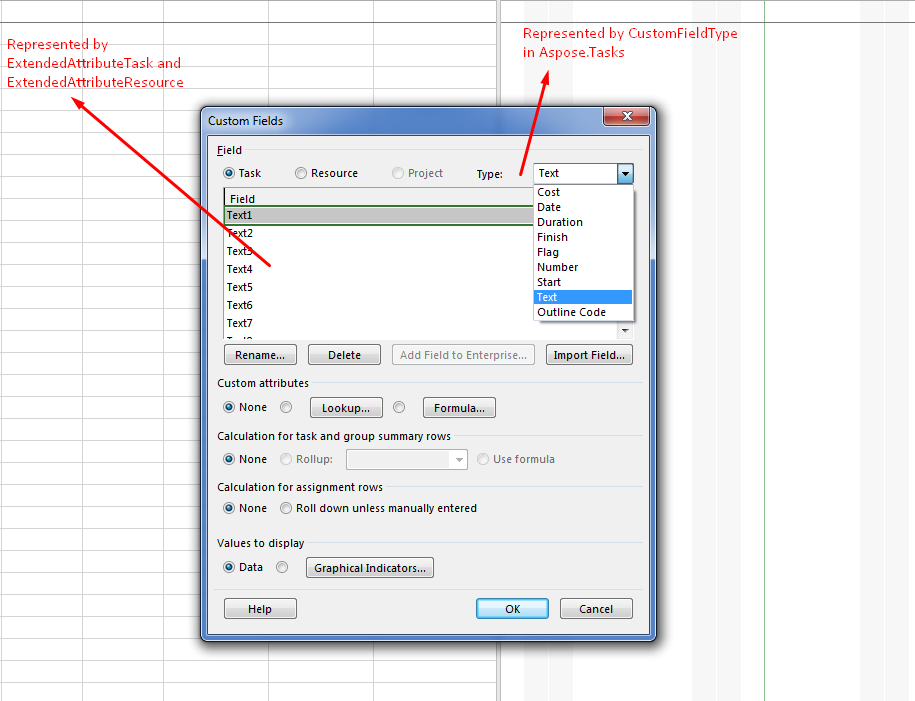

C ++ APIのAspose.Tasksは、新しい拡張属性を作成するだけでなく、ドキュメントに既に存在する拡張属性を操作する機能を提供します。カスタムフィールドまたは拡張属性は、Aspose.Tasksでのプロジェクトの拡張トリビュートコレクションによって表されます。プロジェクトドキュメントのすべての拡張属性定義が含まれています。 MSPカスタムフィールド定義のマッピングの一部は、下の画像に示すように示されています。
新しい拡張属性を作成してタスクに追加する
タスクまたはリソースの新しい拡張属性を追加するには、最初に拡張属性定義をextendedattributesコレクションに定義して追加する必要があります。 extendedAttributedefinitionクラスは、プロジェクトでの新しい拡張誘導を定義するために使用されます。 fieldIDは、拡張属性(タスクの場合)またはextendedattributeresource(リソースの場合)にリンクされた拡張属性を適切に定義するために設定する必要があります。次のサンプルコードは、プロジェクトのtext1フィールドの新しい拡張属性を定義する方法を示しています。拡張属性定義が完了したら、それから新しい拡張属性を作成してタスクに割り当てることができます。
1System::SharedPtr<Project> project1 = System::MakeObject<Project>(dataDir + u"Blank2010.mpp");
2
3System::SharedPtr<ExtendedAttributeDefinition> myTextAttributeDefinition = project1->get_ExtendedAttributes()->GetById((int32_t)Aspose::Tasks::ExtendedAttributeTask::Text1);
4
5// If the Custom field doesn't exist in Project, create it
6if (myTextAttributeDefinition == nullptr)
7{
8 myTextAttributeDefinition = ExtendedAttributeDefinition::CreateTaskDefinition(Aspose::Tasks::ExtendedAttributeTask::Text1, u"My text field");
9 project1->get_ExtendedAttributes()->Add(myTextAttributeDefinition);
10}
11
12// Generate Extended Attribute from definition
13System::SharedPtr<ExtendedAttribute> text1TaskAttribute = myTextAttributeDefinition->CreateExtendedAttribute();
14
15text1TaskAttribute->set_TextValue(u"Text attribute value");
16
17// Add extended attribute to task
18System::SharedPtr<Task> tsk = project1->get_RootTask()->get_Children()->Add(u"Task 1");
19tsk->get_ExtendedAttributes()->Add(text1TaskAttribute);
20
21project1->Save(dataDir + u"CreateExtendedAttributes_out.mpp", Aspose::Tasks::Saving::SaveFileFormat::MPP);
Writing Updated Extended Attribute Definitions and Values to MPP
Aspose.Tasks for C++ API supports updating extended attribute data in a Microsoft Project MPP file and save it back.
The code example given below demonstrates how to add new extended attributes of the Resource and Task types to the source MPP file. The steps involved in this activity are:
- Create an instance of Project Reader.
- Read the source MPP file.
- Define a new extended attribute and update its values.
- Save the project using the Project Writer.
The following example shows setting the extended attributes of a resource.
1System::SharedPtr<Project> project = System::MakeObject<Project>(dataDir + u"WriteUpdatedExtendedAttributeDefinitions.mpp");
2
3
4// C# preprocessor directive: #region task attributes
5
6
7// Add new text3 extended attribute with lookup and one lookup value
8System::SharedPtr<ExtendedAttributeDefinition> taskTextAttributeDefinition = ExtendedAttributeDefinition::CreateLookupTaskDefinition(Aspose::Tasks::ExtendedAttributeTask::Text3, u"New text3 attribute");
9taskTextAttributeDefinition->set_ElementType(Aspose::Tasks::ElementType::Task);
10project->get_ExtendedAttributes()->Add(taskTextAttributeDefinition);
11
12System::SharedPtr<Value> textVal = System::MakeObject<Value>();
13textVal->set_Id(1);
14textVal->set_Description(u"Text value descr");
15textVal->set_Val(u"Text value1");
16
17taskTextAttributeDefinition->AddLookupValue(textVal);
18
19// Add new cost1 extended attribute with lookup and two cost values
20System::SharedPtr<ExtendedAttributeDefinition> taskCostAttributeDefinition = ExtendedAttributeDefinition::CreateLookupTaskDefinition(Aspose::Tasks::ExtendedAttributeTask::Cost1, u"New cost1 attribute");
21project->get_ExtendedAttributes()->Add(taskCostAttributeDefinition);
22
23System::SharedPtr<Value> costVal1 = System::MakeObject<Value>();
24costVal1->set_Id(2);
25costVal1->set_Description(u"Cost value 1 descr");
26costVal1->set_Val(u"99900");
27
28System::SharedPtr<Value> costVal2 = System::MakeObject<Value>();
29costVal2->set_Id(3);
30costVal2->set_Description(u"Cost value 2 descr");
31costVal2->set_Val(u"11100");
32
33taskCostAttributeDefinition->AddLookupValue(costVal1);
34taskCostAttributeDefinition->AddLookupValue(costVal2);
35
36// Add new task and assign attribute lookup value.
37System::SharedPtr<Task> task = project->get_RootTask()->get_Children()->Add(u"New task");
38
39System::SharedPtr<ExtendedAttribute> taskAttr = taskCostAttributeDefinition->CreateExtendedAttribute(costVal1);
40task->get_ExtendedAttributes()->Add(taskAttr);
41
42System::SharedPtr<ExtendedAttributeDefinition> taskStartAttributeDefinition = ExtendedAttributeDefinition::CreateLookupTaskDefinition(Aspose::Tasks::ExtendedAttributeTask::Start7, u"New start 7 attribute");
43
44System::SharedPtr<Value> startVal = System::MakeObject<Value>();
45startVal->set_Id(4);
46startVal->set_DateTimeValue(System::DateTime::get_Now());
47startVal->set_Description(u"Start 7 value description");
48
49taskStartAttributeDefinition->AddLookupValue(startVal);
50
51project->get_ExtendedAttributes()->Add(taskStartAttributeDefinition);
52
53System::SharedPtr<ExtendedAttributeDefinition> taskFinishAttributeDefinition = ExtendedAttributeDefinition::CreateLookupTaskDefinition(Aspose::Tasks::ExtendedAttributeTask::Finish4, u"New finish 4 attribute");
54
55System::SharedPtr<Value> finishVal = System::MakeObject<Value>();
56finishVal->set_Id(5);
57finishVal->set_DateTimeValue(System::DateTime::get_Now());
58finishVal->set_Description(u"Finish 4 value description");
59
60taskFinishAttributeDefinition->get_ValueList()->Add(finishVal);
61
62project->get_ExtendedAttributes()->Add(taskFinishAttributeDefinition);
63
64System::SharedPtr<ExtendedAttributeDefinition> numberAttributeDefinition = ExtendedAttributeDefinition::CreateLookupTaskDefinition(Aspose::Tasks::ExtendedAttributeTask::Number20, u"New number attribute");
65
66System::SharedPtr<Value> val1 = System::MakeObject<Value>();
67val1->set_Id(6);
68val1->set_Val(u"1");
69val1->set_Description(u"Number 1 value");
70System::SharedPtr<Value> val2 = System::MakeObject<Value>();
71val2->set_Id(7);
72val2->set_Val(u"2");
73val2->set_Description(u"Number 2 value");
74System::SharedPtr<Value> val3 = System::MakeObject<Value>();
75val2->set_Id(8);
76val3->set_Val(u"3");
77val3->set_Description(u"Number 3 value");
78
79numberAttributeDefinition->AddLookupValue(val1);
80numberAttributeDefinition->AddLookupValue(val2);
81numberAttributeDefinition->AddLookupValue(val3);
82
83project->get_ExtendedAttributes()->Add(numberAttributeDefinition);
84
85
86// C# preprocessor directive: #endregion
87
88
89System::SharedPtr<ExtendedAttributeDefinition> rscStartAttributeDefinition = ExtendedAttributeDefinition::CreateLookupResourceDefinition(Aspose::Tasks::ExtendedAttributeResource::Start5, u"New start5 attribute");
90
91System::SharedPtr<Value> startVal2 = System::MakeObject<Value>();
92startVal2->set_Id(9);
93startVal2->set_DateTimeValue(System::DateTime::get_Now());
94startVal2->set_Description(u"this is start5 value descr");
95
96rscStartAttributeDefinition->AddLookupValue(startVal2);
97
98project->get_ExtendedAttributes()->Add(rscStartAttributeDefinition);
99
100// Define a duration attribute without lookup.
101System::SharedPtr<ExtendedAttributeDefinition> taskDurationAttributeDefinition = ExtendedAttributeDefinition::CreateTaskDefinition(Aspose::Tasks::ExtendedAttributeTask::Duration1, u"New Duration");
102project->get_ExtendedAttributes()->Add(taskDurationAttributeDefinition);
103
104// Add new task and assign duration value to the previously defined duration attribute.
105System::SharedPtr<Task> timeTask = project->get_RootTask()->get_Children()->Add(u"New task");
106
107System::SharedPtr<ExtendedAttribute> durationExtendedAttribute = taskDurationAttributeDefinition->CreateExtendedAttribute();
108
109durationExtendedAttribute->set_DurationValue(project->GetDuration(3.0, Aspose::Tasks::TimeUnitType::Hour));
110timeTask->get_ExtendedAttributes()->Add(durationExtendedAttribute);
111
112System::SharedPtr<MPPSaveOptions> mppSaveOptions = System::MakeObject<MPPSaveOptions>();
113mppSaveOptions->set_WriteViewData(true);
114
115// Save the project as MPP project file
116project->Save(dataDir + u"WriteUpdatedExtendedAttributeDefinitions_out.mpp", mppSaveOptions);
