Wie man mit C++ ein Kombidiagramm erstellt

Mögliche Verwendungsszenarien

Kombinationsdiagramme in Excel ermöglichen es Ihnen, diese Option zu nutzen, da Sie problemlos zwei oder mehr Diagrammtypen kombinieren können, um Ihre Daten verständlich zu machen. Kombinationsdiagramme sind hilfreich, wenn Ihre Daten verschiedene Arten von Werten enthalten, einschließlich Preis und Volumen. Darüber hinaus sind Kombinationsdiagramme sinnvoll, wenn sich Ihre Datenwerte von Serie zu Serie stark ändern.

todo:image_alt_text

Kombinationsdiagramm

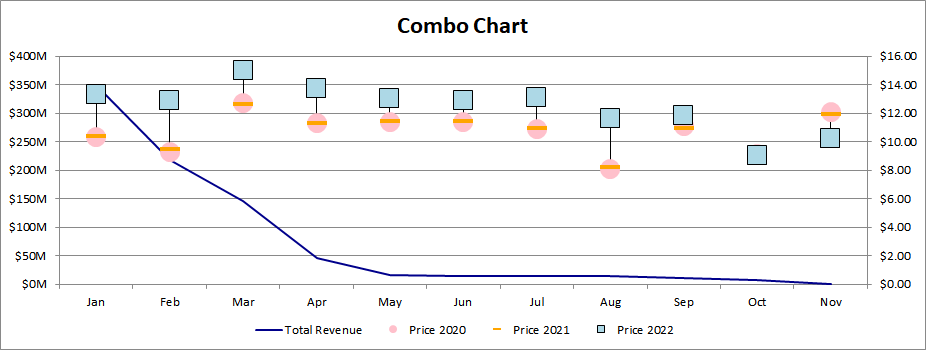

Nach Ausführung des unten stehenden Codes sehen Sie das Kombinationsdiagramm wie unten gezeigt.

todo:image_alt_text

Beispielcode

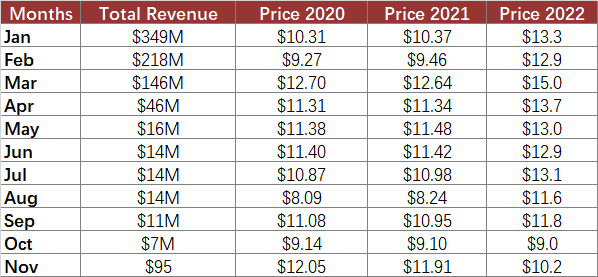

Der folgende Beispielscode lädt die Beispieldatei und erstellt die Ausgabedatei.

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Create the workbook
    Workbook workbook(u"combo.xlsx");

    // Access the first worksheet
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Add a stock volume (VHLC) chart
    int32_t pieIdx = worksheet.GetCharts().Add(ChartType::StockVolumeHighLowClose, 15, 0, 34, 12);

    // Retrieve the Chart object
    Chart chart = worksheet.GetCharts().Get(pieIdx);

    // Set the legend to be shown
    chart.SetShowLegend(true);

    // Set the chart title
    chart.GetTitle().SetText(u"Combo Chart");

    // Set the Legend position to bottom of the chart area
    chart.GetLegend().SetPosition(LegendPositionType::Bottom);

    // Set data range
    chart.SetChartDataRange(u"A1:E12", true);

    // Set category data
    chart.GetNSeries().GetCategoryData() = u"A2:A12";

    // Set the Series[1], Series[2], and Series[3] to different Marker Styles
    for (int32_t j = 0; j < chart.GetNSeries().GetCount(); j++)
    {
        switch (j)
        {
            case 1:
                chart.GetNSeries().Get(j).GetMarker().SetMarkerStyle(ChartMarkerType::Circle);
                chart.GetNSeries().Get(j).GetMarker().SetMarkerSize(15);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetFormatting(FormattingType::Custom);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetForegroundColor(Color::Pink());
                chart.GetNSeries().Get(j).GetBorder().SetIsVisible(false);
                break;
            case 2:
                chart.GetNSeries().Get(j).GetMarker().SetMarkerStyle(ChartMarkerType::Dash);
                chart.GetNSeries().Get(j).GetMarker().SetMarkerSize(15);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetFormatting(FormattingType::Custom);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetForegroundColor(Color::Orange());
                chart.GetNSeries().Get(j).GetBorder().SetIsVisible(false);
                break;
            case 3:
                chart.GetNSeries().Get(j).GetMarker().SetMarkerStyle(ChartMarkerType::Square);
                chart.GetNSeries().Get(j).GetMarker().SetMarkerSize(15);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetFormatting(FormattingType::Custom);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetForegroundColor(Color::LightBlue());
                chart.GetNSeries().Get(j).GetBorder().SetIsVisible(false);
                break;
        }
    }

    // Set the chart type for Series[0]
    chart.GetNSeries().Get(0).SetType(ChartType::Line);

    // Set style for the border of the first series
    chart.GetNSeries().Get(0).GetBorder().SetStyle(LineType::Solid);

    // Set color for the first series
    chart.GetNSeries().Get(0).GetBorder().SetColor(Color::DarkBlue());

    // Fill the PlotArea area with nothing
    chart.GetPlotArea().GetArea().SetFormatting(FormattingType::None);

    // Save the Excel file
    workbook.Save(u"out.xlsx");

    Aspose::Cells::Cleanup();
}
