Gestionar títulos de gráficos de Excel con C++
En los gráficos de Excel, hay 2 tipos de títulos:
- Título del Gráfico
- Títulos de Ejes

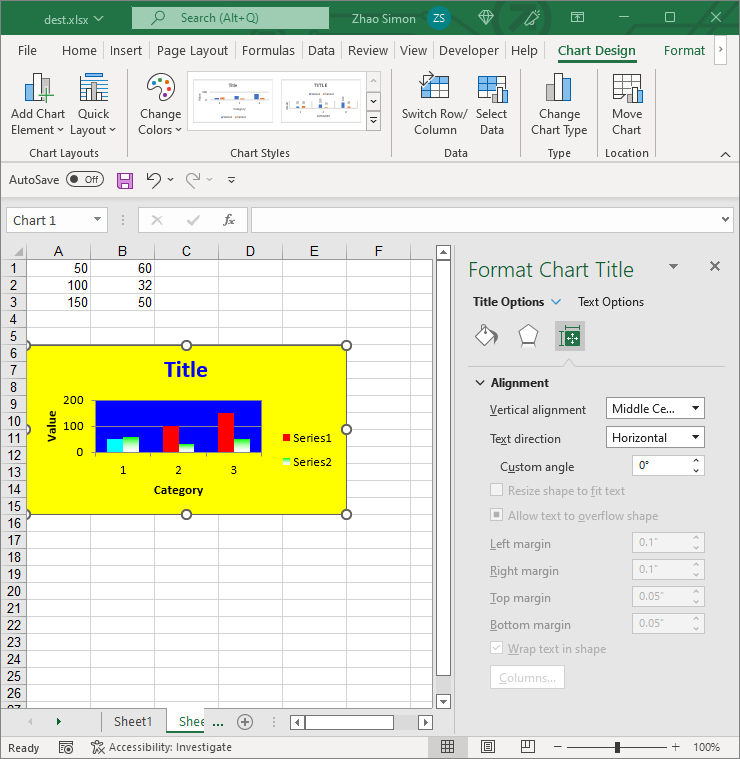

Opciones de Títulos
Aspose.Cells también permite gestionar los títulos de los gráficos en tiempo de ejecución. Con el objeto Title, puede cambiar el texto, la fuente y el formato de relleno de los títulos.
||
Configuración de los Títulos de Gráficos o Ejes
Puede usar Microsoft Excel para establecer los títulos de un gráfico y sus ejes en un entorno WYSIWYG. Aspose.Cells también permite a los desarrolladores establecer los títulos de un gráfico y sus ejes en tiempo de ejecución. Todos los gráficos y sus ejes contienen una propiedad Title que puede usarse para establecer sus títulos, como se muestra en el ejemplo a continuación.
El siguiente fragmento de código demuestra cómo establecer títulos para gráficos y ejes.
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
using namespace Aspose::Cells::Charts;
using namespace Aspose::Cells::Drawing;
int main()
{
Aspose::Cells::Startup();
// Source directory path
U16String srcDir(u"..\\Data\\01_SourceDirectory\\");
// Output directory path
U16String outDir(u"..\\Data\\02_OutputDirectory\\");
// Instantiating a Workbook object
Workbook workbook;
// Adding a new worksheet to the Workbook object
int sheetIndex = workbook.GetWorksheets().Add();
// Obtaining the reference of the newly added worksheet by passing its sheet index
Worksheet worksheet = workbook.GetWorksheets().Get(sheetIndex);
// Adding sample values to cells
worksheet.GetCells().Get(u"A1").PutValue(50);
worksheet.GetCells().Get(u"A2").PutValue(100);
worksheet.GetCells().Get(u"A3").PutValue(150);
worksheet.GetCells().Get(u"B1").PutValue(60);
worksheet.GetCells().Get(u"B2").PutValue(32);
worksheet.GetCells().Get(u"B3").PutValue(50);
// Adding a chart to the worksheet
int chartIndex = worksheet.GetCharts().Add(ChartType::Column, 5, 0, 15, 5);
// Accessing the instance of the newly added chart
Chart chart = worksheet.GetCharts().Get(chartIndex);
// Adding SeriesCollection (chart data source) to the chart ranging from "A1" cell to "B3"
chart.GetNSeries().Add(u"A1:B3", true);
// Setting the foreground color of the plot area
chart.GetPlotArea().GetArea().SetForegroundColor(Color::Blue());
// Setting the foreground color of the chart area
chart.GetChartArea().GetArea().SetForegroundColor(Color::Yellow());
// Setting the foreground color of the 1st SeriesCollection area
chart.GetNSeries().Get(0).GetArea().SetForegroundColor(Color::Red());
// Setting the foreground color of the area of the 1st SeriesCollection point
chart.GetNSeries().Get(0).GetPoints().Get(0).GetArea().SetForegroundColor(Color::Cyan());
// Filling the area of the 2nd SeriesCollection with a gradient
chart.GetNSeries().Get(1).GetArea().GetFillFormat().SetOneColorGradient(Color::Lime(), 1, GradientStyleType::Horizontal, 1);
// Setting the title of a chart
chart.GetTitle().SetText(u"Title");
// Setting the font color of the chart title to blue
chart.GetTitle().GetFont().SetColor(Color::Blue());
// Setting the title of category axis of the chart
chart.GetCategoryAxis().GetTitle().SetText(u"Category");
// Setting the title of value axis of the chart
chart.GetValueAxis().GetTitle().SetText(u"Value");
// Saving the Excel file
workbook.Save(outDir + u"book1.out.xls");
std::cout << "Chart created successfully!" << std::endl;
Aspose::Cells::Cleanup();
}
